Outdoor Moving Lights
ASTRABEAM260IP
385x603x271mm
Size
17ch
DMX Channels
Seetronic powerCON TRUE IP65 IN
Power Consumption
28,6kg
Weight
Experience the
ASTRABEAM260IP
Light Show
| Source | 260W PRO OSRAM SIRIUS HRI Lamp |
|---|---|
| Source CCT | 7.800K |
| Lux | 1'984'000lx @5 m |
| Source life expectancy | 6.000 h |
| Beam angle | 2° |
| Lens diameter | 140mm |
| Lens type | HD anti-reflection lenses with achromatic coating |
| Focus | motorised 16-bit |
| CCT | on wheel 2.500 K and 3.200 K + CTB |
| Colour wheel | 10 colour filters |
| Control Resolution | 16-bit dimmer control |
| FX generator | 2 prisms overlap for spectacular aerial effects |
| Circular prism | 8-f with bi-directional rotation, indexing |
| Linear prism | 6-f with bi-directional rotation, indexing |
| Frost | linear 0-100% |
| Fixed gobos | 15 fixed gobos + open |
| Supported Protocols | DMX512, RDM, Art-Net, sACN, W-DMX |
| DMX channels | 17ch |
| RDM | for remote addressing and parameter configuration |
| Display | LCD high resolution colour display with autoflip |
| Pan | 540° - 16-bit resolution |
| Tilt | 230° - 16-bit resolution |
| Position feedback | automatic repositioning after external movement |
| Dimmer | linear 0 - 100% mechanical dimmer |
| Strobe / shutter | 1 - 28 flash(s), mechanical |
| Display battery | included, self-charging battery backup |
| Firmware upgrade | via menu with internal memory or via USB - DMX interface (UPBOXPRO/UPBOX2) not included |
| Power connection | Seetronic powerCON TRUE IP65 IN |
| Signal connection | Seetronic XLR 5p IN/OUT connectors |
| Wireless Connection | integrated LumenRadio TiMo FX RDM - CRMX and W-DMX compatible |
| Mains power supply | 100-240V - 50/60Hz |
| Max power consumption (230V) | 345W |
| Output (at 230V) | 7 units on a single power line |
| Power factor | 0,96 |
| IP rating | IP65 for temporary outdoor use (*) |
| Cooling | filtered forced-air with low-noise fan |
| Housing | Weatherproof IP65 construction |
| Finish | black (RAL 9004) |
| Operating temperature | Ta -20 to +45 °C (-4 to +113 °F) |
| Dimensions (WxHxD) | 385x603x271mm |
| Weight | 28,6kg |
| Suspension and fixing | any position with quick-lock omega brackets |
| Hardware on-board | sockets for quick-Lock Omega bracket (clamp not included) |
| Compliance | CE, UKCA, RCM, cTUVus, FCC |
| NOTE | Suitable for permanent outdoor use, provided installation and maintenance cycles by qualified technicians are carried. |
No downloads available yet.
Explore Similar
Products
Ready to Transform Your Space?
DELIVERY
For orders above AED 1,000
WARRANTY
2 years
SECURE PAYMENT
Safe encrypted checkup
EXPERT SUPPORT
Pre and post sale support

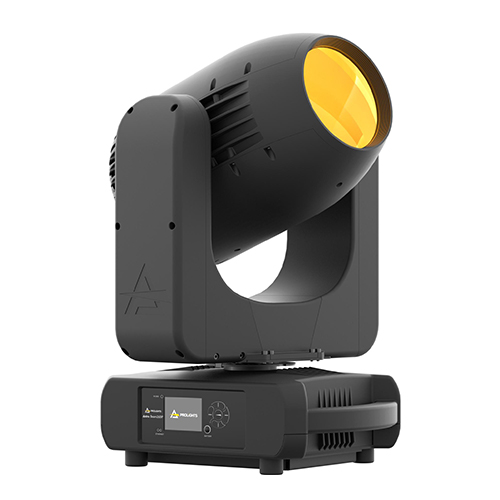

Astra Beam260IP is a compact outdoor IP65 beam moving head with a long lamp life source, engineered to produce a sharp and parallel beam of light with a boosted light output, thanks to its brand new 260W Osram SIRIUS HRI PRO arc lamp. Astra Beam260IP is smaller, brighter and faster than any other IP pure beamlight on the market, and when compared to indoor alternatives it requires less maintenance time and extra costs, due to the sealed housing and outstanding long lamp life (6.000 hours). In addition, with its compact size and at an attractive price point, this luminaire is ideal even for indoor applications.
Astra Beam260IP is a compact outdoor IP65 beam moving head with a long lamp life source, engineered to produce a sharp and parallel beam of light with a boosted light output, thanks to its brand new 260W Osram SIRIUS HRI PRO arc lamp. Astra Beam260IP is smaller, brighter and faster than any other IP pure beamlight on the market, and when compared to indoor alternatives it requires less maintenance time and extra costs, due to the sealed housing and outstanding long lamp life (6.000 hours). In addition, with its compact size and at an attractive price point, this luminaire is ideal even for indoor applications.
Features:IP65 design, compact size and fast movements
260W PRO Osram SIRIUS HRI long life (6.000 hours) lamp
Two overlapping prism to create spectacular aerial effects
LIGHT SOURCE
- Source:260WPRO OSRAM SIRIUS HRI Lamp
- Source CCT:7.800K
- Lux:1'984'000lx@5 m
- Source life expectancy:6.000 h
OPTICS
- Beam angle:2°
- Lens diameter:140mm
- Lens type:HD anti-reflection lenses with achromatic coating
- Focus:motorised 16-bit
COLOUR SYSTEM
- CCT:on wheel 2.500 K and 3.200 K + CTB
- Colour wheel:10colour filters
DYNAMIC EFFECTS
- Control Resolution:16-bit dimmer control
- FX generator:2prisms overlap for spectacular aerial effects
- Circular prism:8-fwith bi-directional rotation, indexing
- Linear prism:6-fwith bi-directional rotation, indexing
- Frost:linear 0-100%
GOBOS
- Fixed gobos:15fixed gobos + open
CONTROL
- Supported Protocols:DMX512, RDM, Art-Net, sACN, W-DMX
- DMX channels:17ch
- RDM:for remote addressing and parameter configuration
- Display:LCD high resolution colour display with autoflip
MOVEMENT
- Pan:540°- 16-bit resolution
- Tilt:230°- 16-bit resolution
- Position feedback:automatic repositioning after external movement
ELECTRONICS
- Dimmer:linear 0 - 100% mechanical dimmer
- Strobe / shutter:1 - 28flash(s), mechanical
- Display battery:included, self-charging battery backup
- Firmware upgrade:via menu with internal memory or via USB - DMX interface (UPBOXPRO/UPBOX2) not included
CONNECTIONS
- Power connection:Seetronic powerCON TRUE IP65 IN
- Signal connection:Seetronic XLR 5p IN/OUT connectors
- Wireless Connection:integrated LumenRadio TiMo FX RDM - CRMX and W-DMX compatible
ELECTRICAL
- Mains power supply:100-240V - 50/60Hz
- Max power consumption (230V):345W
- Output (at 230V):7units on a single power line
- Power factor:0,96
PHYSICAL
- IP rating:IP65 for temporary outdoor use (*)
- Cooling:filtered forced-air with low-noise fan
- Housing:Weatherproof IP65 construction
- Finish:black (RAL 9004)
- Operating temperature:Ta-20 to +45 °C (-4 to +113 °F)
- Dimensions (WxHxD):385x603x271mm
- Weight:28,6kg
INSTALLATION
- Suspension and fixing:any position with quick-lock omega brackets
- Hardware on-board:sockets for quick-Lock Omega bracket (clamp not included)
CERTIFICATIONS / REPORTS
- Compliance:CE, UKCA, RCM, cTUVus, FCC
(*)
- NOTE:Suitable for permanent outdoor use, provided installation and maintenance cycles by qualified technicians are carried.
No reviews yet.
IP65 moving beam light with a 260W PRO long life lamp (6.000 hours)
Astra Beam260IP is a compact outdoor IP65 beam moving head with a long lamp life source, engineered to produce a sharp and parallel beam of light with a boosted light output, thanks to its brand new 260W Osram SIRIUS HRI PRO arc lamp. Astra Beam260IP is smaller, brighter and faster than any other IP pure beamlight on the market, and when compared to indoor alternatives it requires less maintenance time and extra costs, due to the sealed housing and outstanding long lamp life (6.000 hours). In addition, with its compact size and at an attractive price point, this luminaire is ideal even for indoor applications.
Main features:
- IP65 design, compact size and fast movements
- 260W PRO Osram SIRIUS HRI long life (6.000 hours) lamp
- Two overlapping prism to create spectacular aerial effects
