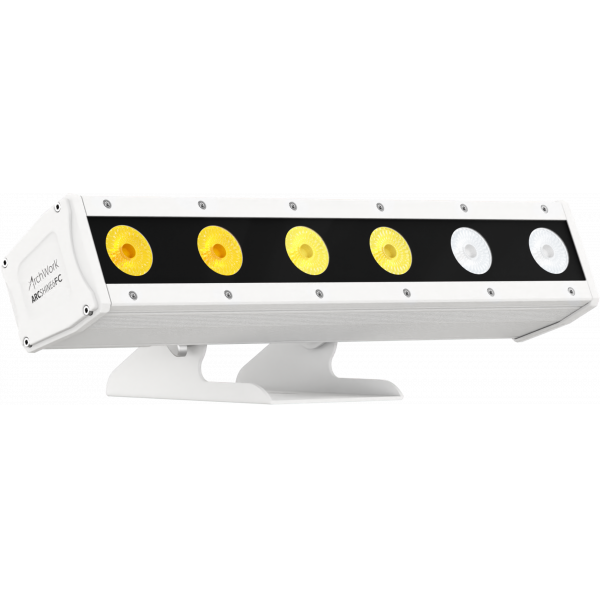

ARCSHINE6FC
Experience the
ARCSHINE6FC
Light Show
| Source | 6x8W RGBW LEDs |
|---|---|
| Luminous flux | 1'621 @Full |
| Lux | (16°) 704 lx - (21°) 387 lx - (42°) 95lx @5 m full |
| Source life expectancy | > 50.000 hrs (L70B10 @Ta 25° C / 77° F) |
| Beam angle | 16,4° |
| Field angle | 28,3° |
| Additional optics | 25° - 45° (optional) |
| Colour mixing | RGBW / FC |
| White presets | 3.200 K ~ 10.000K |
| Colour wheel | virtual colour wheel with macros |
| Macros | several pre-built macros with adjustable speed |
| Static mode | selection of static colour |
| Manual mode | manual adjustment of colour |
| Auto mode | built-in programs with execution speed adjustment |
| Supported Protocols | DMX512 |
| DMX channels | 4 / 6 / 10 / 24 / 29ch |
| Pixel control | pixel2pixel control |
| Display | touch - sensitive LED display |
| Master/Slave | for synchronised operation of more units linked in a chain |
| Dimmer | linear 0 - 100% electronic dimmer |
| Dimmer curves | 4 selectable dimming modes available |
| Strobe / shutter | 1 - 30 Hz, electronic |
| Firmware upgrade | via DMX with UPBOXPRO/UPBOX1 (not included) |
| Power connection | 1,8 m moulded IP signal IN/OUT connectors |
| Signal connection | 1,8 m moulded IP signal IN connector |
| Adaptors | XLR and BARE END 16A adaptors included |
| Mains power supply | 100-240V - 50/60Hz |
| Max power consumption (230V) | 52,5W |
| Output (at 230V) | 18 units on a single power line |
| Power factor | > 0.93 |
| IP rating | IP66 for outdoor installations |
| Cooling | pressure equalisation through GORE membrane vents |
| Housing | Sturdy die-cast aluminium body |
| Finish | white (RAL 9003) |
| Operating temperature | Ta -20 to +45 °C (-4 to +113 °F) |
| Dimensions (WxHxD) | 495x200x188mm |
| Weight | 5,33kg |
| Suspension and fixing | bracket for hanging and positioning |
| Compliance | CE, UKCA, RCM |
No downloads available yet.
Explore Similar
Products
Ready to Transform Your Space?
ArcShine 6 is a linear wall washer of 50 cm with 6x8W RGBW/FC LEDs source designed for outdoor installations where a high-performance linear projector with superb brightness and chromatic precision is required. The linear shape design and the slim profile allows the ArcShine 6 to be easily integrated into any architectural design both indoor and outdoor (IP66) due to the construction of chassis in die-cast aluminium and tempered glass. This linear luminaire also features individual pixel control of each emitters for extended dynamic and creative possibilities.
ArcShine 6 is a linear wall washer of 50 cm with 6x8W RGBW/FC LEDs source designed for outdoor installations where a high-performance linear projector with superb brightness and chromatic precision is required. The linear shape design and the slim profile allows the ArcShine 6 to be easily integrated into any architectural design both indoor and outdoor (IP66) due to the construction of chassis in die-cast aluminium and tempered glass. This linear luminaire also features individual pixel control of each emitters for extended dynamic and creative possibilities.
Features:6x8W RGBW/FC LEDs with pixel control
Slim profile and fanless
IP66 for outdoor installs
- Source:6x8WRGBW LEDs
- Luminous flux:1'621@Full
- Lux:(16°) 704 lx - (21°) 387 lx - (42°) 95lx@5 m full
- Source life expectancy:> 50.000 hrs (L70B10 @Ta 25° C / 77° F)
- Beam angle:16,4°
- Field angle:28,3°
- Additional optics:25° - 45° (optional)
- Colour mixing:RGBW / FC
- White presets:3.200 K ~ 10.000K
- Colour wheel:virtual colour wheel with macros
- Macros:several pre-built macros with adjustable speed
- Static mode:selection of static colour
- Manual mode:manual adjustment of colour
- Auto mode:built-in programs with execution speed adjustment
- Supported Protocols:DMX512
- DMX channels:4 / 6 / 10 / 24 / 29ch
- Pixel control:pixel2pixel control
- Display:touch - sensitive LED display
- Master/Slave:for synchronised operation of more units linked in a chain
- Dimmer:linear 0 - 100% electronic dimmer
- Dimmer curves:4selectable dimming modes available
- Strobe / shutter:1 - 30Hz, electronic
- Firmware upgrade:via DMX with UPBOXPRO/UPBOX1 (not included)
- Power connection:1,8 mmoulded IP signal IN/OUT connectors
- Signal connection:1,8 mmoulded IP signal IN connector
- Adaptors:XLR and BARE END 16A adaptors included
- Mains power supply:100-240V - 50/60Hz
- Max power consumption (230V):52,5W
- Output (at 230V):18units on a single power line
- Power factor:> 0.93
- IP rating:IP66 for outdoor installations
- Cooling:pressure equalisation through GORE membrane vents
- Housing:Sturdy die-cast aluminium body
- Finish:white (RAL 9003)
- Operating temperature:Ta-20 to +45 °C (-4 to +113 °F)
- Dimensions (WxHxD):495x200x188mm
- Weight:5,33kg
- Suspension and fixing:bracket for hanging and positioning
- Compliance:CE, UKCA, RCM
No reviews yet.
6x8W RGBW/FC outdoor IP66 linear fixture with pixel control
Main features:
- 6x8W RGBW/FC LEDs with pixel control
- Slim profile and fanless
- IP66 for outdoor installs
