ARCPOD48Q
Floods

ARCPOD48Q

584x304x93mm Size
5 / 7 / 10 / 17 / 22ch DMX Channels
1,8 m moulded IP power IN/OUT connectors Power Consumption
14kg Weight

Experience the
ARCPOD48Q
Light Show

Source 48x10W RGBW LEDs
Luminous flux (10°) 18'421 lm; (15°) 22'977 lm; (25°) 20'741 lm; (45°) 16'408 @Full
Lux (10°) 37'370 lx; (15°) 30'888 lx; (25°) 12'884 lx; (45°) 2'739lx @3 m full
Lux (10°) 13'453 lx; (15°) 11'120 lx; (25°) 4'638 lx; (45°) 986lx @5 m full
Source life expectancy > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
Beam angle 15°
Field angle 27°
Additional optics 10° - 25° - 45° (optional) - see available accessories
Colour mixing RGBW / FC
CCT CCT control through dedicated DMX channel
White presets 2.800 K ~ 10.000K
Colour wheel virtual colour wheel with macros
Macros several pre-built macros with adjustable speed
FX generator up to 4 linear controllable sections
Static mode selection of static colour
Supported Protocols DMX512, RDM
DMX channels 5 / 7 / 10 / 17 / 22ch
Pixel control up to 4 linear controllable sections
RDM for remote addressing and parameter configuration
Display user interface through DATAMASTER external coder (not included)
Master/Slave for synchronised operation of more units linked in a chain
Tilt 0 - 130° with manual adjustment
Dimmer linear 0 - 100% electronic dimmer
Dimmer curves 4 selectable dimming modes available
Strobe / shutter 1 ~ 30 Hz, electronic
Selectable PWM 600 to 25000 Hz (selectable steps)
Firmware upgrade via DMX with UPBOXPRO/UPBOX1 (not included)
Power connection 1,8 m moulded IP power IN/OUT connectors
Signal connection 1,8 m moulded IP signal IN connector
Adaptors XLR and BARE END 16A adaptors included
Mains power supply 100-240V - 50/60Hz
Max power consumption (230V) 540W
Output (at 230V) 4 units on a single power line
Power factor 0,95
IP rating IP66 for outdoor installations
IK rating IK08 impact rating
Cooling fan-free with natural convection
Housing Sturdy die-cast aluminium body
Finish basalt grey (RAL 7012), also available with C5-M marine grade coating
Operating temperature Ta -20 to +45 °C (-4 to +113 °F)
Dimensions (WxHxD) 584x304x93mm
Weight 14kg
Compliance CE, UKCA, RCM, cTUVus, FCC

No downloads available yet.

ARCPOD48Q

Explore Similar
Products

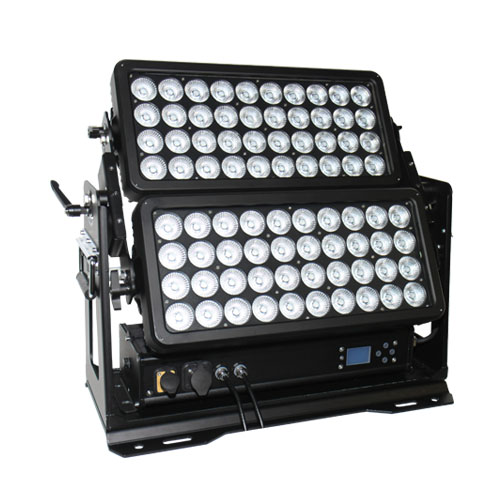

VW-8004
Order Code VW-8004 View Details

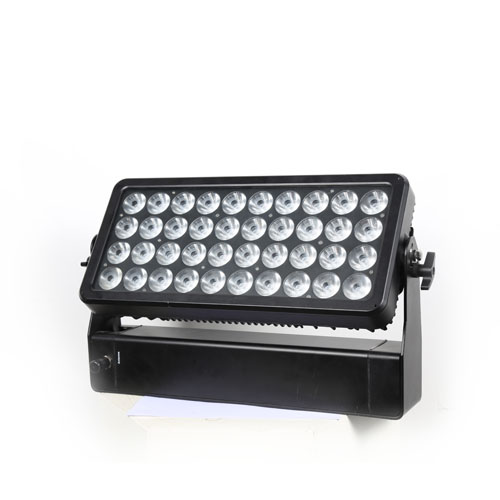

VW-4004 8°
Order Code VW-4004 8° View Details

Ready to Transform Your Space?

SKU: ARCPOD48Q
CATEGORY: Floods
BRAND: Prolights
DELIVERY For orders above AED 1,000
WARRANTY 5 years
SECURE PAYMENT Safe encrypted checkup
EXPERT SUPPORT Pre and post sale support

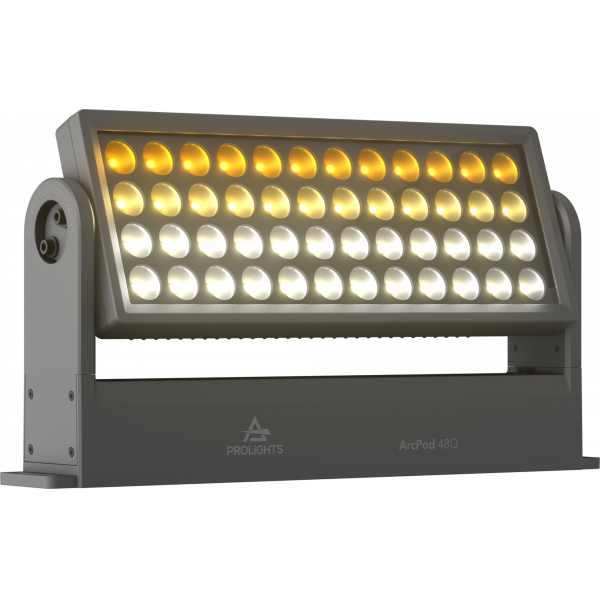

ArcPod 48Q is a compact high-power exterior wash light featuring an outstanding brightness of 23'000 lumens. It is equipped with 48x10W RGBW / FC LEDs, delivering a limitless reproduction of colours and whites. ArcPod 48Q is designed slim and fanless, and it's completed by a wide selection of available optics, making the ArcPod 48Q an incredibly flexible and versatile device for any outdoor install.

  • 48x10W RGBW / FC LEDs delivering 23'000 lumens
  • LED emitters controllable in 4 sections
  • Compact form factor and fanless

    • ArcPod 48Q is a compact high-power exterior wash light featuring an outstanding brightness of 23'000 lumens. It is equipped with 48x10W RGBW / FC LEDs, delivering a limitless reproduction of colours and whites. ArcPod 48Q is designed slim and fanless, and it's completed by a wide selection of available optics, making the ArcPod 48Q an incredibly flexible and versatile device for any outdoor install.

    Features:
    48x10W RGBW / FC LEDs delivering 23'000 lumens
    LED emitters controllable in 4 sections
    Compact form factor and fanless

    LIGHT SOURCE
    • Source:
      48x10
      W
      RGBW LEDs
    • Luminous flux:
      (10°) 18'421 lm; (15°) 22'977 lm; (25°) 20'741 lm; (45°) 16'408
      @Full
    • Lux:
      (10°) 37'370 lx; (15°) 30'888 lx; (25°) 12'884 lx; (45°) 2'739
      lx
      @3 m full
    • Lux:
      (10°) 13'453 lx; (15°) 11'120 lx; (25°) 4'638 lx; (45°) 986
      lx
      @5 m full
    • Source life expectancy:
      > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
    OPTICS
    • Beam angle:
      15
      °
    • Field angle:
      27
      °
    • Additional optics:
      10° - 25° - 45° (optional) -
      see available accessories
    COLOUR SYSTEM
    • Colour mixing:
      RGBW / FC
    • CCT:
      CCT control through dedicated DMX channel
    • White presets:
      2.800 K ~ 10.000
      K
    • Colour wheel:
      virtual colour wheel with macros
    • Macros:
      several pre-built macros with adjustable speed
    DYNAMIC EFFECTS
    • FX generator:
      up to 4 linear
      controllable sections
    • Static mode:
      selection of static colour
    CONTROL
    • Supported Protocols:
      DMX512, RDM
    • DMX channels:
      5 / 7 / 10 / 17 / 22
      ch
    • Pixel control:
      up to 4 linear
      controllable sections
    • RDM:
      for remote addressing and parameter configuration
    • Display:
      user interface through DATAMASTER external coder (not included)
    • Master/Slave:
      for synchronised operation of more units linked in a chain
    MOVEMENT
    • Tilt:
      0 - 130
      °
      with manual adjustment
    ELECTRONICS
    • Dimmer:
      linear 0 - 100% electronic dimmer
    • Dimmer curves:
      4
      selectable dimming modes available
    • Strobe / shutter:
      1 ~ 30
      Hz, electronic
    • Selectable PWM:
      600 to 25000 Hz (selectable steps)
    • Firmware upgrade:
      via DMX with UPBOXPRO/UPBOX1 (not included)
    CONNECTIONS
    • Power connection:
      1,8 m
      moulded IP power IN/OUT connectors
    • Signal connection:
      1,8 m
      moulded IP signal IN connector
    • Adaptors:
      XLR and BARE END 16A adaptors included
    ELECTRICAL
    • Mains power supply:
      100-240V - 50/60Hz
    • Max power consumption (230V):
      540
      W
    • Output (at 230V):
      4
      units on a single power line
    • Power factor:
      0,95
    PHYSICAL
    • IP rating:
      IP66 for outdoor installations
    • IK rating:
      IK08 impact rating
    • Cooling:
      fan-free with natural convection
    • Housing:
      Sturdy die-cast aluminium body
    • Finish:
      basalt grey (RAL 7012), also available with C5-M marine grade coating
    • Operating temperature:
      Ta
      -20 to +45 °C (-4 to +113 °F)
    • Dimensions (WxHxD):
      584x304x93
      mm
    • Weight:
      14
      kg
    CERTIFICATIONS / REPORTS
    • Compliance:
      CE, UKCA, RCM, cTUVus, FCC

    No reviews yet.

    Browse Related Categories

    More categories under Architectural

    Linear
    Gallery Lights
    Pendant
    Image Projectors
    Accents
    Spots

    48x10W RGBW/FC outdoor IP66 LED wash light for exterior installations

    ArcPod 48Q is a compact high-power exterior wash light featuring an outstanding brightness of 23'000 lumens. It is equipped with 48x10W RGBW / FC LEDs, delivering a limitless reproduction of colours and whites. ArcPod 48Q is designed slim and fanless, and it's completed by a wide selection of available optics, making the ArcPod 48Q an incredibly flexible and versatile device for any outdoor install.

    Main features:

    • 48x10W RGBW / FC LEDs delivering 23'000 lumens
    • LED emitters controllable in 4 sections
    • Compact form factor and fanless
