Passive Loudspeakers

Mistral 20.1

Experience the
Mistral 20.1
Light Show

No specifications available yet.

No downloads available yet.

Mistral 20.1

Explore Similar
Products

Ready to Transform Your Space?

SKU: 20.1
DELIVERY For orders above AED 1,000
WARRANTY 2 years
SECURE PAYMENT Safe encrypted checkup
EXPERT SUPPORT Pre and post sale support

The new Mistral loudspeaker system, together with the Aliseo system, belongs to the new family of loudspeakers with a symmetrical configuration recently designed by Pequod.

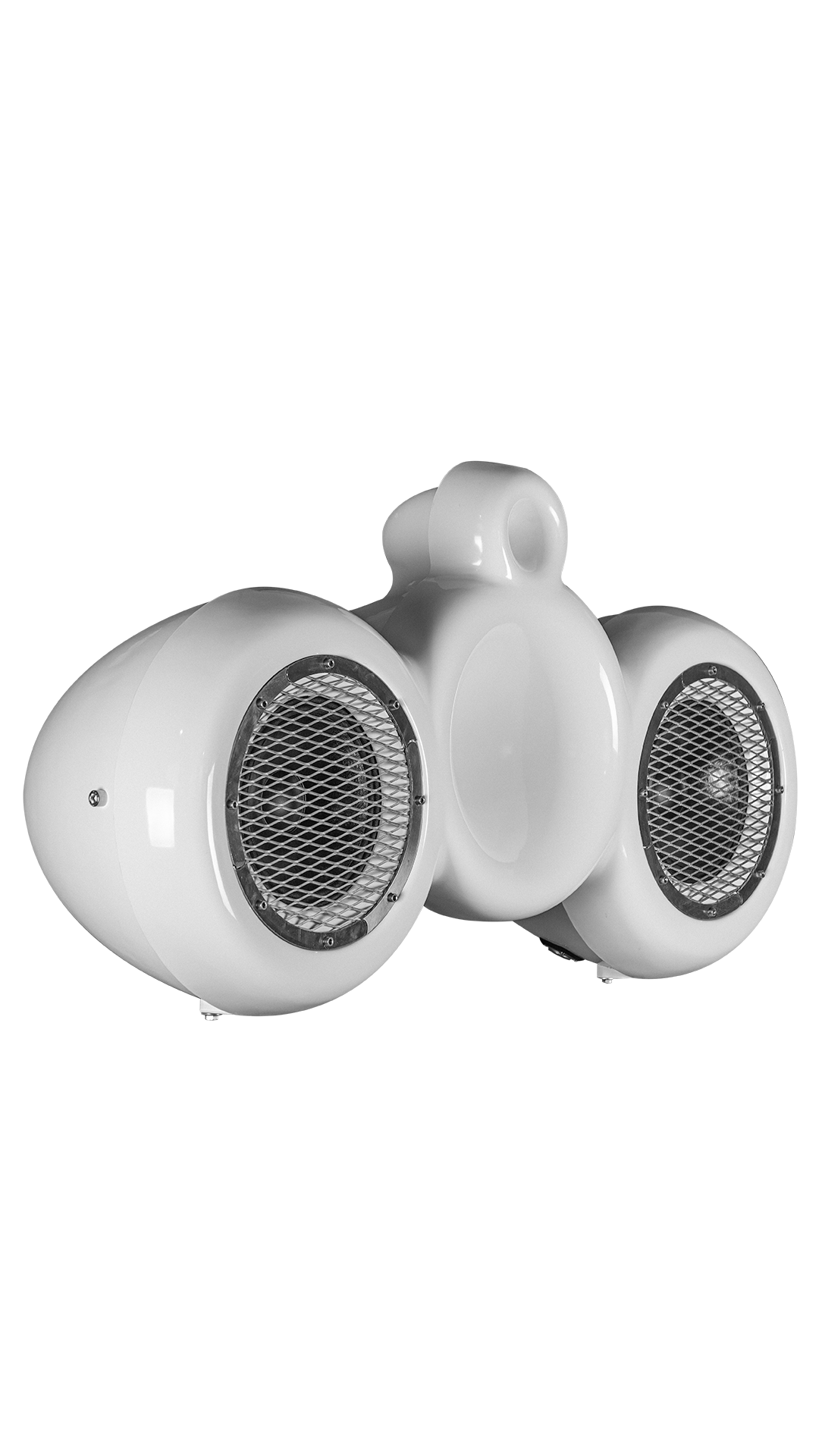

Mistral is an elegant composite material system using very high quality and specialized transducers. The system has an horizontal, symmetrical, compact design in relation to the performance. The central unit of the medium-high frequencies is made using optimized drivers acoustically loaded with frontal horns, with a circular development. On both sides of the central element we find a pair of 10” high excursion woofers, bass reflex loaded, in separate volumes. Inside the system there is a passive crossover. It’s an extreme design, like every crossover we make, and it’s made using high-grade components, optimized to extract the maximum from the individual transducers and create a perfectly integrated global system between the individual ways.

The sonic result is once again surprising and in line with the Pequod family sound that characterizes the full range systems of our production: clear and natural mid range, refined high frequencies and solid, well damped low frequencies. The great naturalness of the voices presentation, in full mid range, is something that strikes the listener from the very first listening.


The extremes of the range, both in low and in high frequency, complete the sound characteristics of the new Mistral at the same Three way passive, symmetrical configuration qualitative level. Dynamics is another system feature, in addition to high power and negligible distortion. These feastures make Mistral perfect for use as a high power central channel in sophisticated home theater systems, such as those achievable with Pequod products. Another option is to use Mistral suspended, against a wall or in a corner, to create sound spaces in large areas with low ceiling heights: typically in sophisticated clubs, where Mistral can be as stand alone version or, alternatively, with an Ovoid 18 type subwoofer, to get extremely high sound pressure level. In every situation it will be the maker of very high quality sound spaces.

protection Weatherised
color RAL

No reviews yet.

Three way passive, symmetrical configuration

The new Aliseo loudspeaker system is the new challenge that Pequod has undertaken, designing an elegant system in composite material using the highest quality and specialized 5 “units. The system has an horizontal, symmetrical, and extremely compact design in relation to the performance.  TYPE 3 way passive ,symmetrical configuration FREQUENCY RESPONSE 50 Hz - 18 KHz (-3dB) TOTAL SENSITIVITY 92 dB 1W/1m with passive crossover SPL MAX 114 dB with 300 W LOW FREQUENCY 2x5” woofer @8Ohm 200W continuous power handling each, sensivity 90.5 dB 1W/1m MEDIUM FREQUENCY 5” mid-woofer @ 8 Ohm 300W continuous power handling , sensivity 92 dB 1W/1m HIGH FREQUENCY HF compression driver with high tech polymer diaphragm @ 8 Ohm 50W continuous power handling , sensivity 105dB 1W/1m NOMINAL IMPEDANCE 4 Ohm with 3 way passive crossover POWER HANDLING 350W @ 4 Ohm with amplifier MANAGE 2 Ch amplifier to a couple of Aliseo loudspeakers (passive crossover provided, for each Aliseo). If very high output is needed we recommend to use a DSP : High-pass filter @50Hz, 12 dB/oct. or higher slope.Otherwise as Satellite with subwoofer: Amplifier+DSP to match to subwoofer. High-pass filter @90Hz, 12 dB/oct. or higher slope. Inner thermal protection device

Our latest content

Check out what's new in our company !

Your Dynamic Snippet will be displayed here... This message is displayed because you did not provide enough options to retrieve its content.
provided, to avoid overdrive. RECOMMENDED AMPLIFIER 2 channel amplifier, around 450W on each channel @ 4 ohm stable DISPERSION 60° conical CONSTRUCTION MATERIALS Fiber-reinforced composite, stainless steel FINISH all ral color and texture on order PROTECTIVE GRILLES Aliseo is usually sold with these grids to protect the 5” woofers and coaxial ,as standard CONNECTORS Aliseo has,as exit, 2 pole OF Copper high quality cable,1,5 sq.mm each pole, to be connected to Neutrik NL2, NL4 or custom DIMENSIONS (without support) (W) 790mm (H) 400mm (D) 400mm (W) 31 inch (H) 15,8 inch (D) 15,8 inch WEIGHT 7 Kg (15,5 lb)

Specifications

protection Weatherised
color RAL
