Experience the

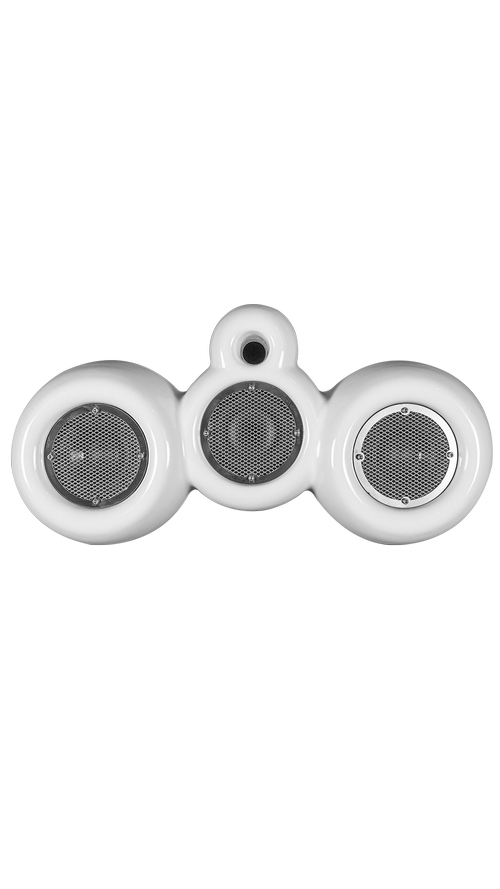

ALISEO 19.1
Light Show
No specifications available yet.
No downloads available yet.
Explore Similar
Products
Ready to Transform Your Space?
The new Aliseo loudspeaker system is the new challenge that Pequod Acoustics has undertaken, designing an elegant system in composite material using the highest quality and specialized 5 “units. The system has an horizontal, symmetrical, and extremely compact design in relation to the performance. The central unit is made using a 5 ” mid woofer coaxial with an extremely refined horn loaded high frequency driver, with 70 ° conical dispersion. On the two sides of the central element we find a pair of high excursion 5 “woofers, bass reflex loaded ,in separate volumes. Inside the system there is a passive crossover.
It’s an extreme design,like every crossover we make, and is made using high grade components, optimized to extract the maximum from the individual transducers and create a perfectly integrated global system between the individual ways.
The sonic result is once again surprising and in line with the Pequod Acoustics family sound that characterizes the full range systems of our production: clear and natural mid range, refined high frequencies and solid ,well damped low range. The great naturalness of presentation of the voices, in full mid-range, is something that strikes the listener right from the first listening. The extremes of range, both in low and high frequency, complete the sound characteristics of the new Aliseo at the same level of quality. Dynamics is another feature of the system, surprising in relation to the small transducers used. These features make Aliseo perfect for use as a center channel in sophisticated home theater systems, such as those achievablewith Pequod products. Another option is to use Aliseo suspended, against a wall or in a corner, to create sound spaces in areas with reduced heights on the vertical plane: typically in private rooms in sophisticated clubs, where Aliseo can be as stand alone version or, alternatively, with a subwoofer, to get extremely high Sound pressure level. In every situation it will be the maker of very high quality sound spaces.
| protection | Weatherised |
| color | RAL |
No reviews yet.
Three way passive, symmetrical configuration
The new Aliseo loudspeaker system is the new challenge that Pequod has undertaken, designing an elegant system in composite material using the highest quality and specialized 5 “units. The system has an horizontal, symmetrical, and extremely compact design in relation to the performance. TYPE 3 way passive ,symmetrical configuration FREQUENCY RESPONSE 50 Hz - 18 KHz (-3dB) TOTAL SENSITIVITY 92 dB 1W/1m with passive crossover SPL MAX 114 dB with 300 W LOW FREQUENCY 2x5” woofer @8Ohm 200W continuous power handling each, sensivity 90.5 dB 1W/1m MEDIUM FREQUENCY 5” mid-woofer @ 8 Ohm 300W continuous power handling , sensivity 92 dB 1W/1m HIGH FREQUENCY HF compression driver with high tech polymer diaphragm @ 8 Ohm 50W continuous power handling , sensivity 105dB 1W/1m NOMINAL IMPEDANCE 4 Ohm with 3 way passive crossover POWER HANDLING 350W @ 4 Ohm with amplifier MANAGE 2 Ch amplifier to a couple of Aliseo loudspeakers (passive crossover provided, for each Aliseo). If very high output is needed we recommend to use a DSP : High-pass filter @50Hz, 12 dB/oct. or higher slope.Otherwise as Satellite with subwoofer: Amplifier+DSP to match to subwoofer. High-pass filter @90Hz, 12 dB/oct. or higher slope. Inner thermal protection deviceOur latest content
Check out what's new in our company !
Specifications
| protection | Weatherised |
| color | RAL |
