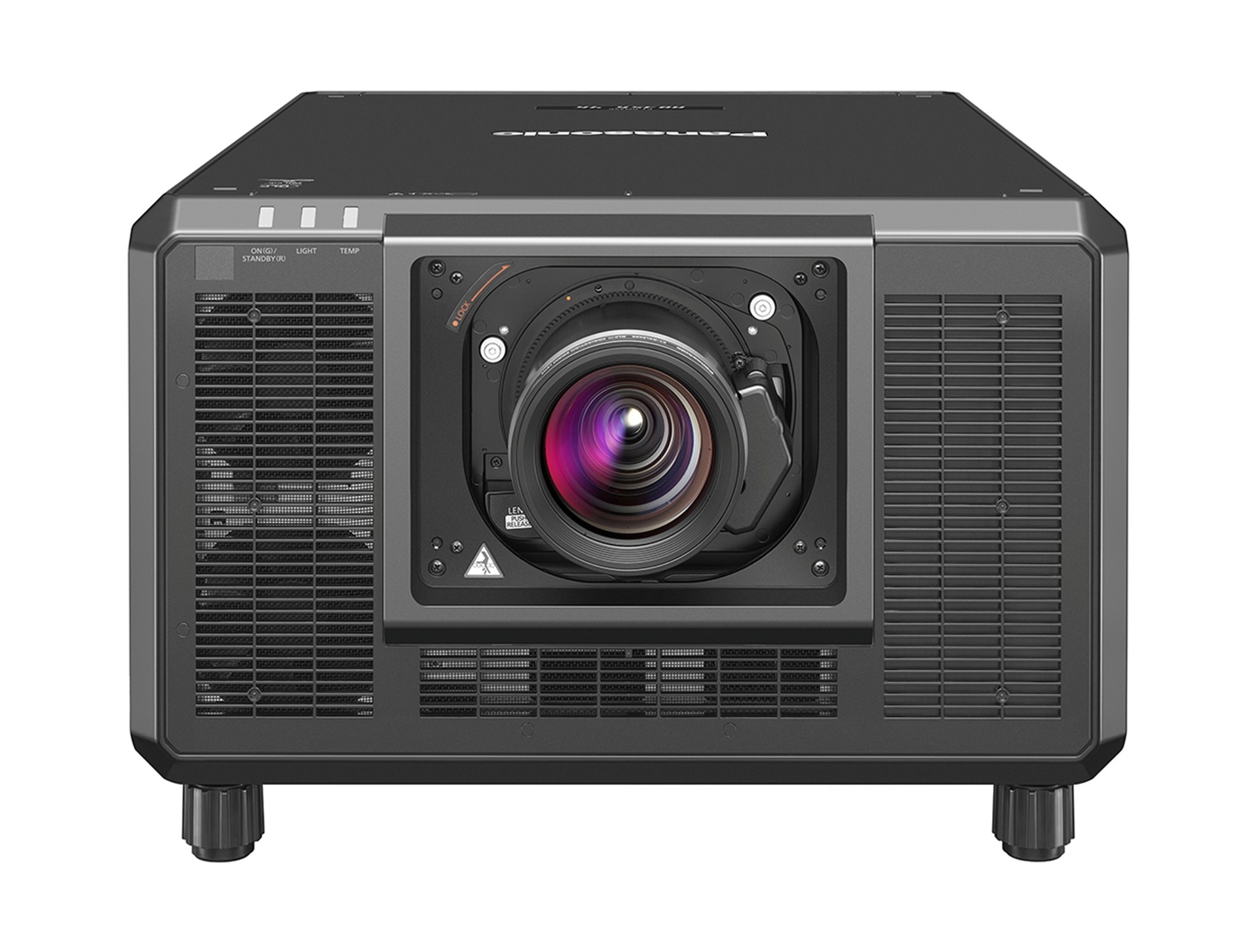

PT-RZ34K2EJ

PT-RZ34K2 — 3-Chip DLP™ WUXGA Projector, 30,500 lm

The PT-RZ34K2 is the WUXGA sibling of the PT-RQ35K2, sharing the exact same body, brightness, and rock-solid reliability, just at 1920 x 1200 resolution instead of native 4K. For jobs where you don't need the extra pixel count but want the same rental-friendly footprint and color performance as its 4K counterpart, this is the go-to option. Like the RQ35K2, it's genuinely small and light enough to be moved and installed by two people, and it shares the same lens lineup, so you're not stuck buying new glass just to add it to your fleet.

Key Features:

• 30,500 lm (ANSI) / 32,000 lm (center), WUXGA (1920 x 1200 px) resolution
• Same compact, two-person-portable body as the PT-RQ35K2, ideal for rental fleets and tight venues
• Two blue lasers plus one red laser module for expanded color-gamut reproduction, truer blues and deeper reds
• Compatible with the existing 3-Chip DLP™ lens lineup (except RQ50K-dedicated lenses), so fleet upgrades don't mean buying new optics
• Preactivated Geometry Manager Pro upgrade kits, no license key activation needed, auto edge-blend calibration via external camera
• Smart Projector Control app with NFC pairing for network setup before AC power is even connected, great for fast fleet rollouts
• Flexible black-level adjustment with up to 17 control points for uniform edge-blends on curved screens
• Backup Input with automatic failover between primary/secondary signals in as little as 0.3 seconds, no screen blanking
• Multi-Laser Drive Engine with Failover Circuitry, bypasses only affected diodes if one fails, not the whole module
• Quiet Mode cuts operating noise by 3 dB, extends time-to-50%-brightness to 26,000 hours
• Free 360-degree installation through any axis with powered lens shift

Specifications:

• Projector type: 3-Chip DLP™ projector
• Light output: 30,500 lm / 30,500 lm (ANSI) / 32,000 lm (center)
• Resolution: WUXGA (1920 x 1200 px) — 4K signals converted to WUXGA on this model
• Contrast ratio: 20,000:1 (typ.)
• Screen size: 1.78–25.4 m (70–1000 in), depending on lens
• Lens: Optional (not included)
• Power supply: AC 200–240V
• Maximum power consumption: 2,450 W
• Operation noise: 49 dB (Normal) / 46 dB (Quiet)
• Dimensions (W x H x D): Approx. 598 x 353 x 780 mm
• Weight: 68.6 kg
• Operating temperature: 0–45°C
• Applicable software: Logo Transfer Software, Multi Monitoring & Control Software, Early Warning Software, Smart Projector Control (iOS/Android)
