PT-RQ50KEJ

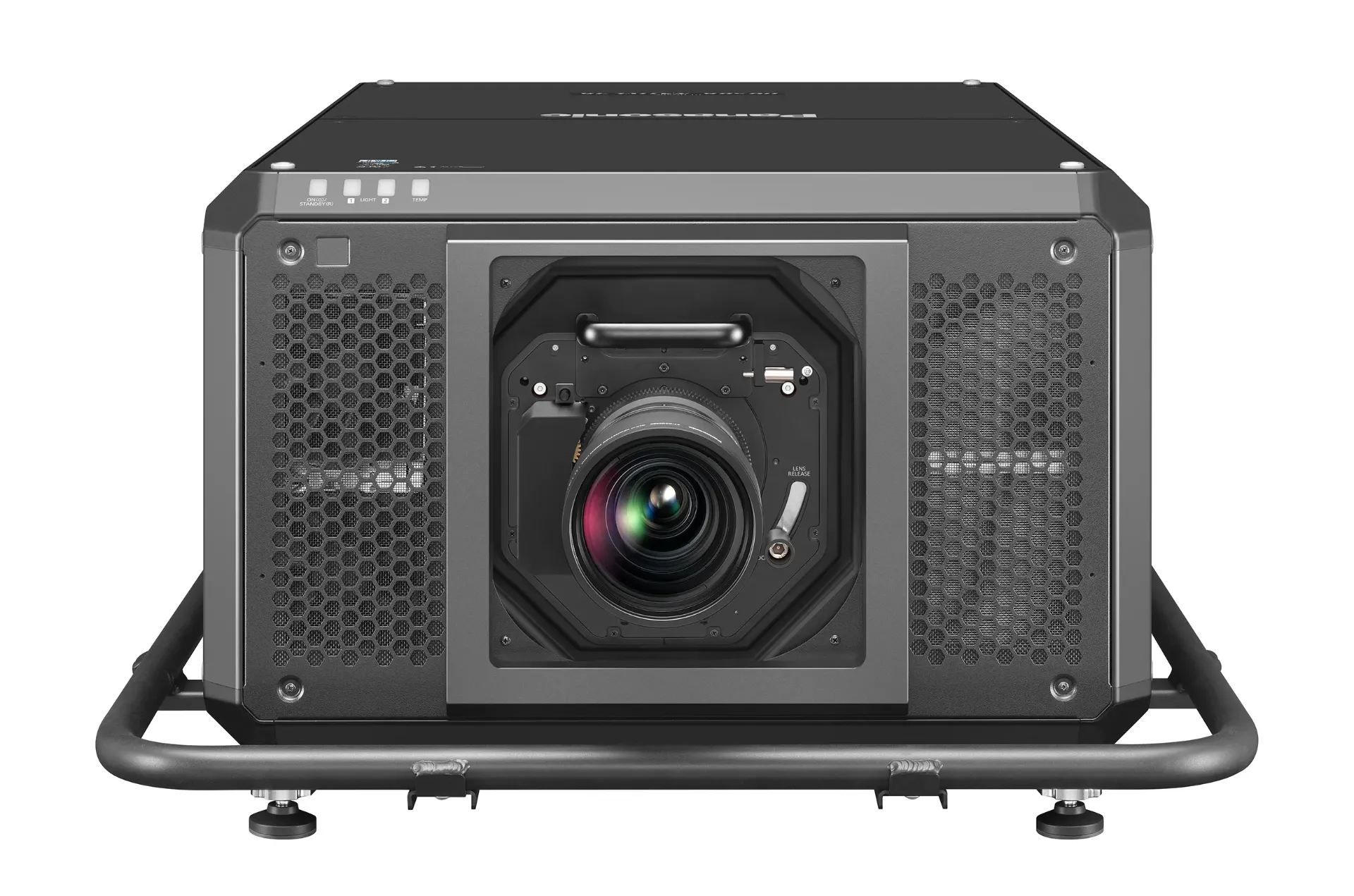

PT-RQ50K – 50,000 Lumen Native 4K 3-Chip DLP Laser Projector

The PT-RQ50K is Panasonic's most compact 50,000-lumen laser projector, delivering native 4K (4096 x 2160) resolution from a 3-chip DLP engine. It's built for large-scale events, projection mapping, arena spectacles, and immersive installations where brightness, color accuracy, and uptime really can't be compromised.

Key Features

• 50,000 center lumens (51,000 lm), native 4K resolution
• New laser engine with dual-wavelength blue lasers plus a dedicated red laser — 114% color gamut compared to the PT-RQ32K
• 20,000:1 contrast ratio (25,000:1 dynamic)
• Lamp-free, filter-less design — up to 20,000 hours of maintenance-free operation
• Solid-State Laser Modules with failover circuitry, so individual diode failures get bypassed instead of shutting the whole module down
• 360-degree free installation, compact footprint for easier transport and rigging
• Built-in Geometry Manager Pro upgrade kit, no paid activation required
• Smart Projector Control app (iOS/Android) — control up to 64 units remotely via Wi-Fi or NFC pairing
• Dual power input, Art-Net DMX, Crestron Connected, PJLink compatible

Ideal Applications

• Large-venue events, concerts, sporting arenas
• Projection mapping on buildings and outdoor structures
• Museum and immersive exhibition installations
• Rental and staging fleets that need dual redundancy and 24/7 reliability

Technical Specifications

• Projector Type: 3-Chip DLP
• Resolution: Native 4K (4096 x 2160)
• Brightness: 50,000 lm (ANSI) / 51,000 lm (Center)
• Contrast Ratio: 20,000:1 (25,000:1 Dynamic)
• Light Source: Laser diodes (Blue + Red)
• Light Source Life: 20,000 hrs (Normal) / 24,000 hrs (Eco)
• Lens: Optional, sold separately
• Lens Shift: ±45% Vertical / ±16% Horizontal (powered)
• Keystone Correction: ±40° Vertical / ±40° Horizontal
• Inputs: DIGITAL LINK/LAN (RJ-45), LAN, SLOT1 (12G-SDI included), SLOT2 (optional boards)
• Power Consumption: Max 4,100 W / Normal 3,970 W / Eco 3,110 W
• Dimensions (W x H x D): 720 x 445 x 1,070 mm
• Weight: Approx. 126 kg (without lens)
• Operating Temperature: 0–45°C
• Body Colour: Black

Note: Lens sold separately
