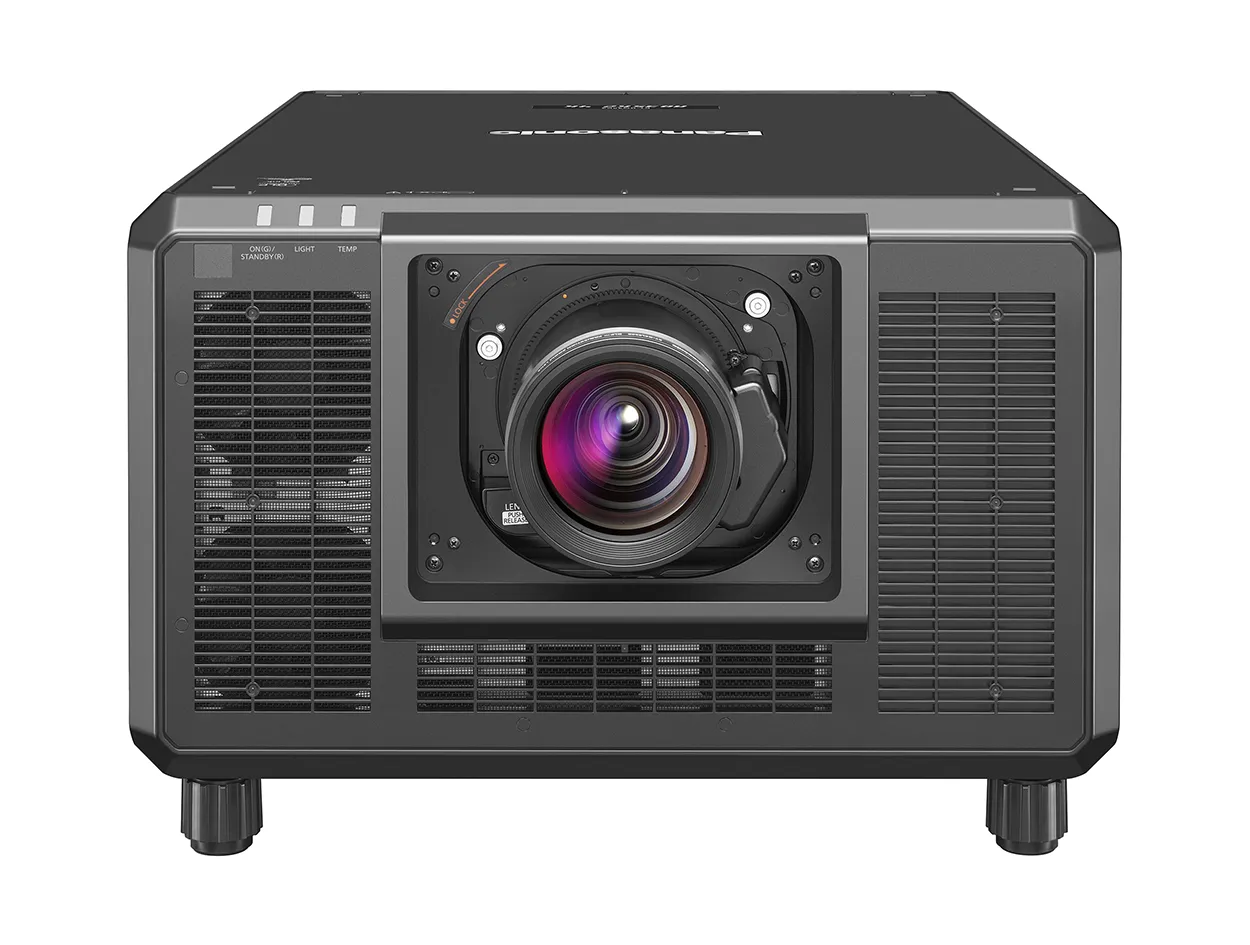

PT-RQ35K2EJ

PT-RQ35K2 — 3-Chip DLP™ 4K+ Projector, 30,500 lm

The PT-RQ35K2 is the world's smallest and lightest projector in the 30,000-lumen-class 3-Chip DLP™ 4K category, light enough to be transported and installed by two people. That makes it a natural fit for rental fleets and venues where storage space, labor, or logistics are tight constraints. It brings a genuine color upgrade over previous generations too: a combination of two blue and one red laser module expands the color gamut, giving you truer blues and richer, more accurate reds. And since it shares its lens mount with the rest of the 3-Chip DLP™ lineup (excluding dedicated RQ50K lenses), you can pull optics straight from your existing inventory rather than buying new ones.

Key Features:

• 30,500 lm (ANSI) / 32,000 lm (center), Native 4K (3840 x 2400 px) with Quad Pixel Drive
• World's smallest and lightest 30,000-lumen-class 3-Chip DLP™ 4K projector, transportable by two people
• Two blue lasers plus one red laser module for expanded color-gamut reproduction, truer blues and deeper reds
• Compatible with the existing 3-Chip DLP™ lens lineup (except RQ50K-dedicated lenses), so fleet upgrades don't mean buying new glass
• Preactivated Geometry Manager Pro upgrade kits, no license key activation needed, auto edge-blend calibration via external camera
• Smart Projector Control app with NFC pairing for network setup before AC power is even connected, ideal for fast fleet rollouts
• Gradation Smoother reduces banding in content with limited color bit-depth (PT-RQ35K2 only)
• Flexible black-level adjustment with up to 17 control points for uniform edge-blends on curved screens
• Backup Input with automatic failover between primary/secondary signals in as little as 0.3 seconds, no screen blanking
• Multi-Laser Drive Engine with Failover Circuitry — bypasses only affected diodes if one fails, not the whole module
• Quiet Mode cuts operating noise by 3 dB, extends time-to-50%-brightness to 26,000 hours
• Free 360-degree installation through any axis with powered lens shift

Specifications:

• Projector type: 3-Chip DLP™ projector
• Light output: 30,500 lm / 30,500 lm (ANSI) / 32,000 lm (center)
• Resolution: 4K (3840 x 2400 px) with Quad Pixel Drive ON
• Contrast ratio: 20,000:1 (typ.)
• Screen size: 1.78–25.4 m (70–1000 in), depending on lens
• Lens: Optional (not included)
• Power supply: AC 200–240V
• Maximum power consumption: 2,550 W
• Operation noise: 49 dB (Normal) / 46 dB (Quiet)
• Dimensions (W x H x D): Approx. 598 x 353 x 780 mm
• Weight: 69.8 kg
• Operating temperature: 0–45°C
• Applicable software: Logo Transfer Software, Multi Monitoring & Control Software, Early Warning Software, Smart Projector Control (iOS/Android)
