PT-REQ15
PT-REQ15 PT-REQ15 PT-REQ15 PT-REQ15 PT-REQ15 PT-REQ15 PT-REQ15
1 Chip DLP

PT-REQ15

0.8 in (16:10) Size

Experience the
PT-REQ15
Light Show

Interchangeable lens system (throw ratios from 0.308 1) with powered zoom/focus, Lens Memory, and Auto Lens Identification
Evolved Dynamic Contrast at 25,000 1, plus Gradation Smoother to reduce banding
Projector type 1-Chip DLP
Panel size 0.8 in (16:10)
Light output 15,000 lm (ANSI) / 15,500 lm (Center)
Time to 50% brightness 20,000 hrs (Normal/Quiet), 24,000 hrs (Eco)
Resolution 4K (3840 x 2400 px) with Quad Pixel Drive
Contrast ratio 25,000:1 (Full On/Off, Dynamic Contrast 3)
Screen size 70–700 in (with supplied lens)
Lens Optional powered zoom/focus lenses (interchangeable, not fixed)
Lens shift Vertical ±60% (with ET-C1W400/W500/S600/T700) or ±50% (with ET-C1W300/U100); Horizontal ±29% or ±23% depending on lens
Keystone correction Vertical/Horizontal ±40° (reduced range with certain lenses — see lens-specific notes)
Terminals 2x HDMI (HDCP 2.3, 4K/60p), 1x DisplayPort (HDCP 2.3, 4K/60p), Multi Projector Sync In/Out, RS-232C Serial In/Out, Intel SDM slot
Installation Ceiling/floor, front/rear, free 360° installation
Applicable software Smart Projector Control, Multi Monitoring & Control Software, Visual Software Suite

No downloads available yet.

PT-REQ15

Explore Similar
Products

Ready to Transform Your Space?

CATEGORY: 1 Chip DLP
BRAND: Panasonic
DELIVERY For orders above AED 1,000
WARRANTY 3 years
SECURE PAYMENT Safe encrypted checkup
EXPERT SUPPORT Pre and post sale support

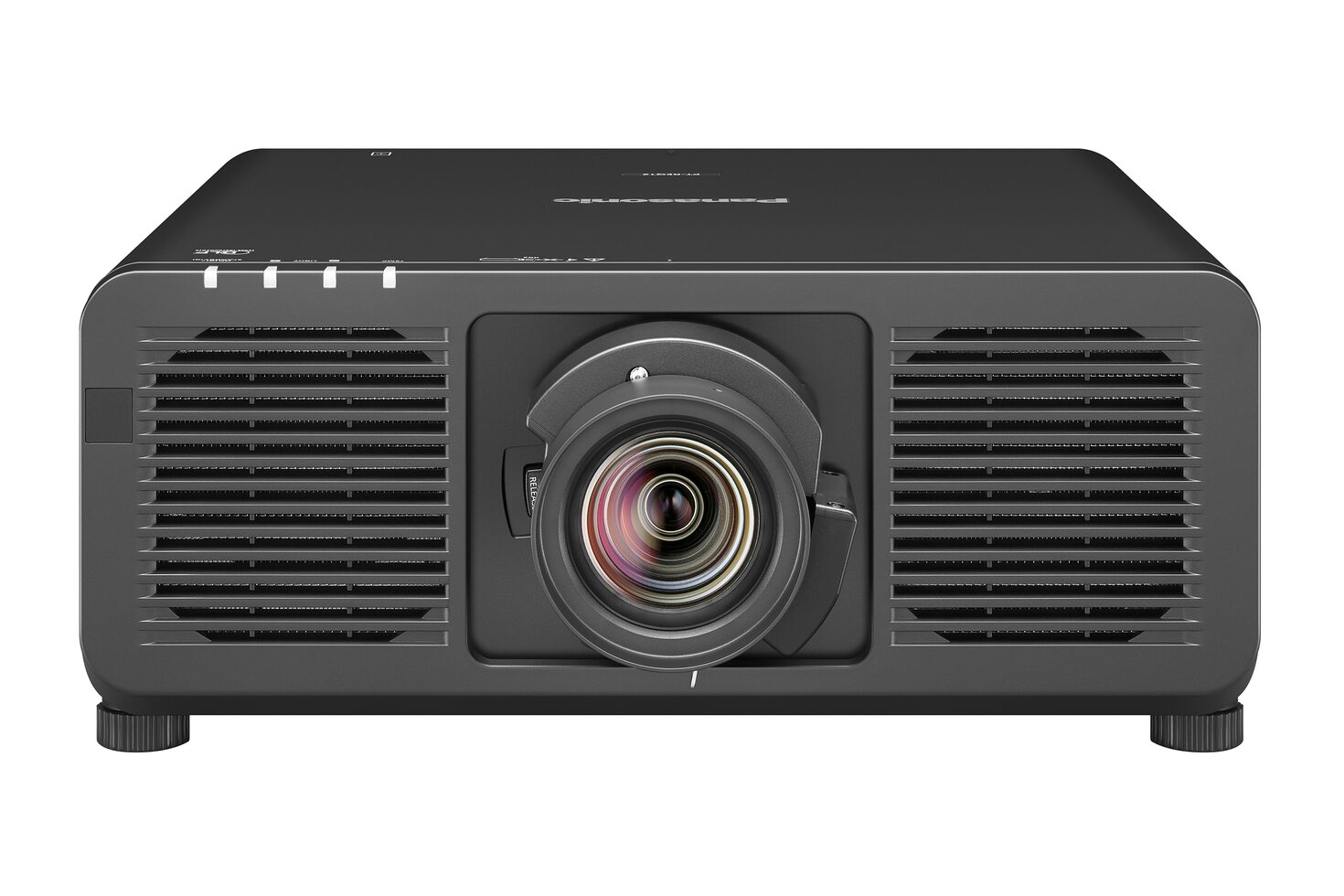

 Panasonic's flagship compact 1-Chip DLP laser projector, delivering full 15,000 lm brightness on standard AC 100–240V power — no special voltage wiring needed. Built for large-scale immersive production, XR attractions, and rental/staging work, it pairs 4K Quad Pixel Drive imaging with an interchangeable lens lineup and Intel SDM slot for AVoIP and media processor integration.

Key Features:

  • 15,000 lm (ANSI) / 15,500 lm (center), 4K (3840 x 2400 px) via Quad Pixel Drive
  • Full brightness on standard AC 100–240V power — no high-voltage rewiring needed
  • Interchangeable lens system (throw ratios from 0.308:1) with powered zoom/focus, Lens Memory, and Auto Lens Identification
  • 2K/240Hz playback with 6ms or less latency — built for eSports, real-time tracking, and projection-mapping SDK use
  • Evolved Dynamic Contrast at 25,000:1, plus Gradation Smoother to reduce banding
  • Backup Input Redundancy — auto-switches to a backup HDMI feed in under 0.3s with no screen blank
  • IP5X dust-protected optical engine and liquid cooling for 20,000-hour maintenance-free operation
  • Intel SDM standard-compatible slot for AVoIP, SDI, and HDBaseT function boards
  • NFC-based setup prep, Smart Projector Control app (control up to 64 projectors), USB Connect Control
  • Multi-Laser Drive Engine with failover circuitry, Geo Pro geometric adjustment tools included

Specifications:

  • Projector type: 1-Chip DLP
  • Panel size: 0.8 in (16:10)
  • Light output: 15,000 lm (ANSI) / 15,500 lm (Center)
  • Time to 50% brightness: 20,000 hrs (Normal/Quiet), 24,000 hrs (Eco)
  • Resolution: 4K (3840 x 2400 px) with Quad Pixel Drive
  • Contrast ratio: 25,000:1 (Full On/Off, Dynamic Contrast 3)
  • Screen size: 70–700 in (with supplied lens)
  • Lens: Optional powered zoom/focus lenses (interchangeable, not fixed)
  • Lens shift: Vertical ±60% (with ET-C1W400/W500/S600/T700) or ±50% (with ET-C1W300/U100); Horizontal ±29% or ±23% depending on lens
  • Keystone correction: Vertical/Horizontal ±40° (reduced range with certain lenses — see lens-specific notes)
  • Terminals: 2x HDMI (HDCP 2.3, 4K/60p), 1x DisplayPort (HDCP 2.3, 4K/60p), Multi Projector Sync In/Out, RS-232C Serial In/Out, Intel SDM slot
  • Installation: Ceiling/floor, front/rear, free 360° installation
  • Applicable software: Smart Projector Control, Multi Monitoring & Control Software, Visual Software Suite
color Black, White
Lens With Lens, Without Lens
PT-REQ15G_spec_en_2.pdf Data Sheet
PT-REQ15_REZ15_manual_en_1715224076.0042_1.pdf Manual

No reviews yet.

Browse Related Categories

More categories under Projectors

3 Chip DLP
LCD



Specifications
Projector type 1-Chip DLP™ projector
Light output 15,000 lm/15,500 lm (Center)
Resolution 4K (3840x2400 pixels) (Quad Pixel Drive: ON)
Contrast ratio 25,000:1 (Full On/Full Off, Dynamic Contrast)
Refresh Rate 240 Hz Refresh rate varies depending on scanning frequency
Terminals 2 x HDMI In 1 x Display Port In 1 x LAN: RJ-45 1 x RS232: DB-9pin (Serial In) 1 x RS232: DB-9pin (Serial Out) 1 x RS232: DB-9pin (Remote In) 1 x USB (DC Out) 1 x USB (for AJ-WM50 Series) 1 x Mini Jacks (Remote In) 1 x Mini Jacks (Remote Out) 1 x BNC In(Multi Projector Sync) 1 x BNC Out(Multi Projector Sync) 1 x Available Slots for Interface Boards
Dimensions (W x H x D) Approx. 498 x 212 x 538 mm (excluding protrusions)
Weight 28.7 kg
Operation noise 42 dB (NORMAL/ECO), 38 dB (QUIET)
Power Consumption 1,140 W (11.5–4.7 A) (1,150 VA) (Power consumption is 1,090 W at AC 200–240 V)
Supplied Accessories Power cord*10, Lens hole cover x 1 , Wireless/wired remote control unit x 1, Batteries for remote control (AA/R6 type x 2), Lens fixing screw x 1

Optional Accessories
Lens Zoom lens ET-C1U100 (0.308-0.330:1)
Lens Zoom lens ET-C1U200 (0.380:1)
Lens Zoom lens ET-C1W300 (0.550-0.690:1)
Lens Zoom lens ET-C1W400 (0.680-0.950:1)
Lens Zoom lens ET-C1W500 (0.940-1.39:1)
Lens Zoom lens ET-C1S600 (1.36-2.10:1) Note: This product is equivalent to the lens attached to the projector model with standard zoom lens
Lens Zoom lens ET-C1T700 (2.07-3.38:1)
Lens Zoom lens ET-C1T800 (3.3-6.6:1)
Ceiling Mount Bracket with 6-axis adjustment for high ceilings ET-PKD130H
Ceiling Mount Bracket for high ceilings ET-PKD120H
Ceiling Mount Bracket for low ceiling ET-PKD120S
Attachment for Ceiling Mount Bracket ET-PKD130B
Function Board 12G-SDI Terminal Board TY-SB01QS
Function Board 12G-SDI Optical Function Board TY-SB01FB
Function Board DIGITAL LINK Terminal Board TY-SB01DL
Function Board Wireless Presentation System Receiver Board TY-SB01WP
DIGITAL LINK Switcher ET-YFB200G
Digital Interface Box ET-YFB100G
Wire

Specifications

color Black, White
Lens With Lens, Without Lens
