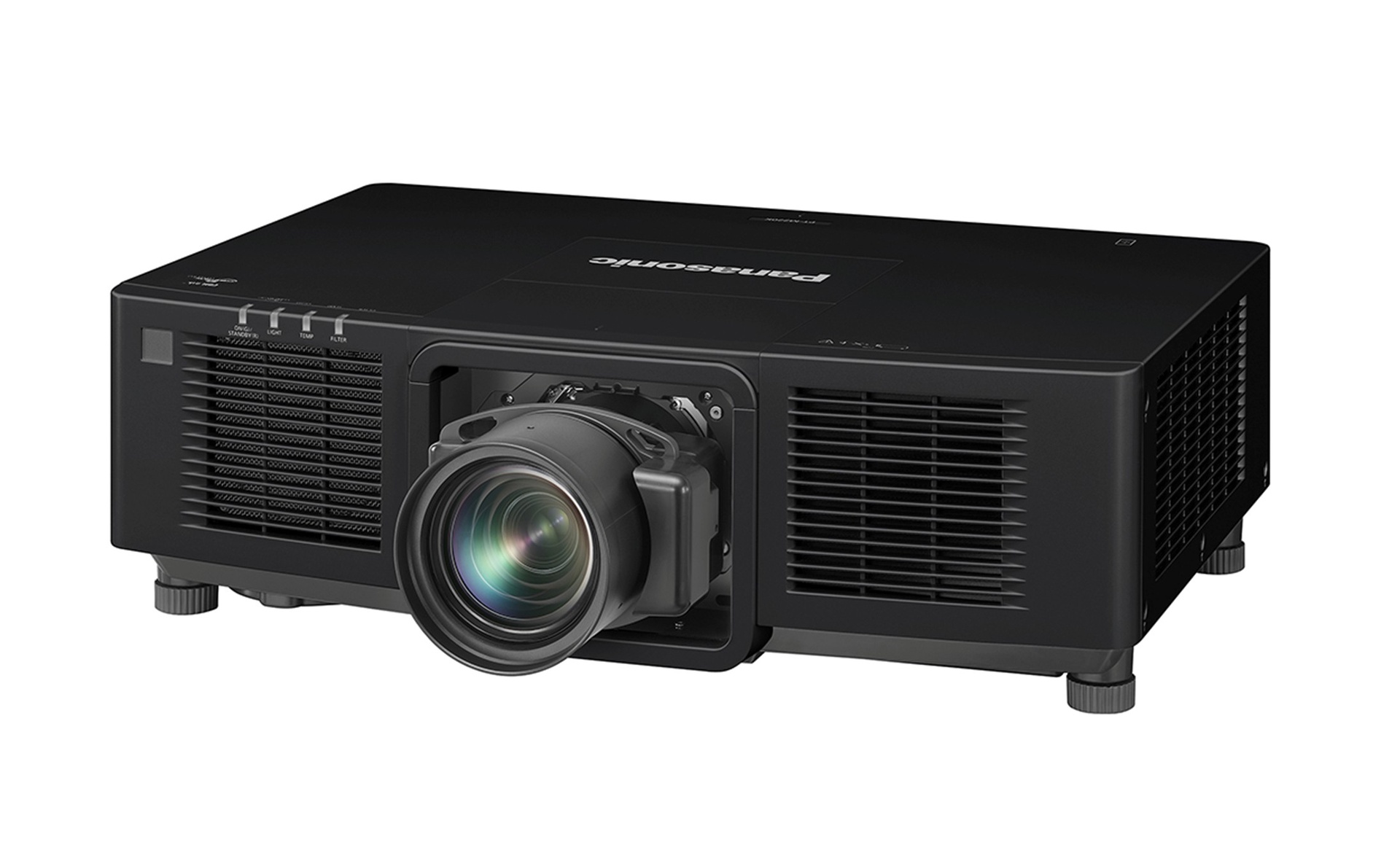

Panasonic PT-MZ11KL — 11,000 lm LCD Laser Projector
The entry point of the world's smallest, lightest, and quietest LCD laser projector series, delivering high-brightness WUXGA projection in a compact, low-power body.
Key Features:
- 11,000 lm brightness — clear, high-visibility images even in well-lit spaces
- WUXGA resolution (1920 x 1200, 16:10) with 3,000,000:1 contrast ratio
- Compact and lightweight — approx. 22.5 kg body
- Quiet operation — 35 dB in Normal Mode, down to 30 dB in Quiet Mode
- Lowest power draw in the series — max. 615 W, ideal where power budget is tight
- Runs on standard AC 100–240V power — no high-voltage installation required
- 20,000-hour laser and filter life — low maintenance, low long-term running cost
- 4K/60p signal support via HDMI or DIGITAL LINK
- Flexible installation — free 360° mounting, powered lens shift (±60% vertical / ±20% horizontal), screen sizes 80–600"
- Lens sold separately — compatible with 8 optional lenses including ultra-short-throw
Ideal for: Mid-size auditoriums, meeting rooms, classrooms, and exhibition spaces needing strong brightness with minimal power draw and near-silent operation.
| color | Black, White |
| Lens | Without Lens |
No reviews yet.
Specifications |
|||
| Projector type | LCD projector | ||
| Light output | 11,000lm | ||
| Resolution | WUXGA (1920 x 1200 pixels) | ||
| Contrast ratio | 3,000,000:1 (Full On/Full Off) (When [PICTURE MODE] is set to [DYNAMIC] and [DYNAMIC CONTRAST] set to [3]. | ||
| Refresh Rate | 60Hz | ||
| Terminals | 2 x HDMI In 1 x SDI 1 x USB (For Memory) 1 x Digital Link (HDBaseT) 1 x LAN: RJ-45 1 x USB (DC Out) 1 x RS232: DB-9pin (Serial In / Multi Sync In) 1 x RS232: DB-9pin (Serial Out / Multi Sync Out) 1 x RS232: DB-9pin (Remote In) 1 x M3 Mini Jack (Remote In) | ||
| Dimensions (W x H x D) | Approx. 650 x 185 x 440 mm | ||
| Weight | Approx. 23.0 kg | ||
| Operation noise | 35 dB (NORMAL), 30 dB (QUIET) | ||
| Max Power Consumption | 615 W (6.3–2.7 A) (630 VA) | ||
| Supplied Accessories | Wireless/wired remote control unit (x 1) Power cord (3.0 m x 1) (x 2 for Europe and Asia model) Batteries for remote control (R03/AAA type x 2) Lens fixing screw (x 4) | ||
Optional Accessories |
|||
| Lens | Zoom lens | ET-EMU100 | |
| Lens | Zoom lens | ET-EMW200 | |
| Lens | Zoom lens | ET-EMW300 | |
| Lens | Zoom lens | ET-EMW400 | |
| Lens | Zoom lens | ET-EMW500 | |
| Lens | Zoom lens | ET-EMS650 | |
| Lens | Zoom lens | ET-EMT750 | |
| Lens | Zoom lens | ET-EMT850 | |
| Ceiling Mount Bracket | with 6-axis adjustment for high ceilings | ET-PKD130H | |
| Ceiling Mount Bracket | for high ceilings | ET-PKD120H | |
| Ceiling Mount Bracket | for low ceiling | ET-PKD120S | |
| Attachment for Ceiling Mount Bracket | ET-PKE301B7 | ||
| Replacement Filter Unit | ET-RFM100 | ||
| DIGITAL LINK Switcher | ET-YFB200G | ||
| Digital Interface Box | ET-YFB100G | ||
| Wireless module | AJ-WM50 Series | ||
| Early Warning Software | ET-SWA100 Series | ||
| NFC Upgrade Kit | ET-NUK10 | ||
| Wireless Presentation System (PressIT) | TY-WPS1 (Basic set) | ||
Specifications
| color | Black, White |
| Lens | Without Lens |
