1 Chip DLP

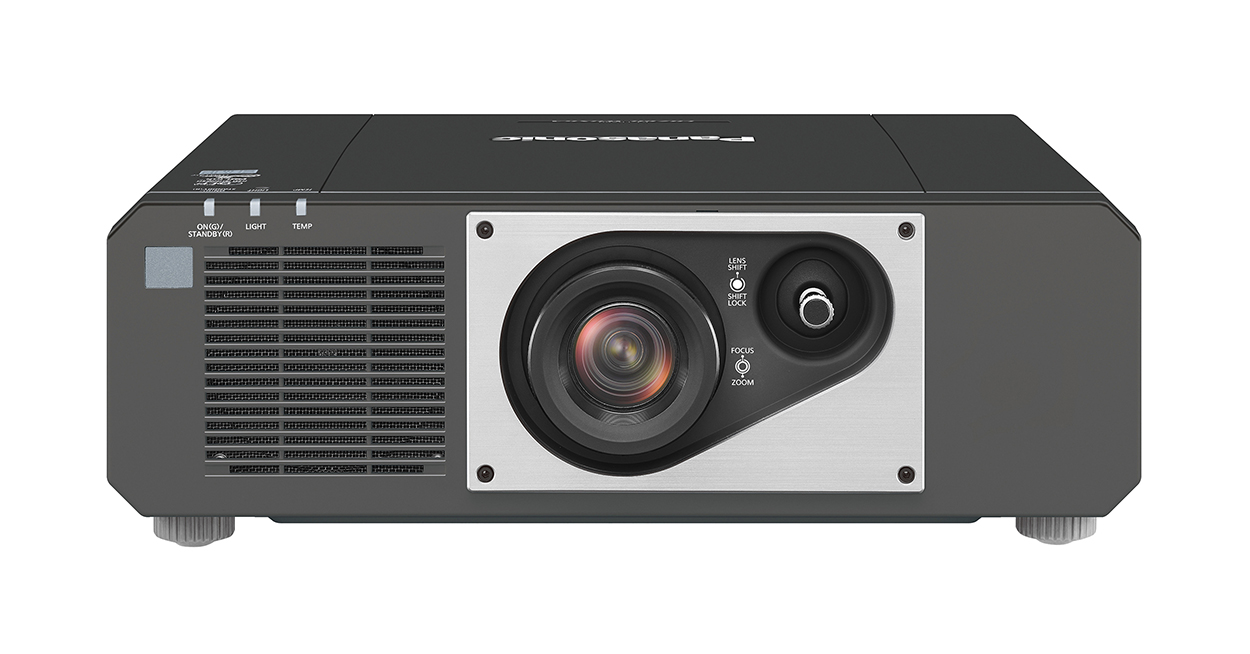

PT-FRZ60
0.67 in (16:10)
Size
AC 100–240V, 50/60Hz
Power Consumption
Approx. 16.1 kg
Weight
Experience the
PT-FRZ60
Light Show
| 2.0x zoom lens (throw ratio 1.46–2.94 | 1) with wide V/H lens-shift (V: +64%/-44%, H: +34%/-27%) |
|---|---|
| Projector type | 1-Chip DLP |
| Panel size | 0.67 in (16:10) |
| Light output | 6,000 lm (ANSI) / 6,200 lm (Center) |
| Time to 50% brightness | 20,000 hrs (Normal) |
| Resolution | WUXGA (1920 x 1200 px) |
| Contrast ratio | 20,000:1 (Full On/Off) |
| Screen size | 1.02–7.62 m (40–300 in), 16:10 |
| Lens | 2.0x manual zoom, throw ratio 1.46–2.94:1, F 2.0–3.4, f 21.5–43.0 mm |
| Lens shift | Vertical +64%/-44%, Horizontal +34%/-27% |
| Keystone correction | Vertical ±40°, Horizontal ±20° |
| Power supply | AC 100–240V, 50/60Hz |
| Maximum power consumption | 540 W |
| Operation noise | 35 dB (Normal), 30 dB (Quiet) |
| Dimensions (W x H x D) | 498 x 168 x 492 mm |
| Weight | Approx. 16.1 kg |
| Operating temperature | 0–45°C |
| Applicable software | Logo Transfer Software, Multi Monitoring & Control Software, Early Warning Software |
No downloads available yet.
Explore Similar
Products
Ready to Transform Your Space?
DELIVERY
For orders above AED 1,000
WARRANTY
3 years
SECURE PAYMENT
Safe encrypted checkup
EXPERT SUPPORT
Pre and post sale support
Panasonic's WUXGA 1-Chip DLP laser projector for education and corporate spaces, built for easy management and simple integration. Quartet Colour Harmonizer and Rich Colour Enhancer keep images bright and accurate even in well-lit rooms, and the filterless, dust-resistant design supports 20,000 hours of maintenance-free operation.
Key Features:
- 6,000 lm (ANSI) / 6,200 lm (center), WUXGA (1920 x 1200 px)
- 2.0x zoom lens (throw ratio 1.46–2.94:1) with wide V/H lens-shift (V: +64%/-44%, H: +34%/-27%)
- Quartet Colour Harmonizer + Rich Colour Enhancer for accurate, vivid color in bright rooms
- Supports uncompressed 4K/60p input via HDCP 2.3-compliant HDMI or DIGITAL LINK terminal
- Multi-Laser Drive Engine with failover circuitry
- Filterless heat-pipe cooling, hermetically sealed optical block — 20,000-hour maintenance-free operation
- Lens, lens-shift range, and brackets are identical to the previous PT-RZ570 — drop-in replacement with no install rework
- Free 360° installation
Specifications:
- Projector type: 1-Chip DLP
- Panel size: 0.67 in (16:10)
- Light output: 6,000 lm (ANSI) / 6,200 lm (Center)
- Time to 50% brightness: 20,000 hrs (Normal)
- Resolution: WUXGA (1920 x 1200 px)
- Contrast ratio: 20,000:1 (Full On/Off)
- Screen size: 1.02–7.62 m (40–300 in), 16:10
- Lens: 2.0x manual zoom, throw ratio 1.46–2.94:1, F 2.0–3.4, f 21.5–43.0 mm
- Lens shift: Vertical +64%/-44%, Horizontal +34%/-27%
- Keystone correction: Vertical ±40°, Horizontal ±20°
- Power supply: AC 100–240V, 50/60Hz
- Maximum power consumption: 540 W
- Operation noise: 35 dB (Normal), 30 dB (Quiet)
- Dimensions (W x H x D): 498 x 168 x 492 mm
- Weight: Approx. 16.1 kg
- Operating temperature: 0–45°C
- Applicable software: Logo Transfer Software, Multi Monitoring & Control Software, Early Warning Software
| color | Black, White |
| Lens | With Lens |
No reviews yet.
WUXGA Images at up to 6,000lm: Delivering Insightful Experiences from a Compact 1-Chip DLP Platform.
Specifications |
||
| Projector type | 1-Chip DLP™ projector | |
| Light output | 6,000 lm/6,200lm (Center) | |
| Resolution | WUXGA 1920 x 1200 pixels | |
| Contrast ratio | 20,000:1 (Full On/Full Off, Dynamic Contrast | |
| Lens | 2.0x manual zoom (throw ratio: 1.46–2.94:1), manual focus, F 2.0–3.4, f 21.5–43.0 mm | |
| Terminals | 2 x HDMI In 1 x pin jack (Video In) 2 x pin jack (Audio In, L-R) 2 x M3 stereo mini jack (Audio Out) 1 x M3 stereo mini jack (Variable Audio Out) 1 x Digital Link (HDBaseT) 1 x LAN: RJ-45 1 x RS232: DB-9pin (Serial In) 1 x RS232: D-sub HD 15-pin (Computer In) 1 x RS232: D-sub HD 15-pin (Computer Out) 1 x USB (DC Out) | |
| Dimensions (W x H x D) | 498 x 168x 492 mm | |
| Weight | Approx. 16.1 kg | |
| Operation noise | 35dB (Normal), 30dB (Quiet) | |
| Power Consumption | 540 W (5.8–2.3 A) | |
| Supplied Accessories | 1 x Wireless remote-control unit 1 x Power cord with secure lock, 1 Pair of Batteries for remote control (AAA/R03 or AAA/LR03 battery) | |
Optional Accessories |
||
| Ceiling Mount Bracket | for high ceilings | ET-PKD120H |
| Ceiling Mount Bracket | for low ceiling | ET-PKD120S |
| Attachment for Ceiling Mount Bracket | ET-PKD130B | |
| DIGITAL LINK Switcher | ET-YFB200G Note: ET-YFB200G is not compatible with 4K signals | |
| Digital Interface Box | ET-YFB100G Note: ET-YFB100G is not compatible with 4K signals. | |
| Wireless module | AJ-WM50 Series | |
| Early Warning Software | ET-SWA100 Series | |
| D-sub/S-VIDEO Conversion Cable | ET-ADSV | |
Specifications
| color | Black, White |
| Lens | With Lens |
