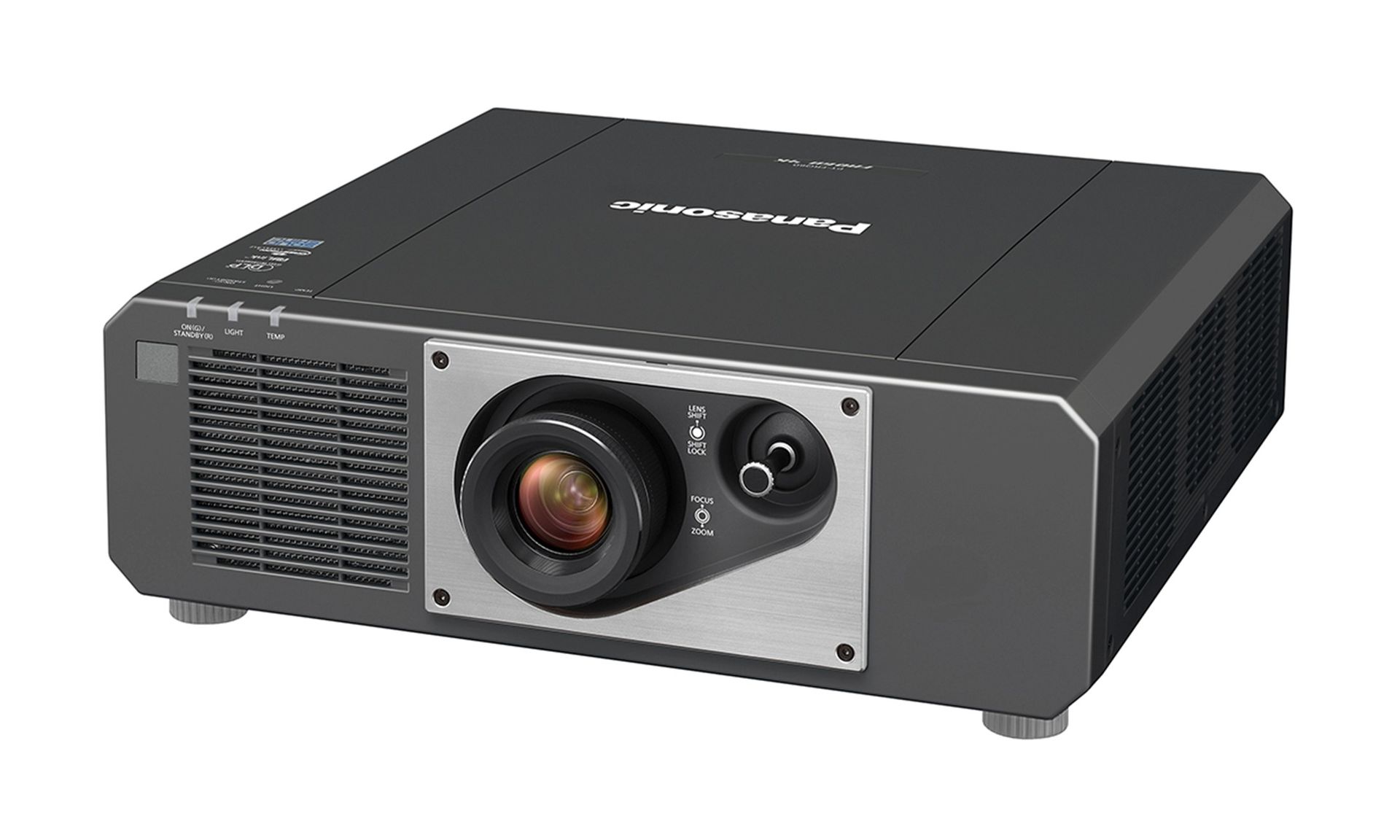

PT-FRQ50

Panasonic's fixed-lens 4K DLP projector, delivering 5,200 lm in a package built for museums, education, and corporate spaces. Quad Pixel Drive gives you true 4K sharpness, while 240Hz/1080p support with sub-8ms latency makes it a strong pick for fast-motion or interactive projection-mapping work.

Key Features:

• 5,200 lm (ANSI) / 5,400 lm (center), True 4K (3840 x 2160 px) via Quad Pixel Drive
• 2.0x optical zoom with wide-range V/H lens-shift (V: +71%/-48%, H: +34%/-27%) for flexible installs
• 240Hz/1080p high frame rate support with 8ms or less input-to-output latency — ideal for real-time tracking/projection-mapping setups
• Multi-Laser Drive Engine with failover circuitry — keeps projecting even if a laser module fails
• Free Grid geometric correction adjustable via remote, no PC needed
• 4K DIGITAL LINK plus 2x CEC-compatible HDMI inputs
• Filterless, hermetically sealed optical block for 20,000-hour maintenance-free operation
• Quiet Mode down to 28 dB for sound-sensitive environments
• Free 360° installation, IPv6, Crestron Connected V2, Crestron XiO Cloud, Art-Net DMX, PJLink support

Specifications:

• Projector type: 1-Chip DLP
• Panel size: 0.65 in (16:9)
• Light output: 5,200 lm (ANSI) / 5,400 lm (Center)
• Time to 50% brightness: 20,000 hrs (Normal/Quiet), 24,000 hrs (Eco)
• Resolution: 4K (3840 x 2160 px) with Quad Pixel Drive
• Contrast ratio: 20,000:1 (Full On/Off)
• Screen size: 1.02–7.62 m (40–300 in), 16:9
• Lens: 2.0x manual zoom, throw ratio 1.46–2.93:1, F 2.0–3.4, f 21.5–43.0 mm
• Lens shift: Vertical +71%/-48%, Horizontal +34%/-27%
• Keystone correction: Vertical ±40°, Horizontal ±20°
• Power supply: AC 100–240V, 50/60Hz
• Maximum power consumption: 480 W
• Operation noise: 35 dB (Normal/Eco), 28 dB (Quiet)
• Dimensions (W x H x D): 498 x 168 x 492 mm
• Weight: Approx. 16.1 kg
• Operating temperature: 0–45°C
• Applicable software: Logo Transfer Software, Multi Monitoring & Control Software, Early Warning Software, Projector Network Setup Software
