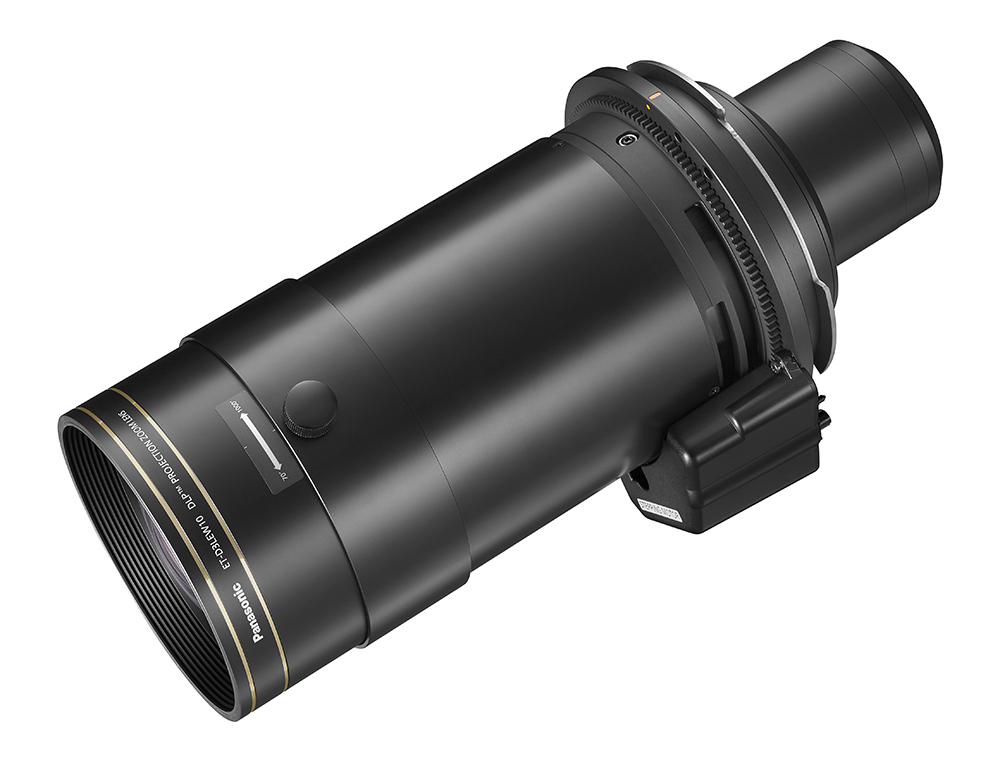

ET-D3LEW10

ET-D3LEW10 — 3-Chip DLP™ Wide-Angle Zoom Lens

This is the wide-angle option in the family, a 1.26-1.72:1 (WUXGA) zoom lens for jobs where the projector has to sit close to the screen but still needs zoom flexibility — good for tight rooms, museum spaces, or short-depth staging. It shares the same broad compatibility as the rest of the D3LE lens group, covering everything from the RQ35K2/RZ34K2 down through the RQ25K/RZ24K, RQ18K/RZ17K, and the new PT-HTQ20.

Key Features:

• Wide-angle throw ratio of 1.26–1.72:1 (WUXGA), stretching to 1.52–2.07:1 on the RQ25K Series
• Also rated for SXGA+ at 1.37–1.86:1
• Broad compatibility across nearly the entire current 3-Chip DLP™ range, including the new PT-HTQ20
• Auto Lens Identification supported across all compatible bodies

Specifications:

• Lens type: Zoom Lens
• F-number: 2.5
• Focal length: 26.6–36.4 mm
• Throw ratio (WUXGA): 1.26–1.72:1 (RQ35K2/RQ35K/RZ34K2/RZ34K/RQ25K/RZ24K/RQ18K/RZ17K/RZ16K), or 1.52–2.07:1 (RQ25K/RZ24K/RQ18K/RZ17K/RZ14K)
• Throw ratio (SXGA+): 1.37–1.86:1
• Throw ratio (4K+): 1.35–1.84:1
• Compatible models: PT-RQ45K/RZ44K, PT-RQ35K2/RZ34K2, PT-RQ35K/RZ34K, PT-RQ32K/RZ31K, PT-RS30K, PT-RQ25K/RZ24K, PT-RQ18K/RZ17K/RZ14K, PT-RQ22K/RZ21K, PT-RS20K/RZ16K, PT-HTQ20
• Dimensions (W x H x D): 154 x 154 x 354 mm
• Weight: Approx. 6.2 kg
