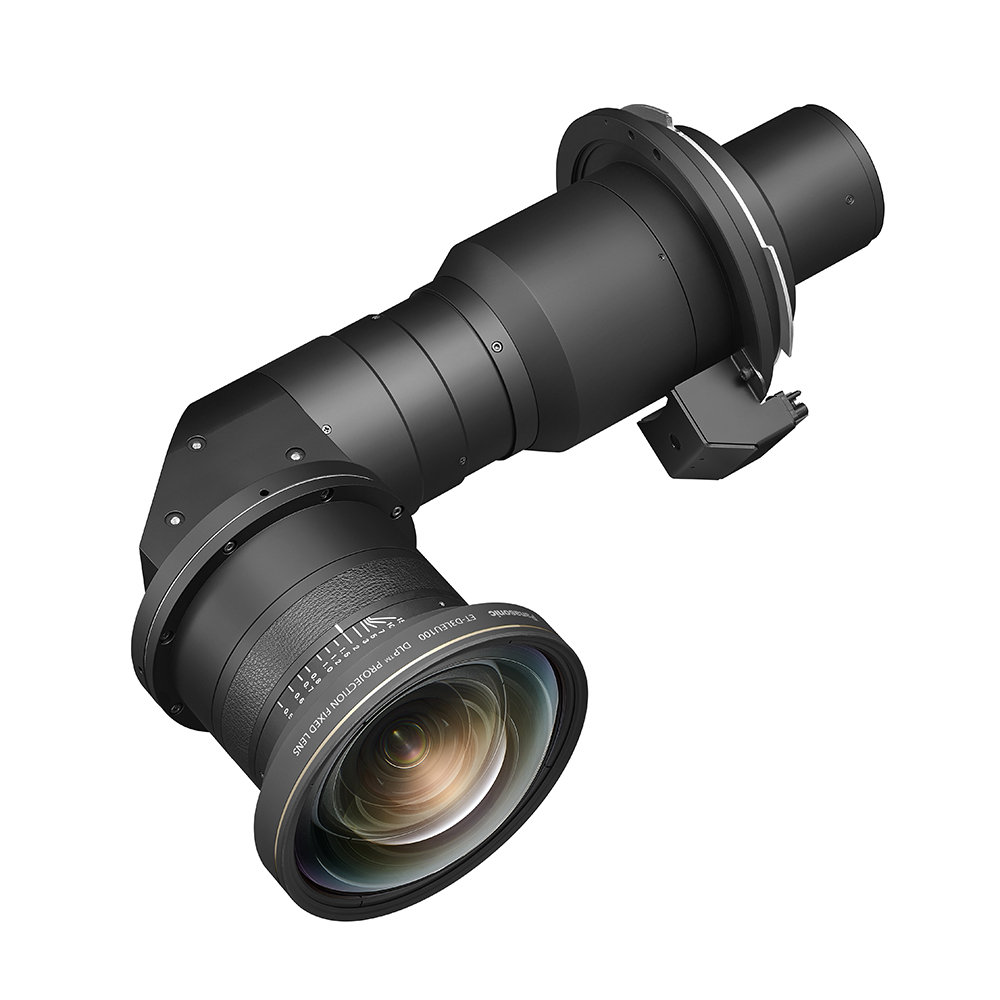

The Panasonic ET-D3LEU100 is a specialized "Ultra-Short-Throw" (UST) lens. Unlike the long-distance lenses we discussed previously, this one is designed to be placed incredibly close to the screen while still projecting a massive image.
Its signature "L-shape" design allows the projector to be tucked away right against the wall or floor, making it perfect for museums, retail displays, and tight backstage areas.
| Lens type | Ultra-Short-Throw Lens | |
|---|---|---|
| F-number | 2.5 | |
| Focal length (f) | 8.0 mm (5/16˝) | |
| Screen size | 200–600 inches | |
| Throw ratio | PT-RQ45K/RZ44K/HTQ20 | |
| 16:9 (4K) | 0.370:1 | - |
| 16:10 (WUXGA) | 0.370:1 | - |
| 4:3 (SXGA+) | 0.446:1 | - |
| PT-RQ35K2/RZ34K2 | ||
| 16:9 (4K) | 0.370:1 | |
| 16:10 (WUXGA) | 0.370:1 | |
| 4:3 (SXGA+) | 0.446:1 | |
| PT-RQ25K/RZ24K/RQ18K/RZ17K/RZ14K | ||
| 16:9 (4K) | 0.447:1 | |
| 16:10 (WUXGA) | 0.447:1 | |
| 4:3 (SXGA+) | 0.538:1 | |
| 21:9 (Ultra-wide) | 0.448:1 | |
| Lens-shift1 | PT-RQ45K/RZ44K/HTQ20 | |
| Vertical | ±55% | - |
| Horizontal | +25 – 0% | - |
| PT-RQ35K2/RZ34K2 | ||
| Vertical | ±55% | |
| Horizontal | +25 – 0% | |
| PT-RQ25K/RZ24K/RQ18K/RZ17K/RZ14K | ||
| Vertical | ±66% | |
| Horizontal | +30 – -25% | |
| Zoom | No | |
| Dimensions (W x H x D) | 275 x 154 x 428.7 mm (10 13/16˝ x 6 1/16˝ x 16 7/8˝) | |
| Weight | Approx. 8.0 kg (17.6 lbs) | |
| Applicable projectors | PT-RQ45K/RZ44K/ PT-RQ35K2/RZ34K2/RQ35K/RZ34K/ PT-RQ25K/RZ24K/RQ18K/RZ17K/PT-RZ14K/ PT-HTQ20/PT-RQ32K/RZ31K/RS30K/ PT-RQ22K/RZ21K/RS20K/RZ16K/ PT-RQ13K/RZ12K/RS11K | PT-RQ35K2/RZ34K2/RQ35K/RZ34K/ PT-RQ25K/RZ24K/RQ18K/RZ17K/PT-RZ14K/ PT-RQ32K/RZ31K/RS30K/ PT-RQ22K/RZ21K/RS20K/RZ16K/ PT-RQ13K/RZ12K/RS11K |
