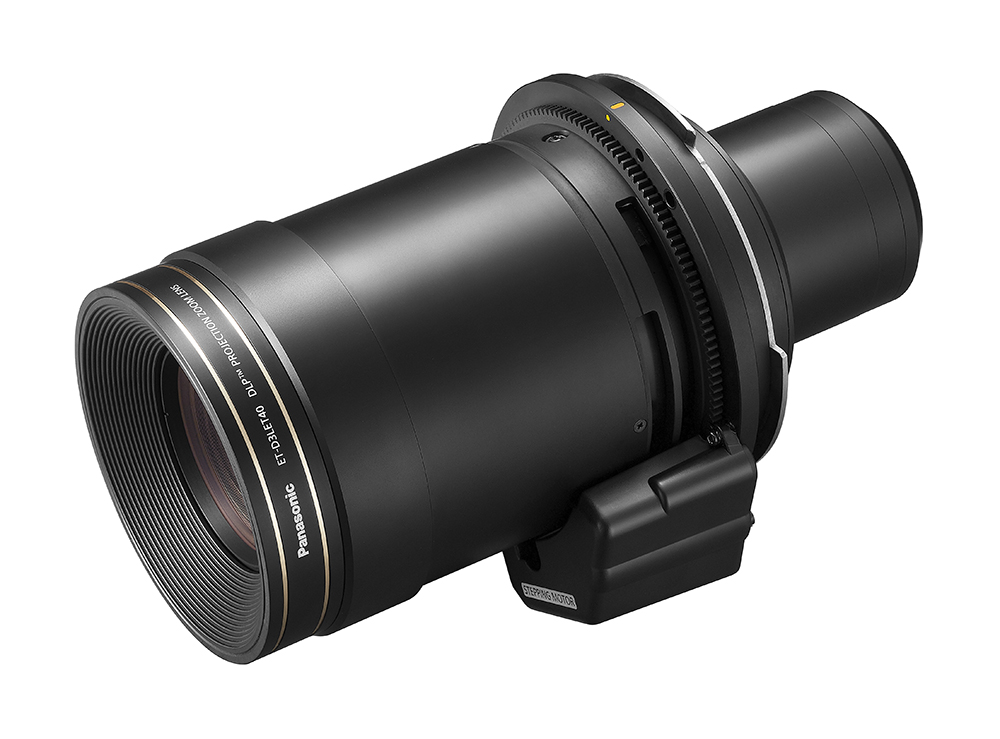

ET-D3LET40

ET-D3LET40 — 3-Chip DLP™ Ultra-Long-Throw Zoom Lens

This is your ultra-long-throw option in the family, a 4.61-7.41:1 (WUXGA) zoom lens for jobs where the projector has to sit very far back from the screen — think large auditoriums, arenas, or rear-projection setups with serious distance. It shares the same broad compatibility as the rest of the D3LE lens group, covering everything from the RQ35K2/RZ34K2 down through the RQ25K/RZ24K, RQ18K/RZ17K, and the new PT-HTQ20.

Key Features:

• Ultra-long throw ratio of 4.61–7.41:1 (WUXGA), stretching to 5.54–8.90:1 on the RQ25K Series
• Broad compatibility across nearly the entire current 3-Chip DLP™ range, including the new PT-HTQ20
• Lightest lens in the family at 5.0 kg despite the extended throw range
• Auto Lens Identification supported across all compatible bodies

Specifications:

• Lens type: Zoom Lens
• F-number: 2.5
• Focal length: 96.6–154.9 mm
• Throw ratio (WUXGA): 4.61–7.41:1 (RQ35K2/RQ35K/RZ34K2/RZ34K/RQ25K/RZ24K/RQ18K/RZ17K/RZ16K), or 5.54–8.90:1 (RQ25K/RZ24K/RQ18K/RZ17K/RZ14K)
• Throw ratio (4K+): 4.94–7.94:1
• Compatible models: PT-RQ45K/RZ44K, PT-RQ35K2/RZ34K2, PT-RQ35K/RZ34K, PT-RQ32K/RZ31K, PT-RS30K, PT-RQ25K/RZ24K, PT-RQ18K/RZ17K/RZ14K, PT-RQ22K/RZ21K, PT-RS20K/RZ16K, PT-HTQ20
• Dimensions (W x H x D): 154 x 154 x 279 mm
• Weight: Approx. 5.0 kg
