ET-D3LES20

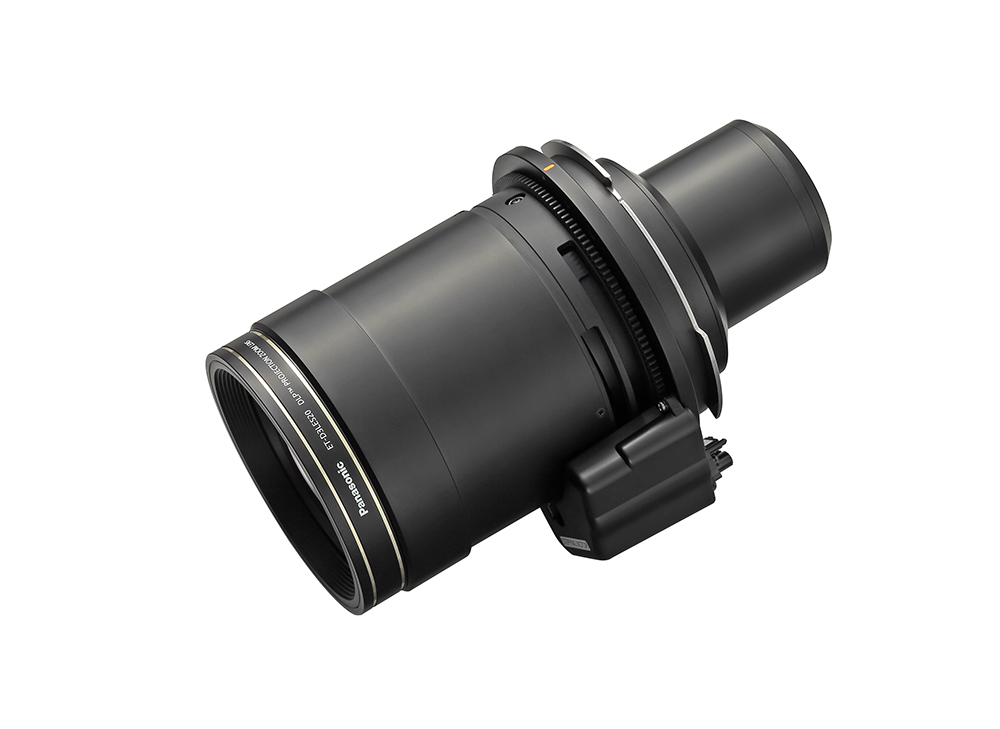

ET-D3LES20 — 3-Chip DLP™ Zoom Lens

This is your standard mid-range zoom option, a 1.67-2.41:1 (WUXGA) throw ratio lens that covers most everyday installation distances. Like the other lenses in this family, it's compatible across a huge chunk of the current 3-Chip DLP fleet — from the RQ35K2/RZ34K2 down through the RQ25K/RZ24K, RQ18K/RZ17K, and the new PT-HTQ20 — so it's a safe, flexible recommendation for standard-throw rooms without switching to a different lens family.

Key Features:

• Standard zoom throw ratio of 1.67–2.41:1 (WUXGA), stretching to 2.00–2.90:1 on the RQ25K Series
• Broad compatibility across nearly the entire current 3-Chip DLP™ range, including the new PT-HTQ20
• Compact and light for its class (5.2 kg) — easy to handle on-site
• Auto Lens Identification supported across all compatible bodies

Specifications:

• Lens type: Zoom Lens
• F-number: 2.5
• Focal length: 35.0–50.9 mm
• Throw ratio (WUXGA): 1.67–2.41:1 (RQ35K2/RQ35K/RZ34K2/RZ34K/RQ25K/RZ24K/RQ18K/RZ17K/RZ16K), or 2.00–2.90:1 (RQ25K/RZ24K/RQ18K/RZ17K/RZ14K)
• Throw ratio (4K+): 1.79–2.59:1
• Compatible models: PT-RQ45K/RZ44K, PT-RQ35K2/RZ34K2, PT-RQ35K/RZ34K, PT-RQ32K/RZ31K, PT-RS30K, PT-RQ25K/RZ24K, PT-RQ18K/RZ17K/RZ14K, PT-RQ22K/RZ21K, PT-RS20K/RZ16K, PT-HTQ20
• Dimensions (W x H x D): 154 x 154 x 265 mm
• Weight: Approx. 5.2 kg
