ET-C1U100

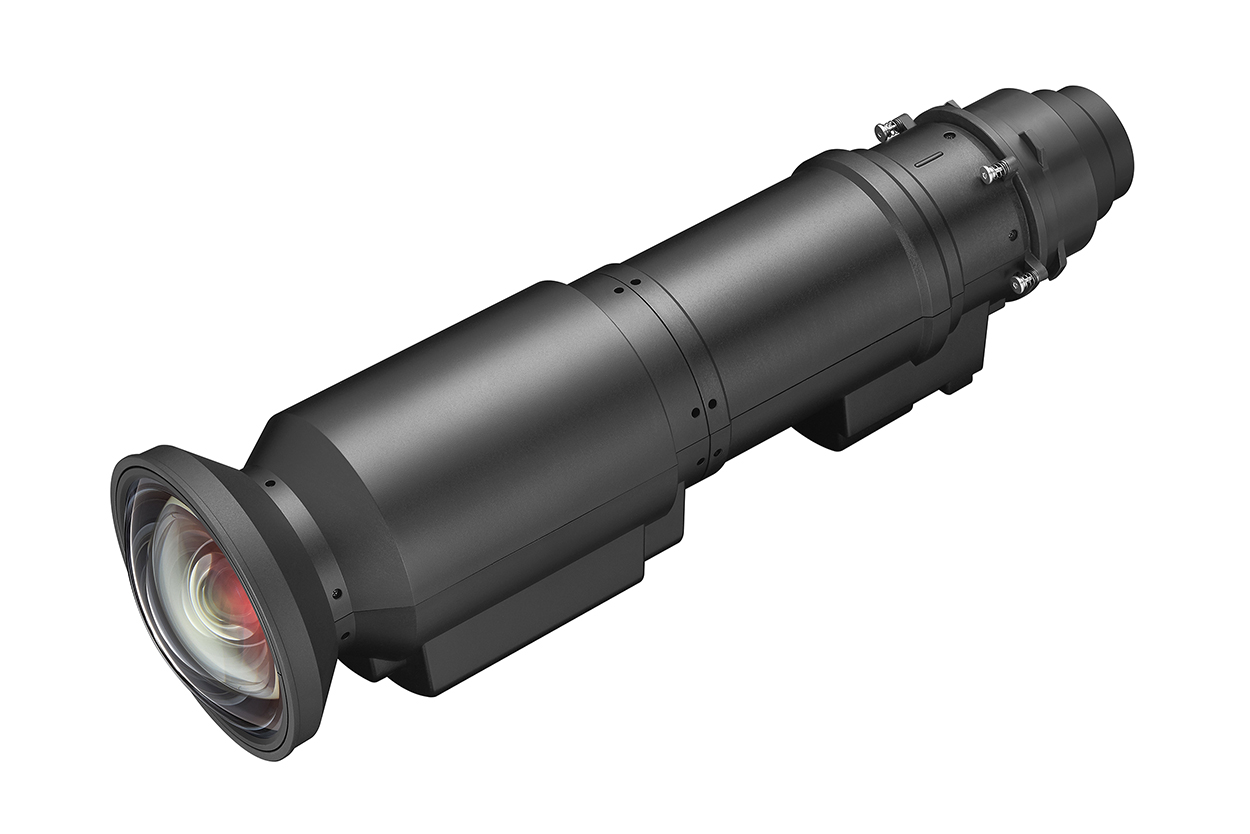

ET-C1U100 — Ultra-Short-Throw Zoom Lens

This is the widest-throw zoom option in Panasonic's C1 lens series, a 0.308–0.330:1 (WUXGA) throw ratio lens for jobs where the projector sits extremely close to the screen while still keeping a touch of zoom flexibility — good for tight museum spaces, immersive rooms, or large screens in shallow venues. It carries the full C1 feature set: UED glass, AR coating, and powered peripheral focus, and covers screens up to 1000 inches despite the ultra-short throw.

Key Features:

• Ultra-short throw ratio of 0.308–0.330:1 (WUXGA), 1.07x zoom range
• Covers screen sizes from 100 to 1000 inches
• UED glass and proprietary AR coating for improved native contrast and color uniformity
• Powered peripheral focus supported
• Powered lens shift: ±50% vertical, ±23% horizontal
• Bracket-free installation supported on compatible projectors, thanks to a revised lens mounter structure

Specifications:

• Lens type: Ultra-Short-Throw Zoom Lens
• F-number: 2.1
• Focal length: 5.4–5.8 mm
• Screen size: 100–1000 inches
• Throw ratio (WUXGA): 0.308–0.330:1
• Zoom: ×1.07
• Lens shift: Vertical ±50%, Horizontal ±23%
• Compatible models: PT-REQ15/REQ15L, PT-REQ12/REQ12L, PT-REQ10/REQ10L, PT-REQ80/REQ80L, PT-REZ15/REZ15L, PT-REZ12/REZ12L, PT-REZ10/REZ10L, PT-REZ80/REZ80L
• Dimensions (W x H x D): 130 x 139 x 477 mm
• Weight: Approx. 4.7 kg
