| Passive Operation | Requires no batteries or phantom power. Simply plug in and play with zero setup time. |
|---|---|
| High-Quality Transformer | Custom-engineered internal transformer ensures a wide frequency response and high dynamic range without adding unwanted distortion. |
| Ground Lift Switch | Features a dedicated "Lift/GND" switch to instantly break ground loops and eliminate 50/60Hz hum from the signal path. |
| Input Pad (-30dB) | A switchable attenuator allows the PAN01 to handle "hot" signals, such as the output from a guitar amplifier, without clipping the mixer input. |
| Link Output | Includes a 1/4" (6.35mm) "THRU" jack, allowing you to send the unaffected signal to an on-stage amplifier while simultaneously sending the balanced signal to the PA system. |
| Rugged Steel Chassis | Housed in a heavy-duty, powder-coated sheet steel enclosure designed to withstand being stepped on or tossed into touring trunks. |
| Recessed Controls | Switches and jacks are recessed into the frame to protect them from accidental damage during live performances. |
| Compact Footprint | Small enough to fit into a guitar case or a small accessory pouch. |
| Type | Passive DI Box |
| Inputs | 1 x 1/4" (6.35mm) Jack |
| Outputs | 1 x XLR (Balanced), 1 x 1/4" Link Out |
| Transformer Ratio | 10 : 1 |
| Max Input Level | +54 dBu |
| Frequency Response | 10Hz – 40kHz |
| Dimensions | 110mm x 73mm x 42mm |
| Weight | 0.41 kg |
No downloads available yet.
Explore Similar
Products
Ready to Transform Your Space?

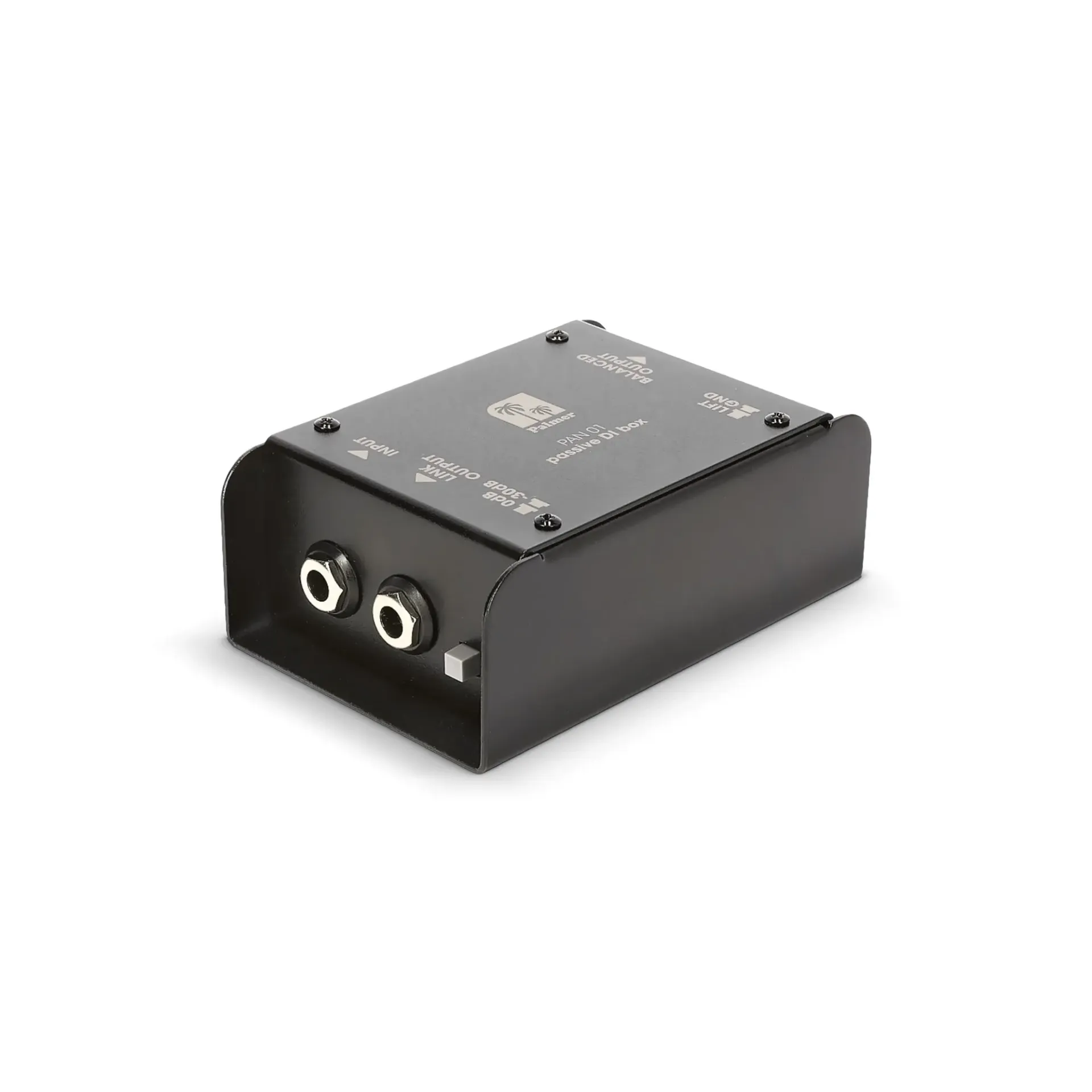

The Palmer PAN01 is the industry-standard "workhorse" Passive Direct Injection (DI) box. Known for its indestructible build and sonic transparency, the PAN01 is a mandatory tool for every stage and studio toolbox. It allows you to connect high-impedance unbalanced signals (like electric guitars, basses, or keyboards) directly to professional balanced microphone inputs on a mixing console or audio interface.
By using a high-quality internal transformer, the PAN01 prevents signal degradation over long cable runs and eliminates the hum and buzz caused by ground loops.
Key Technical Features
Passive Operation: Requires no batteries or phantom power. Simply plug in and play with zero setup time.
High-Quality Transformer: Custom-engineered internal transformer ensures a wide frequency response and high dynamic range without adding unwanted distortion.
Ground Lift Switch: Features a dedicated "Lift/GND" switch to instantly break ground loops and eliminate 50/60Hz hum from the signal path.
Input Pad (-30dB): A switchable attenuator allows the PAN01 to handle "hot" signals, such as the output from a guitar amplifier, without clipping the mixer input.
Link Output: Includes a 1/4" (6.35mm) "THRU" jack, allowing you to send the unaffected signal to an on-stage amplifier while simultaneously sending the balanced signal to the PA system.
Built for the Road
Rugged Steel Chassis: Housed in a heavy-duty, powder-coated sheet steel enclosure designed to withstand being stepped on or tossed into touring trunks.
Recessed Controls: Switches and jacks are recessed into the frame to protect them from accidental damage during live performances.
Compact Footprint: Small enough to fit into a guitar case or a small accessory pouch.
Technical Specifications
Type: Passive DI Box
Inputs: 1 x 1/4" (6.35mm) Jack
Outputs: 1 x XLR (Balanced), 1 x 1/4" Link Out
Transformer Ratio: 10 : 1
Max Input Level: +54 dBu
Frequency Response: 10Hz – 40kHz
Dimensions: 110mm x 73mm x 42mm
Weight: 0.41 kg
