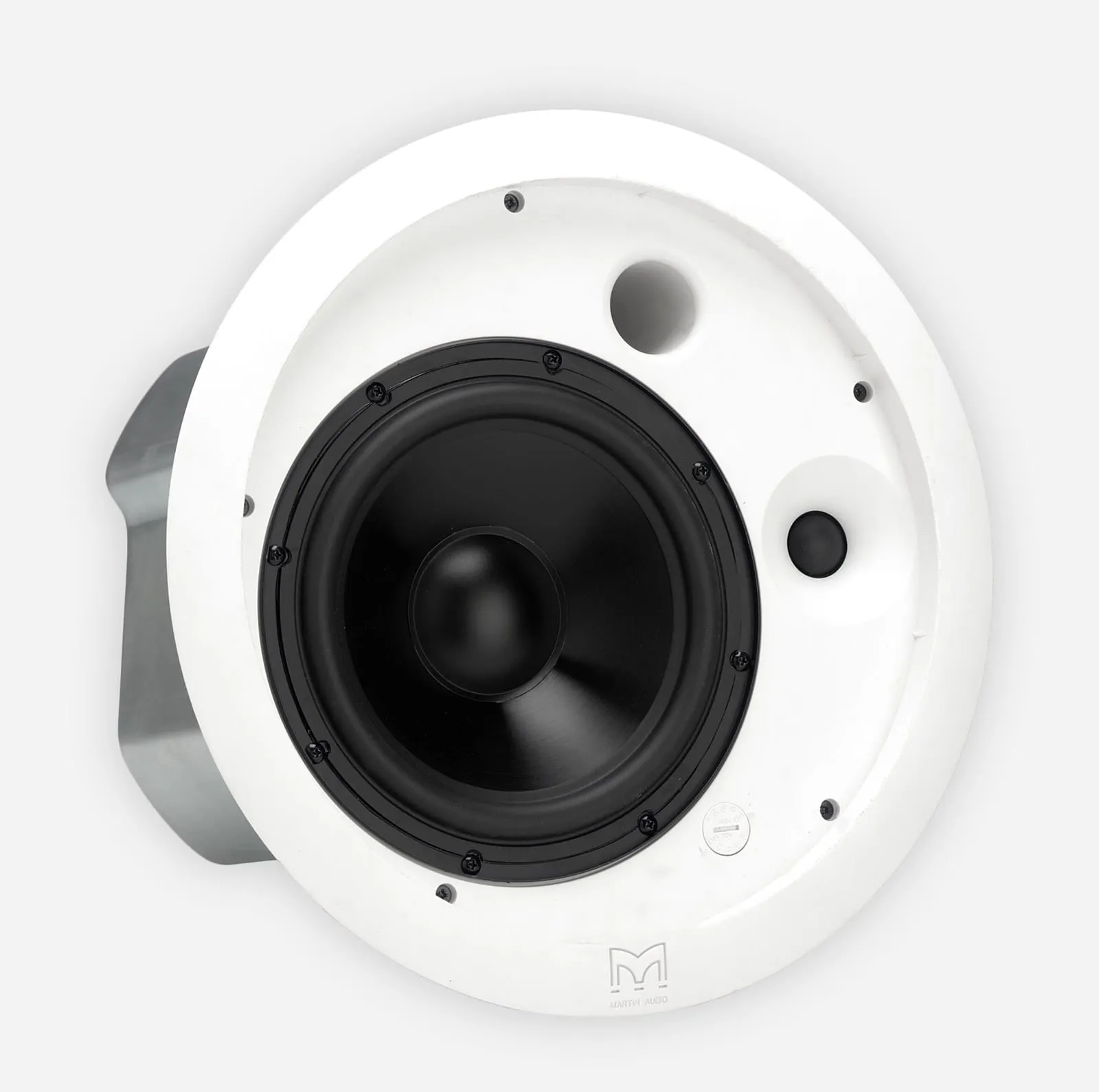

C8.1T

The C8.1T has been specifically designed for higher ceilings where its high SPL capability and controlled 90° dispersion enable it to provide excellent intelligibility in more reverberant rooms. It features an 8" (200mm) unit with a carbon fibre loaded polypropylene cone and a 1" (25mm) horn-loaded dome tweeter mounted side-by-side for optimum dispersion and smooth response off-axis.

Features

• Two-way high performance flush mounting ceiling speaker
• 8" (200mm) UL94V-0 carbon fibre loaded polypropylene cone bass
• Wide dispersion – 90° conical up to 7kHz
• High & low impedance operation – transformer included
• 110dB max SPL @ 1 metre (16 ohm)
• 125 watt power handling (60W through transformer)
• Polyswitch and thermal fuse protected
• Steel backcan
• UL2043 & UL1480

The enclosure is ported to extend the low frequency performance and the 5-point mounting system ensures that installation is fast and secure. Input and link terminals make paralleling units a simple operation and a steel cover plate protects the input connector against fire.

These products comply with UL2043 Fire Tests for Heat & Visible Smoke Release for Discrete Products and their Accessories Installed in Air Handling Spaces.

Listed UL1480 General Signalling Speakers.

SUITABLE FOR USE IN AIR HANDLING SPACES
