Installation Amplifiers

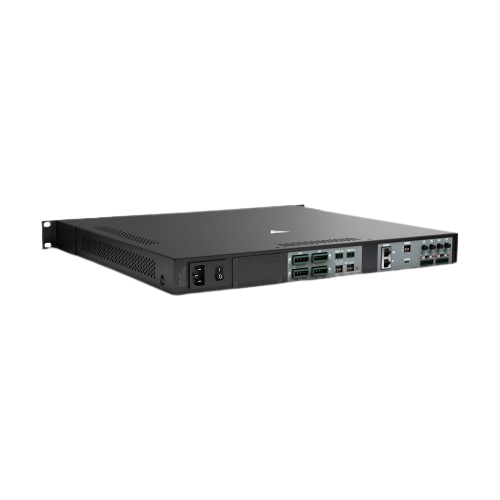

LDIPA424T
Experience the
LDIPA424T
Light Show
| Speaker protection circuits | DSP limiter, overcurrent, direct current, overheating, short circuit as well as switchable auto standby mode |
|---|---|
| Optional accessories | 19" L-bearing rails, length 450 mm |
No downloads available yet.
Explore Similar
Products
Ready to Transform Your Space?
DELIVERY
For orders above AED 1,000
WARRANTY
1 years
SECURE PAYMENT
Safe encrypted checkup
EXPERT SUPPORT
Pre and post sale support
4-channel DSP Installation Amplifier 4 x 240 W or 4 x 120 W @ 4 Ohm / 70V/100V
- Professional 4-channel installation amplifier
- Powerful class D power amplifier with 4 x 240 W (IPA 424 T) or 4 x 120 W (IPA 412 T) at 4 Ohm (transformer bypass) or 70V/100V outputs through toroidal core transformer
- Stereo/parallel/bridge mode selector switch per channel pair
- 4 balanced line inputs and 4 speaker outputs with terminal block connections
- User-friendly front panel with signal, limit, protection, mute and bridge mode LEDs per channel and clipping LEDs for the inputs
- Speaker protection circuits: DSP limiter, overcurrent, direct current, overheating, short circuit as well as switchable auto standby mode
- DSP presets with HPF and LPF which can be activated via DIP switches
- REMOTE audio and control bus based on CAN architecture (Controller Area Network)
- Equipped for future LD Systems remote control panels and paging microphones
- Slot for future optional expansion cards for Ethernet or Ethernet + Dante
- Optional accessories: 19" L-bearing rails, length 450 mm
No reviews yet.
4-channel DSP Installation Amplifier 4 x 240 W or 4 x 120 W @ 4 Ohm / 70V/100V
- Professional 4-channel installation amplifier
- Powerful class D power amplifier with 4 x 240 W (IPA 424 T) or 4 x 120 W (IPA 412 T) at 4 Ohm (transformer bypass) or 70V/100V outputs through toroidal core transformer
- Stereo/parallel/bridge mode selector switch per channel pair
- 4 balanced line inputs and 4 speaker outputs with terminal block connections
- User-friendly front panel with signal, limit, protection, mute and bridge mode LEDs per channel and clipping LEDs for the inputs
- Speaker protection circuits: DSP limiter, overcurrent, direct current, overheating, short circuit as well as switchable auto standby mode
- DSP presets with HPF and LPF which can be activated via DIP switches
- REMOTE audio and control bus based on CAN architecture (Controller Area Network)
- Equipped for future LD Systems remote control panels and paging microphones
- Slot for future optional expansion cards for Ethernet or Ethernet + Dante
- Optional accessories: 19" L-bearing rails, length 450 mm
