AVoIP

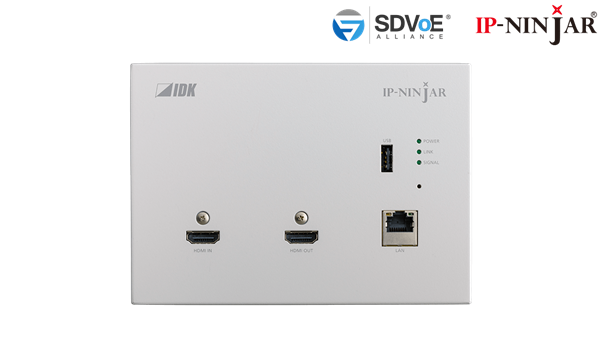

NJR-P01UCW-T - 4K@60 Wallplate HDMI Encoder CAT model
PoE+ (12W) or optional DC 5V
Power Consumption
Experience the
NJR-P01UCW-T - 4K@60 Wallplate HDMI Encoder CAT model
Light Show
| Video | 4K@60 (4:4:4), all standard resolutions, HDCP 1.4/2.2, HDR |
|---|---|
| Network | 10 Gigabit Ethernet SDVoE (AES-128 encrypted), up to 100m on CAT6A |
| Latency | Zero frame latency |
| Power | PoE+ (12W) or optional DC 5V |
| Control | RS-232C, LAN (1GbE), or USB HID |
| Form Factor | Wallplate mount, 162×114×53mm, 0.8kg |
No downloads available yet.
Explore Similar
Products
Ready to Transform Your Space?
DELIVERY
For orders above AED 1,000
WARRANTY
3 years
SECURE PAYMENT
Safe encrypted checkup
EXPERT SUPPORT
Pre and post sale support
4K@60 Wallplate HDMI Encoder (SDVoE) C
Compact wallplate encoder for 4K@60 over CAT6A Ethernet. Zero frame latency. PoE-powered. Available in white or black. Takes HDMI in, encodes to SDVoE, transmits over standard network cable up to 100m. Zero latency for live videowalls, events, or venue distribution. Mounts flush in wallplates. PoE powers it—no separate PSU needed. Best for: Corporate venues, live events, rental companies, distributed installations where HDMI won't reach.
Key Specs
- Video: 4K@60 (4:4:4), all standard resolutions, HDCP 1.4/2.2, HDR
- Network: 10 Gigabit Ethernet SDVoE (AES-128 encrypted), up to 100m on CAT6A
- Latency: Zero frame latency
- Power: PoE+ (12W) or optional DC 5V
- Control: RS-232C, LAN (1GbE), or USB HID
- Form Factor: Wallplate mount, 162×114×53mm, 0.8kg
| color | Black, White |
No reviews yet.
4K@60 HDMI Transceiver, Rugged Chassis (CAT model)
Features
■ Rugged chassis for Event/Staging
■ Up to 4K@60 (4:4:4)
■ HDCP 1.4/2.2
■ Up to 100 m (CAT6A)
■ Transmitting and receiving signals simultaneously
■ Neutrik connectors
Model Number |
Description |
| NJR-P01UCW-T | 4K@60 Wallplate HDMI Encoder CAT model with "White" plate |
| NJR-P01UCW-T-B | 4K@60 Wallplate HDMI Encoder CAT model with "Black" plate |
Specifications
| color | Black, White |
