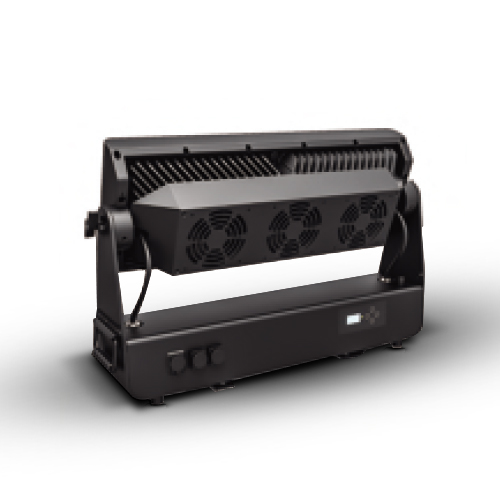

VW 1.5 k4
IP65-rated 4-in-1 RGBW LED consisting of 18 LEDs radiating 35000 lumens with versatile beam angles and DMX512, RDM control protocol
48 x 40W 4-in-1 RGBW
LED:
35000 lumens
Lumen:
IP 65
IP grade:
4.5°, 8°, 20°
Beam angle:
Product Gallery Guide
Click the thumbnail buttons below the main image to explore different views:
- Technical Specifications
- Downloads
| LED: | 48 x 40W 4-in-1 RGBW |
| Lumen: | 35000 lumens |
| IP grade: | IP 65 |
| Beam angle: | 4.5°, 8°, 20° |
| Cooling: | Fan cooling |
| Control protocol: | DMX512, RDM |
| DMX channels: | 4, 6, 9, 24 , 29 channels |
| Housing material: | Die -cast magnesium alloy |
| Housing color: | Black |
| Permitted ambient temperature: | 20 to +45°C |
Data Sheet
VW-1.5-k4.pdfapplication/pdf · 350 KB
DMX Chart
VW-1.5-K4-1.pdfapplication/pdf · 81 KB
CAD Drawings
Vw-1.5-k4.dwgimage/vnd.dwg · 291 KB
VW 1.5 k4
IP65-rated 4-in-1 RGBW LED consisting of 18 LEDs radiating 35000 lumens with versatile beam angles and DMX512, RDM control protocol
Specifications
| LED: | 48 x 40W 4-in-1 RGBW |
| Lumen: | 35000 lumens |
| IP grade: | IP 65 |
| Beam angle: | 4.5°, 8°, 20° |
| Cooling: | Fan cooling |
| Control protocol: | DMX512, RDM |
| DMX channels: | 4, 6, 9, 24 , 29 channels |
| Housing material: | Die -cast magnesium alloy |
| Housing color: | Black |
| Permitted ambient temperature: | 20 to +45°C |
Downloads
Data Sheet
VW-1.5-k4.pdfapplication/pdf · 350 KB
DMX Chart
VW-1.5-K4-1.pdfapplication/pdf · 81 KB
CAD Drawings
Vw-1.5-k4.dwgimage/vnd.dwg · 291 KB
