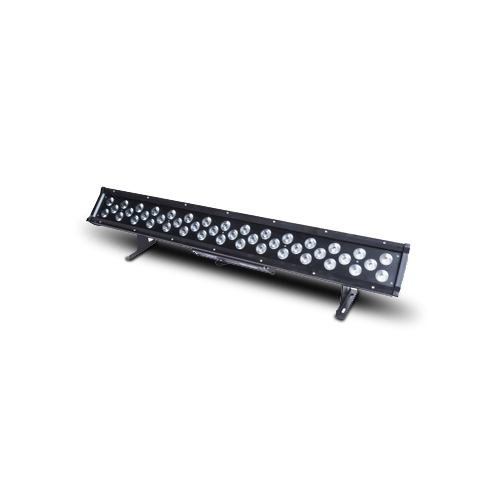

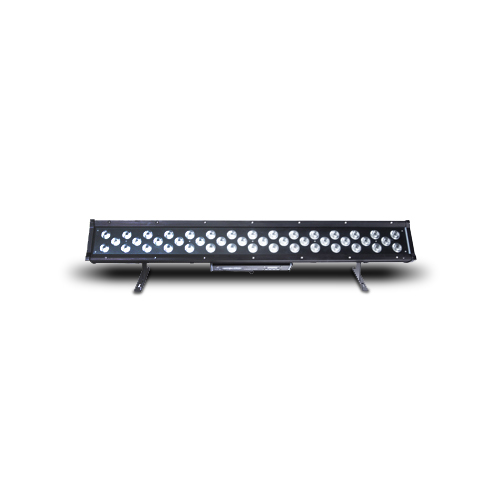

VBAR 1523
44* Tri-3W RGB LED bar with auto running and built-in programs, M/S, DMX 512, static color
44* tri-3W RGB
LED:
45°
Beam angle:
5, 8, 9 channels
DMX channels:
Auto-running, built-in programs, M/S, DMX 512, static color
Control mode:
Product Gallery Guide
Click the thumbnail buttons below the main image to explore different views:
- Technical Specifications
- Downloads
| LED: | 44* tri-3W RGB |
| Beam angle: | 45° |
| DMX channels: | 5, 8, 9 channels |
| Control mode: | Auto-running, built-in programs, M/S, DMX 512, static color |
| Operation mode: | LED display |
| Lumen: | R902, G974, B1094, RGB2810 lux at 2 meters |
| Power supply: | AC100V-240V, 60HZ/50HZ |
| Power consumption: | 152W |
Data Sheet
VBAR-1523.pdfapplication/pdf · 160 KB
DMX Chart
VBAR-1523-2.pdfapplication/pdf · 55 KB
Personality
Vision-VBAR-1523.zipapplication/zip · 39 KB
VBAR 1523
44* Tri-3W RGB LED bar with auto running and built-in programs, M/S, DMX 512, static color
Specifications
| LED: | 44* tri-3W RGB |
| Beam angle: | 45° |
| DMX channels: | 5, 8, 9 channels |
| Control mode: | Auto-running, built-in programs, M/S, DMX 512, static color |
| Operation mode: | LED display |
| Lumen: | R902, G974, B1094, RGB2810 lux at 2 meters |
| Power supply: | AC100V-240V, 60HZ/50HZ |
| Power consumption: | 152W |
Downloads
Data Sheet
VBAR-1523.pdfapplication/pdf · 160 KB
DMX Chart
VBAR-1523-2.pdfapplication/pdf · 55 KB
Personality
Vision-VBAR-1523.zipapplication/zip · 39 KB
