VBL-02
10,612 Iumens, 4-peak
Lux
9781 cd light source
Intensity
2 pcs 100W COB LED (warm white )
LED
0-20Hz
Strobe
Product Gallery Guide
Click the thumbnail buttons below the main image to explore different views:
- Technical Specifications
- Downloads
| Lux | 10,612 Iumens, 4-peak |
| Intensity | 9781 cd light source |
| LED | 2 pcs 100W COB LED (warm white ) |
| Strobe | 0-20Hz |
| Beam angle | 70° |
| Dimmer | 0-100%, 4 dimming curve options |
| 4-Drive current | 2800mA |
| Color temperature | 3200K |
| Color rendering index | >90Ra |
| Input voltage | 100-240VAC 50/60Hz |
| Power | 210W |
| Protocol | DMX512 |
| Personality | 1/3/7 channels |
| Environment | IP20/indoor |
CAD Drawings
vbl-02.dwgapplication/acad · 125 KB
PDF Drawings
vbl-02-pdf_drawings.pdfapplication/pdf · 43 KB

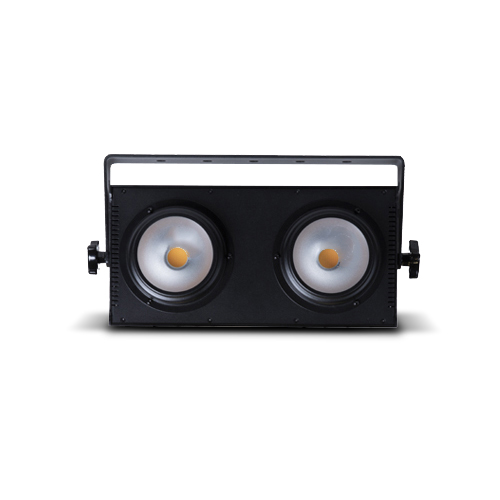

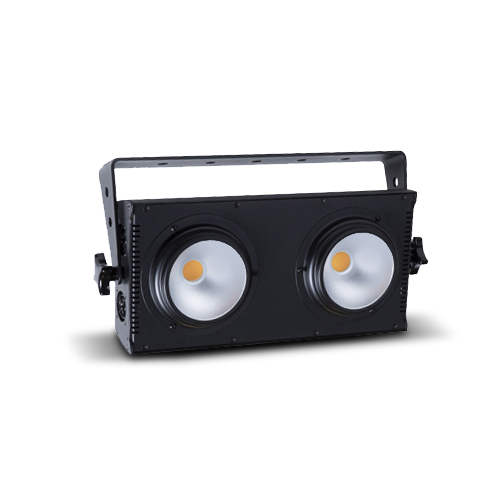

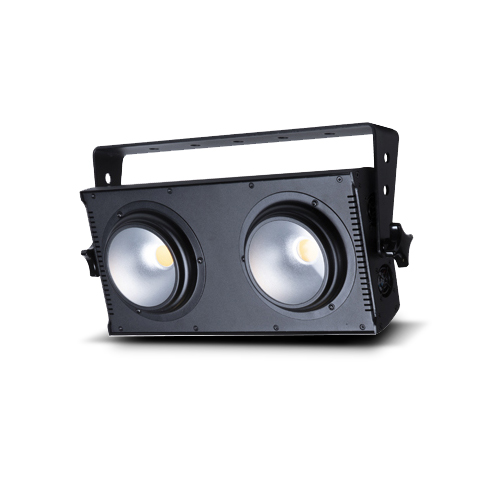

VBL-02
Specifications
| Lux | 10,612 Iumens, 4-peak |
| Intensity | 9781 cd light source |
| LED | 2 pcs 100W COB LED (warm white ) |
| Strobe | 0-20Hz |
| Beam angle | 70° |
| Dimmer | 0-100%, 4 dimming curve options |
| 4-Drive current | 2800mA |
| Color temperature | 3200K |
| Color rendering index | >90Ra |
| Input voltage | 100-240VAC 50/60Hz |
| Power | 210W |
| Protocol | DMX512 |
| Personality | 1/3/7 channels |
| Environment | IP20/indoor |
Downloads
CAD Drawings
vbl-02.dwgapplication/acad · 125 KB
PDF Drawings
vbl-02-pdf_drawings.pdfapplication/pdf · 43 KB
