VLED 901Z
March 12, 2020

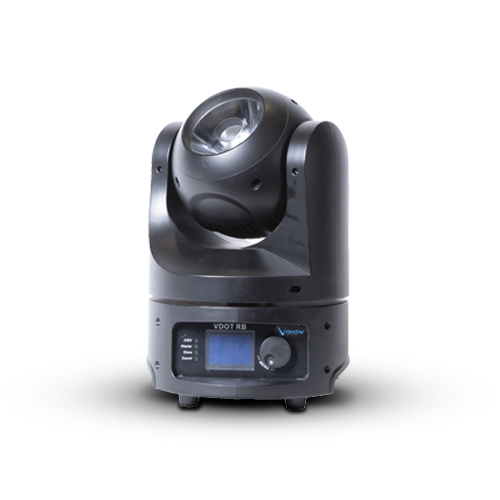

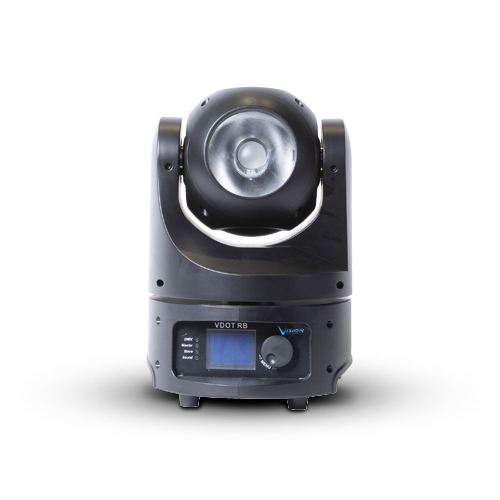

VDOT-RB
On-board display control including gravity sensor with 4° beam angle
4° beam angle with 1 x 60W RGBW LED light source
Output:
100-240 VAC 50/60Hz
Input voltage:
70W max at full output
Power consumption:
On-board display including gravity sensor
Control:
Product Gallery Guide
Click the thumbnail buttons below the main image to explore different views:
- Technical Specifications
- Downloads
| Output: | 4° beam angle with 1 x 60W RGBW LED light source |
| Input voltage: | 100-240 VAC 50/60Hz |
| Power consumption: | 70W max at full output |
| Control: | On-board display including gravity sensor |
| Control personality: | 10/14/18 channels |
| Optical system: | Dimmer 0-100%, dimmer curves include linear, square, i-square and s- curve |
| Strobe: | 0-20Hz |
| Movement: | Pan: 540° and continuous; tilt 270° and continuous; pan/tilt resolution 16 bit |
| Housing: | Metal and flame-retardant plastic |
| Color: | Black |
| Maximum ambient temperature: | 40°C |
Data Sheet
VDOT-RB.pdfapplication/pdf · 2 MB
DMX Chart
VDOT-RB-1.pdfapplication/pdf · 107 KB
VDOT-RB
On-board display control including gravity sensor with 4° beam angle
Specifications
| Output: | 4° beam angle with 1 x 60W RGBW LED light source |
| Input voltage: | 100-240 VAC 50/60Hz |
| Power consumption: | 70W max at full output |
| Control: | On-board display including gravity sensor |
| Control personality: | 10/14/18 channels |
| Optical system: | Dimmer 0-100%, dimmer curves include linear, square, i-square and s- curve |
| Strobe: | 0-20Hz |
| Movement: | Pan: 540° and continuous; tilt 270° and continuous; pan/tilt resolution 16 bit |
| Housing: | Metal and flame-retardant plastic |
| Color: | Black |
| Maximum ambient temperature: | 40°C |
Downloads
Data Sheet
VDOT-RB.pdfapplication/pdf · 2 MB
DMX Chart
VDOT-RB-1.pdfapplication/pdf · 107 KB
