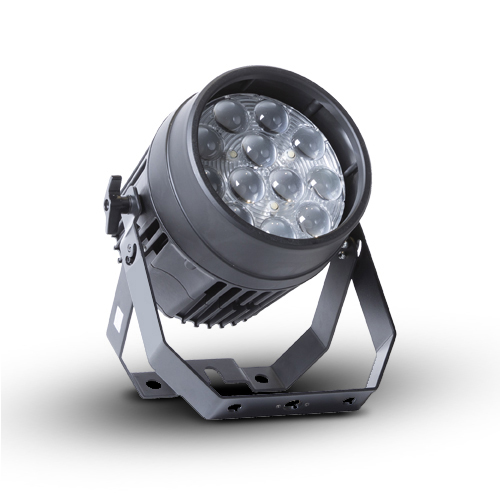

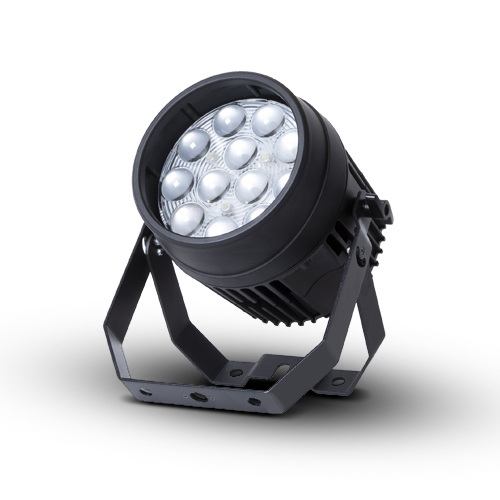

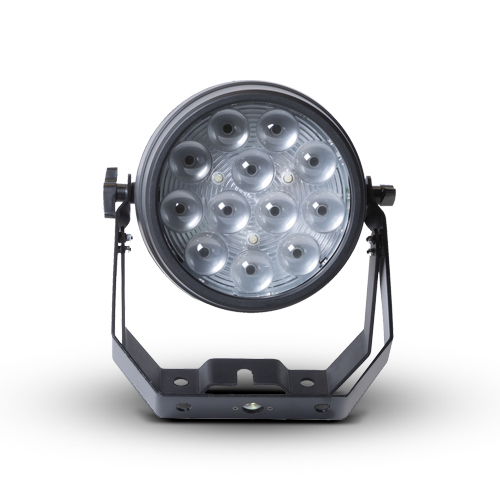

VLED-901Z
12 x 10W RGBW LEDs
LED system
21 x RGB 5050 SMD
Backlight system
Auto/ built-in programs, master/slave, DMX
Control mode
3.3KHz
PWM backlight
Product Gallery Guide
Click the thumbnail buttons below the main image to explore different views:
- Technical Specifications
- Downloads
| LED system | 12 x 10W RGBW LEDs |
| Backlight system | 21 x RGB 5050 SMD |
| Control mode | Auto/ built-in programs, master/slave, DMX |
| PWM backlight | 3.3KHz |
| Output | 27700 lux (10°) |
| DMX channels | 6, 10, 14 channels |
| Dimmer | 0-100% |
| Strobe | 0-20Hz |
| Beam angle | 5°- 60° |
| IP rating | IP20 |
| Housing | Die-cast powder coated aluminum |
CAD Drawings
vled-901z.dwgapplication/acad · 85 KB
PDF Drawings
vled-901z-pdf_drawings.pdfapplication/pdf · 39 KB
VLED-901Z
Specifications
| LED system | 12 x 10W RGBW LEDs |
| Backlight system | 21 x RGB 5050 SMD |
| Control mode | Auto/ built-in programs, master/slave, DMX |
| PWM backlight | 3.3KHz |
| Output | 27700 lux (10°) |
| DMX channels | 6, 10, 14 channels |
| Dimmer | 0-100% |
| Strobe | 0-20Hz |
| Beam angle | 5°- 60° |
| IP rating | IP20 |
| Housing | Die-cast powder coated aluminum |
Downloads
CAD Drawings
vled-901z.dwgapplication/acad · 85 KB
PDF Drawings
vled-901z-pdf_drawings.pdfapplication/pdf · 39 KB
