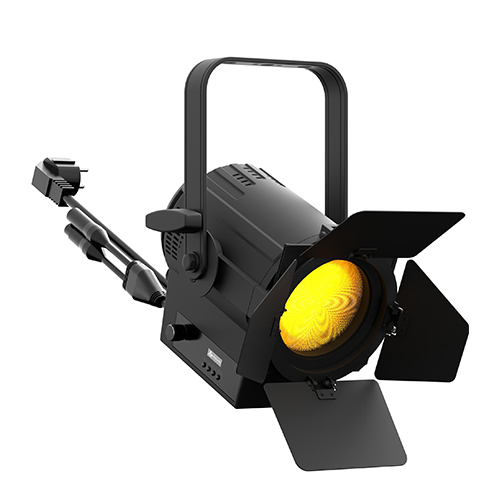

MINIECLFRFC
كشّاف فرينل

MINIECLFRFC

191x281x203mm Size
1 / 2 / 3 / 4-1 / 4-2 / 5 / 9 / 6 / 7 / 9-1 / 9-2 / 12 / 14 / 17ch DMX Channels
bare end connection Power Consumption
2,52kg Weight

Experience the
MINIECLFRFC
Light Show

Source 70W RGB+Lime LEDs (driven @ 30W)
Source CCT 2.800 K - 8.000K
Luminous flux (24°) 151 lm - (113°) 732 @Full
Lux (24°) 27 lx - (113°) 18lx @5 m full
CRI 81 @6.000 K
R9 91 @6.000 K
TLCI 80 @6.000 K
TM30 Rf 80 @6.000 K
TM30 Rg 104 @6.000 K
Source life expectancy > 50.000 h
Zoom range 24° - 113° manual
Lens diameter 100mm
Lens type Fresnel zoom lens
Additional optics 20° filter on board
Other spigot not included; gel frame and barndoors included
Colour mixing RGBL
CCT CCT control through dedicated DMX channel and amber shift activation by DMX
White presets 2.800 K - 8.000K
Colour wheel virtual colour wheel with macros
Macros several pre-built macros with adjustable speed
Static mode selection of static colour
Manual mode manual adjustment of colour
Auto mode built-in programs with execution speed adjustment
Special features linear crossfade channel from any white to any colour; virtual CTO on colours
Supported Protocols DMX512, RDM, rotatory knob
DMX channels 1 / 2 / 3 / 4-1 / 4-2 / 5 / 9 / 6 / 7 / 9-1 / 9-2 / 12 / 14 / 17ch
RDM for remote addressing and parameter configuration
Display Graphic User Interface
Master/Slave for synchronised operation of more units linked in a chain
Other 16bit control of dimmer and colour
Dimmer linear 0 - 100% electronic dimmer
Dimmer curves 4 selectable dimming modes available
Strobe / shutter 1 - 30 Hz, electronic
Selectable PWM 600 to 25000 Hz (selectable steps)
Firmware upgrade via DMX with UPBOXPRO/UPBOX1 (not included)
Power connection bare end connection
Signal connection DMX 5p IN/OUT
Mains power supply 100-240V - 50/60Hz
Max power consumption (230V) 30W
Output (at 230V) 35 units on a single power line
Power factor >0,55
IP rating IP20
Cooling fan-free with natural convection
Housing Sturdy die-cast aluminium body
Finish black
Operating temperature Ta -10 to +40 °C (+14 to +104 °F)
Dimensions (WxHxD) 191x281x203mm
Weight 2,52kg
Suspension and fixing bracket for hanging and positioning
Compliance CE, UKCA, RCM

No downloads available yet.

MINIECLFRFC

Explore Similar
Products

VFR200WW-1555
Order Code VFR200WW-1555 View Details
VFR100WW-1555
Order Code VFR100WW-1555 View Details

Ready to Transform Your Space?

رمز المنتج: MINIECLFRFC
الفئة: كشّاف فرينل
العلامة التجارية: Prolights
التوصيل للطلبات التي تتجاوز 1,000 درهم
الضمان 2 years
دفع آمن معاملات مشفرة وآمنة
دعم متخصص دعم ما قبل وما بعد البيع

EclMiniFresnel FC is an advanced LED replacement for the traditional 300W Fresnel lamps. Offering 4 colour mixing, delivering high precision reproduction of the white spectrum from 2.800 K to 8.000 K with extensive colour reproduction. The optical system harnesses the power of a 70W custom LED with 4 colours to create an even projection, beautiful colours and precise whites. Featuring HDL dimming and tuning from 2.800 K to 8.000 K version, the EclMiniFresnel FC delivers the performance and quality of output demanded from this level of light.

  • Tunable white 2.800 K - 8.000 K with extensive colour reproduction
  • RGB + lime full colour mixing to achieve any colour palette
  • Silent operation for studio and stage use

    • EclMiniFresnel FC is an advanced LED replacement for the traditional 300W Fresnel lamps. Offering 4 colour mixing, delivering high precision reproduction of the white spectrum from 2.800 K to 8.000 K with extensive colour reproduction. The optical system harnesses the power of a 70W custom LED with 4 colours to create an even projection, beautiful colours and precise whites. Featuring HDL dimming and tuning from 2.800 K to 8.000 K version, the EclMiniFresnel FC delivers the performance and quality of output demanded from this level of light.

    Features:
    Tunable white 2.800 K - 8.000 K with extensive colour reproduction
    RGB + lime full colour mixing to achieve any colour palette
    Silent operation for studio and stage use

    LIGHT SOURCE
    • Source:
      70
      W
      RGB+Lime LEDs (driven @ 30W)
    • Source CCT:
      2.800 K - 8.000
      K
    • Luminous flux:
      (24°) 151 lm - (113°) 732
      @Full
    • Lux:
      (24°) 27 lx - (113°) 18
      lx
      @5 m full
    • CRI:
      81 @6.000 K
    • R9:
      91 @6.000 K
    • TLCI:
      80 @6.000 K
    • TM30 Rf:
      80 @6.000 K
    • TM30 Rg:
      104 @6.000 K
    • Source life expectancy:
      > 50.000 h
    OPTICS
    • Zoom range:
      24° - 113
      °
      manual
    • Lens diameter:
      100
      mm
    • Lens type:
      Fresnel zoom lens
    • Additional optics:
      20° filter on board
    • Other:
      spigot not included; gel frame and barndoors included
    COLOUR SYSTEM
    • Colour mixing:
      RGBL
    • CCT:
      CCT control through dedicated DMX channel and amber shift activation by DMX
    • White presets:
      2.800 K - 8.000
      K
    • Colour wheel:
      virtual colour wheel with macros
    • Macros:
      several pre-built macros with adjustable speed
    DYNAMIC EFFECTS
    • Static mode:
      selection of static colour
    • Manual mode:
      manual adjustment of colour
    • Auto mode:
      built-in programs with execution speed adjustment
    • Special features:
      linear crossfade channel from any white to any colour; virtual CTO on colours
    CONTROL
    • Supported Protocols:
      DMX512, RDM, rotatory knob
    • DMX channels:
      1 / 2 / 3 / 4-1 / 4-2 / 5 / 9 / 6 / 7 / 9-1 / 9-2 / 12 / 14 / 17
      ch
    • RDM:
      for remote addressing and parameter configuration
    • Display:
      Graphic User Interface
    • Master/Slave:
      for synchronised operation of more units linked in a chain
    • Other:
      16bit control of dimmer and colour
    ELECTRONICS
    • Dimmer:
      linear 0 - 100% electronic dimmer
    • Dimmer curves:
      4
      selectable dimming modes available
    • Strobe / shutter:
      1 - 30
      Hz, electronic
    • Selectable PWM:
      600 to 25000 Hz (selectable steps)
    • Firmware upgrade:
      via DMX with UPBOXPRO/UPBOX1 (not included)
    CONNECTIONS
    • Power connection:
      bare end connection
    • Signal connection:
      DMX 5p IN/OUT
    ELECTRICAL
    • Mains power supply:
      100-240V - 50/60Hz
    • Max power consumption (230V):
      30
      W
    • Output (at 230V):
      35
      units on a single power line
    • Power factor:
      >0,55
    PHYSICAL
    • IP rating:
      IP20
    • Cooling:
      fan-free with natural convection
    • Housing:
      Sturdy die-cast aluminium body
    • Finish:
      black
    • Operating temperature:
      Ta
      -10 to +40 °C (+14 to +104 °F)
    • Dimensions (WxHxD):
      191x281x203
      mm
    • Weight:
      2,52
      kg
    INSTALLATION
    • Suspension and fixing:
      bracket for hanging and positioning
    CERTIFICATIONS / REPORTS
    • Compliance:
      CE, UKCA, RCM

    لا توجد تقييمات بعد.

    تصفح الفئات ذات الصلة

    المزيد من الفئات ضمن المسرح والسينما والاستوديو

    سيكلوراما
    إضاءة ناعمة
    كشّافات Par
    كشّافات إهليلجية
    كشّاف Par LED
    لوحة إضاءة ناعمة
    كشّاف بروفايل
    كشّاف متابعة

    LED Fresnel FC and Tunable White, to replace a 300W lamp

    EclMiniFresnel FC is an advanced LED replacement for the traditional 300W Fresnel lamps. Offering 4 colour mixing, delivering high precision reproduction of the white spectrum from 2.800 K to 8.000 K with extensive colour reproduction. The optical system harnesses the power of a 70W custom LED with 4 colours to create an even projection, beautiful colours and precise whites. Featuring HD dimming and tuning from 2.800 K to 8.000 K version, the EclMiniFresnel FC delivers the performance and quality of output demanded from this level of light.

    Main features:

    • Tunable white 2.800 K - 8.000 K with extensive colour reproduction
    • RGB + lime full colour mixing to achieve any colour palette
    • Silent operation for studio and stage use
