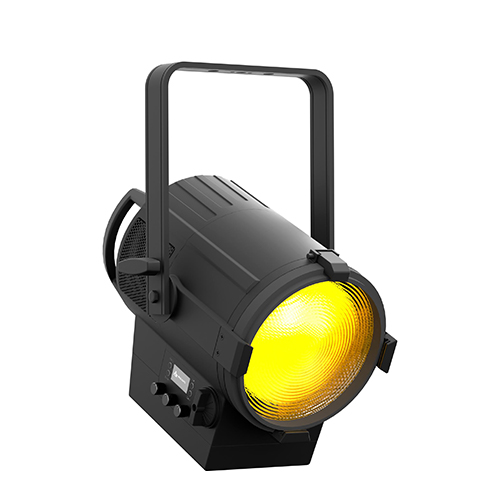

كشّاف فرينل
ECLFRESNELTW
283x440x343mm
Size
1 / 2 / 5 - 1 / 5 - 2 / 7 / 9 / 12 / 13 / 16 / 19 / 21ch
DMX Channels
Neutrik powerCON TRUE1 IN/OUT connectors
Power Consumption
7,5kg
Weight
Experience the
ECLFRESNELTW
Light Show
| Source | 260W 6 colour custom LEDs source (red, orange, green, royal blue, blue, lime) |
|---|---|
| Source CCT | 2.800 K ~ 10.000K |
| Luminous flux | (17°) 4'653 lm - (91°) 7'896 @Full |
| Lux | (17°) 1'678 lx - (91°) 344lx @5 m full |
| CRI | 90 @3.200 K; 89 @5.600 K |
| R9 | 80 @3.200 K; 87 @5.600 K |
| TLCI | 77 @5.600 K |
| TM30 Rf | 87 @3.200 K; 81 @5.600 K |
| TM30 Rg | 106 @3.200 K; 106 @5.600 K |
| Source life expectancy | > 50.000 h |
| Zoom range | 17° - 91° manual |
| Lens diameter | 200mm |
| Lens type | Fresnel zoom lens |
| Focus | manual |
| Colour mixing | tunable white + colour |
| CCT | CCT control, + / - green correction, tungsten emulation |
| White presets | 2.800 K -10.000K |
| Colour wheel | virtual colour wheel with macros |
| Macros | several pre-built macros with adjustable speed |
| Static mode | selection of static colour |
| Manual mode | manual adjustment of intensity, CT, colour correction from knob |
| Auto mode | built-in programs with execution speed adjustment |
| Special features | linear crossfade channel from any white to any colour; virtual CTO on colours |
| Supported Protocols | DMX512, RDM, rotatory knob |
| DMX channels | 1 / 2 / 5 - 1 / 5 - 2 / 7 / 9 / 12 / 13 / 16 / 19 / 21ch |
| RDM | for remote addressing and parameter configuration |
| Display | Graphic User Interface |
| Master/Slave | for synchronised operation of more units linked in a chain |
| Other | 16bit control of dimmer and colour |
| Dimmer | linear 0 - 100% electronic dimmer |
| Dimmer curves | 4 selectable dimming modes available |
| Strobe / shutter | 1 - 30 Hz, electronic |
| Selectable PWM | 600 to 25000 Hz (selectable steps) |
| Firmware upgrade | via DMX with UPBOXPRO/UPBOX1 (not included) |
| Power connection | Neutrik powerCON TRUE1 IN/OUT connectors |
| Signal connection | Amphenol XLR 5p IN/OUT connectors |
| Mains power supply | 100-240V - 50/60Hz |
| Max power consumption (230V) | 260W |
| Output (at 230V) | 17 units on a single power line |
| Standby power | 33,9 W |
| Power factor | >0,93 |
| IP rating | IP20 |
| Cooling | heat pipe with low-noise fan |
| Housing | Sturdy die-cast aluminium body |
| Finish | black (RAL 9004) or white (RAL 9010) |
| Operating temperature | Ta -10 to +45 °C (+14 to +113 °F) |
| Dimensions (WxHxD) | 283x440x343mm |
| Dimensions with PO system (WxHxD) | 341x545x343mm |
| Weight | 7,5kg |
| Weight with PO system | 9,7kg |
| Suspension and fixing | bracket for hanging and positioning |
| Hardware on-board | filter frame, 8 doors barndoor, spigot |
| Compliance | CE, UKCA, RCM |
No downloads available yet.
Explore Similar
Products
Ready to Transform Your Space?
التوصيل
للطلبات التي تتجاوز 1,000 درهم
الضمان
2 years
دفع آمن
معاملات مشفرة وآمنة
دعم متخصص
دعم ما قبل وما بعد البيع
EclFresnel TW is an advanced LED replacement of traditional 1.000W Fresnel lamps.
Offering 6 colour mixing, delivering high precision reproduction of the white spectrum from 2.800 K to 10.000 K with high CRI and an extensive colour reproduction.
The optical system harnesses the power of a 260W custom LED with 6 colours to create an even projection, beautiful colours and precise white, with the option to apply +/- green and magenta correction to match other sources of light.
Featuring HDL dimming and tuning from 2.800 K to 10.000 K version, the EclFresnel TW delivers the performance and quality of output demanded from this level of luminaire.
EclFresnel TW is an advanced LED replacement of traditional 1.000W Fresnel lamps.
Offering 6 colour mixing, delivering high precision reproduction of the white spectrum from 2.800 K to 10.000 K with high CRI and an extensive colour reproduction.
The optical system harnesses the power of a 260W custom LED with 6 colours to create an even projection, beautiful colours and precise white, with the option to apply +/- green and magenta correction to match other sources of light.
Featuring HDL dimming and tuning from 2.800 K to 10.000 K version, the EclFresnel TW delivers the performance and quality of output demanded from this level of luminaire.
Features:Tunable White 2.800 K - 10.000 K with high CRI and extensive colour mixing
+/- green and magenta white tuning
Silent operation for studio and stage use
LIGHT SOURCE
- Source:260W6 colour custom LEDs source (red, orange, green, royal blue, blue, lime)
- Source CCT:2.800 K ~ 10.000K
- Luminous flux:(17°) 4'653 lm - (91°) 7'896@Full
- Lux:(17°) 1'678 lx - (91°) 344lx@5 m full
- CRI:90 @3.200 K; 89 @5.600 K
- R9:80 @3.200 K; 87 @5.600 K
- TLCI:77 @5.600 K
- TM30 Rf:87 @3.200 K; 81 @5.600 K
- TM30 Rg:106 @3.200 K; 106 @5.600 K
- Source life expectancy:> 50.000 h
OPTICS
- Zoom range:17° - 91°manual
- Lens diameter:200mm
- Lens type:Fresnel zoom lens
- Focus:manual
COLOUR SYSTEM
- Colour mixing:tunable white + colour
- CCT:CCT control, + / - green correction, tungsten emulation
- White presets:2.800 K -10.000K
- Colour wheel:virtual colour wheel with macros
- Macros:several pre-built macros with adjustable speed
DYNAMIC EFFECTS
- Static mode:selection of static colour
- Manual mode:manual adjustment of intensity, CT, colour correction from knob
- Auto mode:built-in programs with execution speed adjustment
- Special features:linear crossfade channel from any white to any colour; virtual CTO on colours
CONTROL
- Supported Protocols:DMX512, RDM, rotatory knob
- DMX channels:1 / 2 / 5 - 1 / 5 - 2 / 7 / 9 / 12 / 13 / 16 / 19 / 21ch
- RDM:for remote addressing and parameter configuration
- Display:Graphic User Interface
- Master/Slave:for synchronised operation of more units linked in a chain
- Other:16bit control of dimmer and colour
ELECTRONICS
- Dimmer:linear 0 - 100% electronic dimmer
- Dimmer curves:4selectable dimming modes available
- Strobe / shutter:1 - 30Hz, electronic
- Selectable PWM:600 to 25000 Hz (selectable steps)
- Firmware upgrade:via DMX with UPBOXPRO/UPBOX1 (not included)
CONNECTIONS
- Power connection:Neutrik powerCON TRUE1 IN/OUT connectors
- Signal connection:Amphenol XLR 5p IN/OUT connectors
ELECTRICAL
- Mains power supply:100-240V - 50/60Hz
- Max power consumption (230V):260W
- Output (at 230V):17units on a single power line
- Standby power:33,9 W
- Power factor:>0,93
PHYSICAL
- IP rating:IP20
- Cooling:heat pipe with low-noise fan
- Housing:Sturdy die-cast aluminium body
- Finish:black (RAL 9004) or white (RAL 9010)
- Operating temperature:Ta-10 to +45 °C (+14 to +113 °F)
- Dimensions (WxHxD):283x440x343mm
- Dimensions with PO system (WxHxD):341x545x343mm
- Weight:7,5kg
- Weight with PO system:9,7kg
INSTALLATION
- Suspension and fixing:bracket for hanging and positioning
- Hardware on-board:filter frame, 8 doors barndoor, spigot
CERTIFICATIONS / REPORTS
- Compliance:CE, UKCA, RCM
لا توجد تقييمات بعد.
LED Fresnel FC and Tunable White with colour correction, to replace 1.000W lamp
EclFresnel TW is an advanced LED replacement of traditional 1.000W Fresnel lamps. Offering 6 colour mixing, delivering high precision reproduction of the white spectrum from 2.800 K to 10.000 K with high CRI and an extensive colour reproduction. The optical system harnesses the power of a 260W custom LED with 6 colours to create an even projection, beautiful colours and precise white, with the option to apply +/- green and magenta correction to match other sources of light. Featuring HD dimming and tuning from 2.800 K to 10.000 K version, the EclFresnel TW delivers the performance and quality of output demanded from this level of luminaire.
Main features:
- Tunable White 2.800 K - 10.000 K with high CRI and extensive colour mixing
- +/- green and magenta white tuning
- Silent operation for studio and stage use
