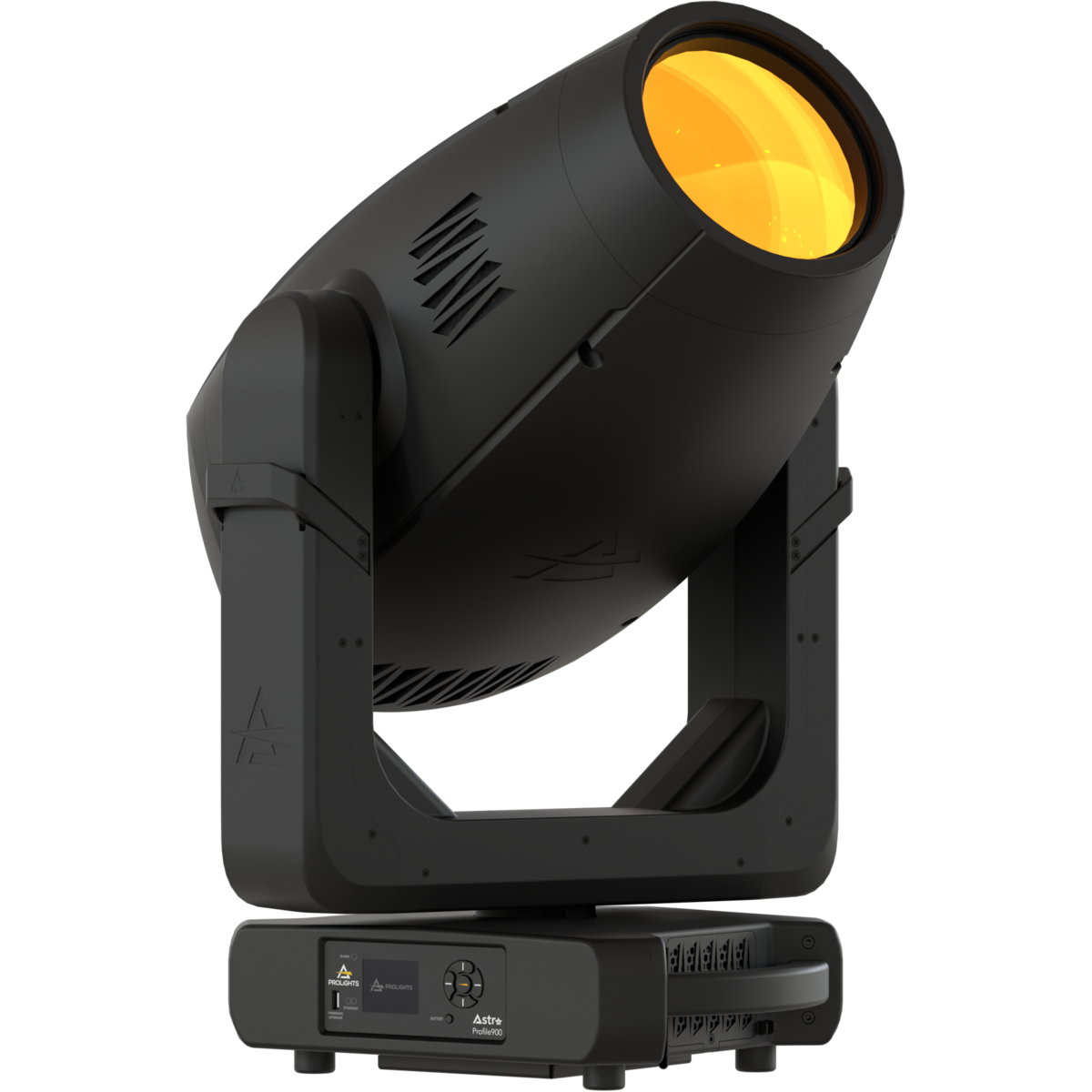

ASTRAPROFILE900
أضواء متحركة داخلية

ASTRAPROFILE900

30 mm outer / 25 mm image / up to 3 mm thickness Size
46ch DMX Channels
Neutrik powerCON TRUE1 IN/OUT connectors Power Consumption
45,2kg Weight

Experience the
ASTRAPROFILE900
Light Show

Source 1000W White LED (driven @900W)
Source CCT 7.000K
Luminous flux (5,5°) 23'816 lm - (52°) 42'919 lm
Lux (5,5°) 126'304 lx - (52°) 3'060lx @5 m
CRI > 70 (CCT 6.000K and CRI > 90 with filter on color wheel)
Source life expectancy > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
Zoom range 5,4° - 52° motorised linear zoom
Lens diameter 185mm
Lens type HD anti-reflection lenses with achromatic coating
Focus motorised 16-bit with tracking
Colour mixing linear CMY
CCT linear CTO correction 2.700 K ~ 7.000 K
Colour wheel open + high CRI filter + 5 colour filters
Control Resolution 16-bit dimmer control
Shutter system 4 shutter blades with position and ±30° angle adjustment, ±45° rotation of the complete framing system
Animation wheel animation wheel with CW and CCW rotation
FX generator 2 prisms overlap for spectacular aerial effects
Circular prism 4-f with bi-directional rotation, indexing
Linear prism 6-f with bi-directional rotation, indexing
Frost dual soft-edge and heavy with one interchangeable element
Iris 5 - 100% motorised iris
Rotating gobos 7 rotating gobos + open, interchangeable, indexing
Gobo size 30 mm outer / 25 mm image / up to 3 mm thickness
Rotating gobos 7 rotating gobos + open, interchangeable, indexing
Gobo size outer: 30 mm - image: 25 mm - thickness: up to 3 mm
Supported Protocols DMX512, RDM, ArtNet, sACN, CRMX
DMX channels 46ch
RDM for remote addressing and parameter configuration
Display Graphic User Interface
Pan 540° - 16-bit resolution
Tilt 270° - 16-bit resolution
Position feedback automatic repositioning after external movement
Pan / tilt lock for transport and maintenance
Dimmer linear 0 - 100% electronic dimmer
Dimmer curves 4 selectable dimming modes available
Strobe / shutter 1 - 30 Hz, electronic
Display battery included, self-charging battery backup
Selectable PWM 600 to 50000 Hz (selectable steps)
Firmware upgrade via DMX with UPBOXPRO/UPBOX2 (not included) or via USB pen drive
Power connection Neutrik powerCON TRUE1 IN/OUT connectors
Signal connection Neutrik XLR 5p IN/OUT connectors
Wireless Connection integrated LumenRadio TiMo FX RDM - CRMX and W-DMX compatible
Data connection Neutrik Art-Net RJ45 IN/OUT
EtherFlow Ethernet pass-through switch that preserves network connectivity even when the fixture is unpowered
Mains power supply 100-240V - 50/60Hz
Max power consumption (230V) 1310W
Output (at 230V) 2 units on a single power line
Standby power 150 W
Power factor > 0,97
IP rating IP20
Cooling heat pipe with low-noise fan
Housing Aluminium structure with high-resistance polycarbonate cover
Finish black
Operating temperature Ta -10 to +45 °C (+14 to +113 °F)
Dimensions (WxHxD) 516x856x310mm
Weight 45,2kg
Suspension and fixing any position with quick-lock omega brackets
Hardware on-board sockets for quick-Lock Omega bracket (clamp not included)
Compliance CE, RCM, FCC, cTUVus

No downloads available yet.

ASTRAPROFILE900

Explore Similar
Products

VPL-2RN
Order Code VPL-2RN View Details
Xwash1200
Order Code Xwash1200 View Details
VPL-Extreme
Order Code VPL-Extreme View Details

Ready to Transform Your Space?

رمز المنتج: ASTRAPROFILE900
الفئة: أضواء متحركة داخلية
العلامة التجارية: Prolights
التوصيل للطلبات التي تتجاوز 1,000 درهم
الضمان 2 years
دفع آمن معاملات مشفرة وآمنة
دعم متخصص دعم ما قبل وما بعد البيع

The Astra Profile900 is a flagship, high-power profile moving head designed for large-scale live productions, studios, and theaters. Powered by a 900W LED source, it delivers an impressive 43,000-lumen output (as measured by photogoniometer), making it an exceptional key light for any major production.

Its large 185mm front lens and versatile 5°-52° zoom range ensure outstanding performance at virtually any distance. The new MotiOs motion ecosystem enhances speed, precision, and responsiveness across pan, tilt, internal wheels, and framing modules, setting a new standard in motion control.

For precise color control, the Astra Profile900 features linear CMY+CTO mixing and a color wheel with a high-CRI filter, delivering vibrant tones and balanced whites. Additional highlights include dual rotating gobo wheels, an animation wheel, a four-layer framing system, dual prisms, dual frost filters, and iris—making it adaptable to a wide variety of production needs.

  • 900W 7000K White LED source, featuring 43.000 fixture lumen output (goniometer)
  • 185mm front lens with a 5°-52° zoom
  • MotiOs enhances motion speed, precision, and responsiveness across motorized features
  • CMY+CTO Color mixing, one color wheel, 4 framing shutters, 2 rotating gobo wheels, 1 animation wheel, 2 frost, 2 prisms, iris

    • The Astra Profile900 is a flagship, high-power profile moving head designed for large-scale live productions, studios, and theaters. Powered by a 900W LED source, it delivers an impressive 43,000-lumen output (as measured by photogoniometer), making it an exceptional key light for any major production.

    Its large 185mm front lens and versatile 5°-52° zoom range ensure outstanding performance at virtually any distance. The new MotiOs motion ecosystem enhances speed, precision, and responsiveness across pan, tilt, internal wheels, and framing modules, setting a new standard in motion control.

    For precise color control, the Astra Profile900 features linear CMY+CTO mixing and a color wheel with a high-CRI filter, delivering vibrant tones and balanced whites. Additional highlights include dual rotating gobo wheels, an animation wheel, a four-layer framing system, dual prisms, dual frost filters, and iris—making it adaptable to a wide variety of production needs.

    Features:
    900W 7000K White LED source, featuring 43.000 fixture lumen output (goniometer)
    185mm front lens with a 5°-52° zoom
    MotiOs enhances motion speed, precision, and responsiveness across motorized features
    CMY+CTO Color mixing, one color wheel, 4 framing shutters, 2 rotating gobo wheels, 1 animation wheel, 2 frost, 2 prisms, iris

    LIGHT SOURCE
    • Source:
      1000
      W
      White LED (driven @900W)
    • Source CCT:
      7.000
      K
    • Luminous flux:
      (5,5°) 23'816 lm - (52°) 42'919 lm
    • Lux:
      (5,5°) 126'304 lx - (52°) 3'060
      lx
      @5 m
    • CRI:
      > 70 (CCT 6.000K and CRI > 90 with filter on color wheel)
    • Source life expectancy:
      > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
    OPTICS
    • Zoom range:
      5,4° - 52
      °
      motorised linear zoom
    • Lens diameter:
      185
      mm
    • Lens type:
      HD anti-reflection lenses with achromatic coating
    • Focus:
      motorised 16-bit with tracking
    COLOUR SYSTEM
    • Colour mixing:
      linear CMY
    • CCT:
      linear CTO correction 2.700 K ~ 7.000 K
    • Colour wheel:
      open + high CRI filter + 5
      colour filters
    DYNAMIC EFFECTS
    • Control Resolution:
      16-bit dimmer control
    • Shutter system:
      4 shutter blades with position and ±30° angle adjustment, ±45° rotation of the complete framing system
    • Animation wheel:
      animation wheel with CW and CCW rotation
    • FX generator:
      2
      prisms overlap for spectacular aerial effects
    • Circular prism:
      4
      -f
      with bi-directional rotation, indexing
    • Linear prism:
      6
      -f
      with bi-directional rotation, indexing
    • Frost:
      dual soft-edge and heavy with one interchangeable element
    • Iris:
      5 - 100
      %
      motorised iris
    GOBOS
    • Rotating gobos:
      7
      rotating gobos + open, interchangeable, indexing
    • Gobo size:
      30 mm outer / 25 mm image / up to 3 mm thickness
    • Rotating gobos:
      7
      rotating gobos + open, interchangeable, indexing
    • Gobo size:
      outer: 30 mm - image: 25 mm - thickness: up to 3 mm
    CONTROL
    • Supported Protocols:
      DMX512, RDM, ArtNet, sACN, CRMX
    • DMX channels:
      46
      ch
    • RDM:
      for remote addressing and parameter configuration
    • Display:
      Graphic User Interface
    MOVEMENT
    • Pan:
      540
      °
      - 16-bit resolution
    • Tilt:
      270
      °
      - 16-bit resolution
    • Position feedback:
      automatic repositioning after external movement
    • Pan / tilt lock:
      for transport and maintenance
    ELECTRONICS
    • Dimmer:
      linear 0 - 100% electronic dimmer
    • Dimmer curves:
      4
      selectable dimming modes available
    • Strobe / shutter:
      1 - 30
      Hz, electronic
    • Display battery:
      included, self-charging battery backup
    • Selectable PWM:
      600 to 50000 Hz (selectable steps)
    • Firmware upgrade:
      via DMX with UPBOXPRO/UPBOX2 (not included) or via USB pen drive
    CONNECTIONS
    • Power connection:
      Neutrik powerCON TRUE1 IN/OUT connectors
    • Signal connection:
      Neutrik XLR 5p IN/OUT connectors
    • Wireless Connection:
      integrated LumenRadio TiMo FX RDM - CRMX and W-DMX compatible
    • Data connection:
      Neutrik Art-Net
      RJ45 IN/OUT
    • EtherFlow:
      Ethernet pass-through switch that preserves network connectivity even when the fixture is unpowered
    ELECTRICAL
    • Mains power supply:
      100-240V - 50/60Hz
    • Max power consumption (230V):
      1310
      W
    • Output (at 230V):
      2
      units on a single power line
    • Standby power:
      150 W
    • Power factor:
      > 0,97
    PHYSICAL
    • IP rating:
      IP20
    • Cooling:
      heat pipe with low-noise fan
    • Housing:
      Aluminium structure with high-resistance polycarbonate cover
    • Finish:
      black
    • Operating temperature:
      Ta
      -10 to +45 °C (+14 to +113 °F)
    • Dimensions (WxHxD):
      516x856x310
      mm
    • Weight:
      45,2
      kg
    INSTALLATION
    • Suspension and fixing:
      any position with quick-lock omega brackets
    • Hardware on-board:
      sockets for quick-Lock Omega bracket (clamp not included)
    CERTIFICATIONS / REPORTS
    • Compliance:
      CE, RCM, FCC, cTUVus
