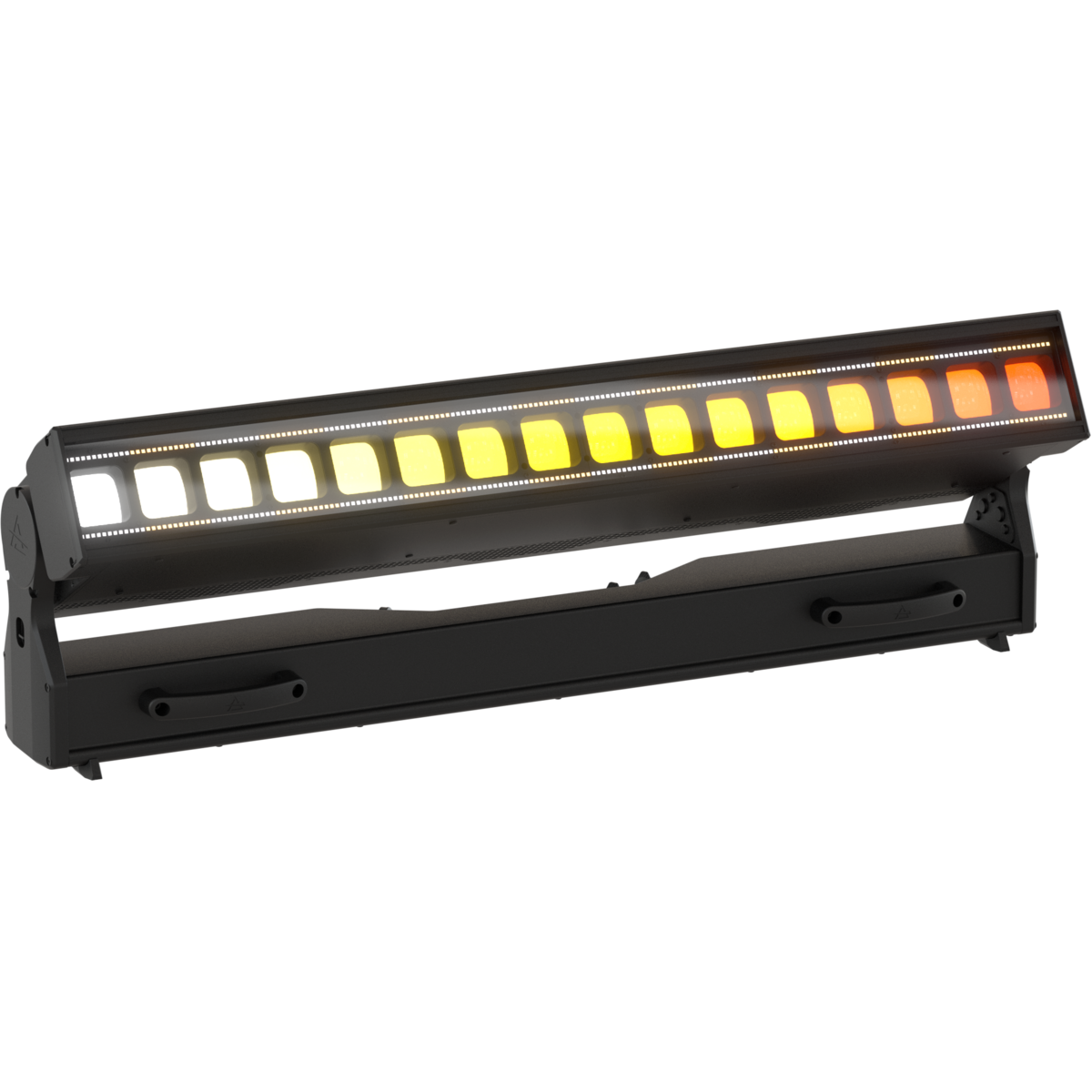

ASTRABLADE100IP
أضواء متحركة خارجية

ASTRABLADE100IP

996x336x175mm Size
Seetronic powerCON TRUE IP65 IN/OUT Power Consumption
27,4kg Weight

Experience the
ASTRABLADE100IP
Light Show

Source 16x40W RGBW Osram Ostar LEDs
Additional source 2 VW linear LED strips with 32 individual sections (16 on top + 16 on bottom)
Luminous flux (4,3°) 12'028 lm - (39,4°) 15'262 @Full
Lux (4,3°) 50'695 lx - (39,4°) 3'056lx @5 m full
Source life expectancy > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
Zoom range 4,3° - 39,4° motorised linear zoom
Lens diameter 50mm square shape
Lens type high-quality glass lens optics
Colour control CCT, RGBW, HSI, Colour Macros
CCT CCT control, + / - green correction, tungsten emulation
Colour wheel virtual colour wheel with macros
Other CCT range: (pixels) 2.800K / 10.000K - (strips) 2.700K / 8000K
Control Resolution 16-bit dimmer and color control
Pixel patterns pre-programmed static and dynamic pixel patterns
FX generator adjustable foreground/background colour, index, speed, direction
Static mode selection of static dimmer, colors and color temperature
Manual mode manual adjustment of colour
Supported Protocols DMX512, RDM, ArtNet, sACN, CRMX
Pixel control 16 px (main) + 32 px (strips) pixel2pixel control
RDM for remote addressing and parameter configuration
Display LCD high resolution colour display with autoflip
Master/Slave for synchronised operation of more units linked in a chain
Tilt 200° - 16-bit resolution
Position feedback automatic repositioning after external movement
Pan / tilt lock for transport and maintenance
Dimmer linear 0 - 100% electronic dimmer
Dimmer curves 5 selectable dimming modes available
Strobe / shutter 1 - 30 Hz, electronic
Display battery included, self-charging battery backup
Selectable PWM 1000 to 25000 Hz (selectable steps)
Firmware upgrade via DMX with UPBOXPRO/UPBOX1 (not included) or via Ethernet with DMX-Workshop
Power connection Seetronic powerCON TRUE IP65 IN/OUT
Signal connection IP65 Seetronic XLR 5p IN/OUT connectors
Wireless Connection integrated LumenRadio TiMo FX RDM - CRMX and W-DMX compatible
Data connection IP65 Art-Net RJ45 IN/OUT
EtherFlow Ethernet pass-through switch that preserves network connectivity even when the fixture is unpowered
Mains power supply 100-240V - 50/60Hz
Max power consumption (230V) strobe: 1.000 W (peak) - wash: 750W
Output (at 230V) 2 units on a single power line
Standby power 43 W
Power factor > 0,94
IP rating IP65 for temporary outdoor use (*)
Cooling heat pipe with low-noise fan
Housing Weatherproof IP65 construction with die-cast magnesium alloy
Finish black
Operating temperature Ta -20 to +45 °C (-4 to +113 °F)
Dimensions (WxHxD) 996x336x175mm
Weight 27,4kg
Suspension and fixing any position with quick-lock omega brackets
Hardware on-board ancor points on the front for accessory mounting
Compliance CE, RCM, FCC, cTUVus
NOTE Suitable for permanent outdoor use, provided installation and maintenance cycles by qualified technicians are carried.

No downloads available yet.

ASTRABLADE100IP

Explore Similar
Products

Ready to Transform Your Space?

رمز المنتج: ASTRABLADE100IP
الفئة: أضواء متحركة خارجية
العلامة التجارية: Prolights
التوصيل للطلبات التي تتجاوز 1,000 درهم
الضمان 2 years
دفع آمن معاملات مشفرة وآمنة
دعم متخصص دعم ما قبل وما بعد البيع

The Astra Blade100IP is an IP65 rated, linear motorized LED batten, featuring high output through 16 x 40W RGB+WW LEDs and two variable white pixel linear LED strips on both sides, a wide zoom range, and control through the powerful PROLIGHTS Spektra OS algorithm that reproduces perfect white spectrums with high color rendering.

The new squared lens design maximizes lumen efficiency and provides a bright curtain of light at its narrowest angle of just 4°, while delivering smooth and homogeneous washes at its widest 40° wash when zoomed out.

Astra Blade100IP offers motorized tilt and individual pixel control across the 16 emitters and 32 sectors for your side strips, as well as both wired and wireless CRMX operations or through multi-protocol ethernet support.

The water and dustproof design ensures enhanced reliability for any indoor or outdoor stages, making it virtually maintenance-free.

  • IP65 motorized 100cm Led batten with Tilt and zoom control
  • 16x40W RGB+WW LEDs with two variable white linear LED strips on both sides, pixel control
  • Zoom from 4° to 40°

    • The Astra Blade100IP is an IP65 rated, linear motorized LED batten, featuring high output through 16 x 40W RGB+WW LEDs and two variable white pixel linear LED strips on both sides, a wide zoom range, and control through the powerful PROLIGHTS Spektra OS algorithm that reproduces perfect white spectrums with high color rendering.

    The new squared lens design maximizes lumen efficiency and provides a bright curtain of light at its narrowest angle of just 4°, while delivering smooth and homogeneous washes at its widest 40° wash when zoomed out.

    Astra Blade100IP offers motorized tilt and individual pixel control across the 16 emitters and 32 sectors for your side strips, as well as both wired and wireless CRMX operations or through multi-protocol ethernet support.

    The water and dustproof design ensures enhanced reliability for any indoor or outdoor stages, making it virtually maintenance-free.

    Features:
    IP65 motorized 100cm Led batten with Tilt and zoom control
    16x40W RGB+WW LEDs with two variable white linear LED strips on both sides, pixel control
    Zoom from 4° to 40°

    LIGHT SOURCE
    • Source:
      16x40
      W
      RGBW Osram Ostar LEDs
    • Additional source:
      2 VW linear LED strips with 32 individual sections (16 on top + 16 on bottom)
    • Luminous flux:
      (4,3°) 12'028 lm - (39,4°) 15'262
      @Full
    • Lux:
      (4,3°) 50'695 lx - (39,4°) 3'056
      lx
      @5 m full
    • Source life expectancy:
      > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
    OPTICS
    • Zoom range:
      4,3° - 39,4
      °
      motorised linear zoom
    • Lens diameter:
      50
      mm
      square shape
    • Lens type:
      high-quality glass lens optics
    COLOUR SYSTEM
    • Colour control:
      CCT, RGBW, HSI, Colour Macros
    • CCT:
      CCT control, + / - green correction, tungsten emulation
    • Colour wheel:
      virtual colour wheel with macros
    • Other:
      CCT range: (pixels) 2.800K / 10.000K - (strips) 2.700K / 8000K
    DYNAMIC EFFECTS
    • Control Resolution:
      16-bit dimmer and color control
    • Pixel patterns:
      pre-programmed static and dynamic pixel patterns
    • FX generator:
      adjustable foreground/background colour, index, speed, direction
    • Static mode:
      selection of static dimmer, colors and color temperature
    • Manual mode:
      manual adjustment of colour
    CONTROL
    • Supported Protocols:
      DMX512, RDM, ArtNet, sACN, CRMX
    • Pixel control:
      16 px (main) + 32 px (strips)
      pixel2pixel control
    • RDM:
      for remote addressing and parameter configuration
    • Display:
      LCD high resolution colour display with autoflip
    • Master/Slave:
      for synchronised operation of more units linked in a chain
    MOVEMENT
    • Tilt:
      200
      °
      - 16-bit resolution
    • Position feedback:
      automatic repositioning after external movement
    • Pan / tilt lock:
      for transport and maintenance
    ELECTRONICS
    • Dimmer:
      linear 0 - 100% electronic dimmer
    • Dimmer curves:
      5
      selectable dimming modes available
    • Strobe / shutter:
      1 - 30
      Hz, electronic
    • Display battery:
      included, self-charging battery backup
    • Selectable PWM:
      1000 to 25000 Hz (selectable steps)
    • Firmware upgrade:
      via DMX with UPBOXPRO/UPBOX1 (not included) or via Ethernet with DMX-Workshop
    CONNECTIONS
    • Power connection:
      Seetronic powerCON TRUE IP65 IN/OUT
    • Signal connection:
      IP65
      Seetronic XLR 5p IN/OUT connectors
    • Wireless Connection:
      integrated LumenRadio TiMo FX RDM - CRMX and W-DMX compatible
    • Data connection:
      IP65 Art-Net
      RJ45 IN/OUT
    • EtherFlow:
      Ethernet pass-through switch that preserves network connectivity even when the fixture is unpowered
    ELECTRICAL
    • Mains power supply:
      100-240V - 50/60Hz
    • Max power consumption (230V):
      strobe: 1.000 W (peak) - wash: 750
      W
    • Output (at 230V):
      2
      units on a single power line
    • Standby power:
      43 W
    • Power factor:
      > 0,94
    PHYSICAL
    • IP rating:
      IP65 for temporary outdoor use (*)
    • Cooling:
      heat pipe with low-noise fan
    • Housing:
      Weatherproof IP65 construction with die-cast magnesium alloy
    • Finish:
      black
    • Operating temperature:
      Ta
      -20 to +45 °C (-4 to +113 °F)
    • Dimensions (WxHxD):
      996x336x175
      mm
    • Weight:
      27,4
      kg
    INSTALLATION
    • Suspension and fixing:
      any position with quick-lock omega brackets
    • Hardware on-board:
      ancor points on the front for accessory mounting
    CERTIFICATIONS / REPORTS
    • Compliance:
      CE, RCM, FCC, cTUVus
    (*)
    • NOTE:
      Suitable for permanent outdoor use, provided installation and maintenance cycles by qualified technicians are carried.

    لا توجد تقييمات بعد.

    تصفح الفئات ذات الصلة

    المزيد من الفئات ضمن إضاءة الترفيه

    تجهيزات داخلية
    تعمل بالبطارية
    ستروب
    تجهيزات خارجية
    ليزر
    إضاءة المؤثرات
    أضواء متحركة داخلية
    تعمل بالبطارية

    IP65 motorized linear batten with 16x40W RGB+WW LEDs with two variable white pixel linear LED strips on both sides and zoom 4°-40°

    The Astra Blade100IP is an IP65 rated, linear motorized LED batten, featuring high output through 16 x 40W RGB+WW LEDs and two variable white pixel linear LED strips on both sides, a wide zoom range, and control through the powerful PROLIGHTS Spektra OS algorithm that reproduces perfect white spectrums with high color rendering. The new squared lens design maximizes lumen efficiency and provides a bright curtain of light at its narrowest angle of just 4°, while delivering smooth and homogeneous washes at its widest 40° wash when zoomed out. Astra Blade100IP offers motorized tilt and individual pixel control across the 16 emitters and 32 sectors for your side strips, as well as both wired and wireless CRMX operations or through multi-protocol ethernet support. The water and dustproof design ensures enhanced reliability for any indoor or outdoor stages, making it virtually maintenance-free.

    Main features:

    • IP65 motorized 100cm Led batten with TIlt and zoom control
    • 16x40W RGB+WW LEDs with two variable white linear LED strips on both sides, pixel control
    • Zoom from 4° to 40°
