ARENACOB4FC
تجهيزات خارجية

ARENACOB4FC

619x167x264mm Size
HALO 1 / 4 channel - STD 4 / 6 / 15 channel - EXT 16 / 21 / 27ch DMX Channels
Seetronic powerCON waterproof IN/OUT connectors Power Consumption
8kg Weight

Experience the
ARENACOB4FC
Light Show

Source 4x75W RGBW LEDs
Luminous flux (24°) 5'393 lm - (40°) 6.260
Lux (24°) 2'413lx @3 m full
Lux (40°) 891lx
Source life expectancy > 50.000 h
Beam angle (inc) 24° - (opt) 40°
Field angle 46°
Pixel pitch 150mm
Lens diameter 100mm
Lens type parabolic reflector in combination with HD fresnel lens
Additional optics 40°(opt) - 32° without magnetic lens
Other magnetic replacement of front lens
Colour mixing RGBW / FC
CCT CCT control through dedicated DMX channel
White presets 2.000 K ~ 8.000K
Colour wheel virtual colour wheel with macros
Pixel patterns pre-programmed static and dynamic pixel patterns
FX generator adjustable foreground/background colour, index, speed, direction
Static mode selection of static colour
Manual mode manual adjustment of colour
Auto mode built-in programs with execution speed adjustment
Special features HALO DWE dimming and amber-shift simulation
Supported Protocols DMX512, RDM
DMX channels HALO 1 / 4 channel - STD 4 / 6 / 15 channel - EXT 16 / 21 / 27ch
Pixel control pixel2pixel control
RDM for remote addressing and parameter configuration
Display black OLED touch display
Master/Slave for synchronised operation of more units linked in a chain
Dimmer linear 0 - 100% electronic dimmer
Dimmer curves 4 selectable dimming modes available
Strobe / shutter 1 - 28 Hz, electronic
Display battery included, self-charging battery backup
Firmware upgrade via DMX with UPBOXPRO/UPBOX1 (not included)
Power connection Seetronic powerCON waterproof IN/OUT connectors
Signal connection Seetronic XLR 5p IN/OUT connectors
Mains power supply 100-240V - 50/60Hz
Max power consumption (230V) 227W
Output (at 230V) 11 units on a single power line
Max power consumption (120V) 230W
Output (at 120V) 8 units on a single power line
IP rating IP65 for temporary outdoor use
Cooling fan-free with natural convection
Housing Sturdy die-cast aluminium body
Finish black
Operating temperature Ta -20 to +45 °C (-4 to +113 °F)
Dimensions (WxHxD) 619x167x264mm
Weight 8kg
Suspension and fixing bracket for hanging and positioning
Hardware on-board on board mechanics for modular assembly of multiple fixtures
Compliance CE, UKCA, RCM, cTUVus, FCC

No downloads available yet.

ARENACOB4FC

Explore Similar
Products

Ready to Transform Your Space?

رمز المنتج: ARENACOB4FC
الفئة: تجهيزات خارجية
العلامة التجارية: Prolights
التوصيل للطلبات التي تتجاوز 1,000 درهم
الضمان 2 years
دفع آمن معاملات مشفرة وآمنة
دعم متخصص دعم ما قبل وما بعد البيع

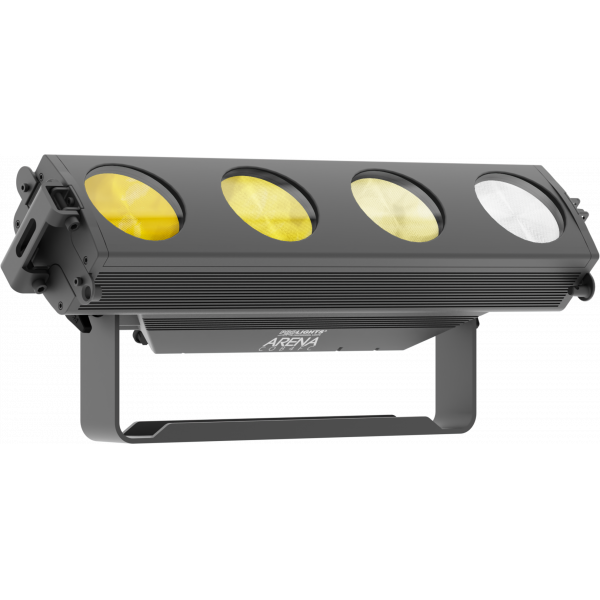

ArenaCob 4FC is a full colour LED replacement for a traditional 4 cell DWE blinder. Each of the individually controllable 75 W RGBW cells deliver a consistent, powerful punch that has been designed to perform in even the largest environments.

  • Four powerful RGBW LED cells with sizing and spacing matching traditional linear blinders
  • Individual cell control for effects and amber shift for tungsten emulation
  • IP65 housing for the most demanding environments with a virtually limitless 'building block' rigging system

    • ArenaCob 4FC is a full colour LED replacement for a traditional 4 cell DWE blinder. Each of the individually controllable 75 W RGBW cells deliver a consistent, powerful punch that has been designed to perform in even the largest environments.

    Features:
    Four powerful RGBW LED cells with sizing and spacing matching traditional linear blinders
    Individual cell control for effects and amber shift for tungsten emulation
    IP65 housing for the most demanding environments with a virtually limitless 'building block' rigging system

    LIGHT SOURCE
    • Source:
      4x75
      W
      RGBW LEDs
    • Luminous flux:
      (24°) 5'393 lm - (40°) 6.260
    • Lux:
      (24°) 2'413
      lx
      @3 m full
    • Lux:
      (40°) 891
      lx
    • Source life expectancy:
      > 50.000 h
    OPTICS
    • Beam angle:
      (inc) 24° - (opt) 40
      °
    • Field angle:
      46
      °
    • Pixel pitch:
      150
      mm
    • Lens diameter:
      100
      mm
    • Lens type:
      parabolic reflector in combination with HD fresnel lens
    • Additional optics:
      40°(opt) - 32° without magnetic lens
    • Other:
      magnetic replacement of front lens
    COLOUR SYSTEM
    • Colour mixing:
      RGBW / FC
    • CCT:
      CCT control through dedicated DMX channel
    • White presets:
      2.000 K ~ 8.000
      K
    • Colour wheel:
      virtual colour wheel with macros
    DYNAMIC EFFECTS
    • Pixel patterns:
      pre-programmed static and dynamic pixel patterns
    • FX generator:
      adjustable foreground/background colour, index, speed, direction
    • Static mode:
      selection of static colour
    • Manual mode:
      manual adjustment of colour
    • Auto mode:
      built-in programs with execution speed adjustment
    • Special features:
      HALO DWE dimming and amber-shift simulation
    CONTROL
    • Supported Protocols:
      DMX512, RDM
    • DMX channels:
      HALO 1 / 4 channel - STD 4 / 6 / 15 channel - EXT 16 / 21 / 27
      ch
    • Pixel control:
      pixel2pixel control
    • RDM:
      for remote addressing and parameter configuration
    • Display:
      black OLED touch display
    • Master/Slave:
      for synchronised operation of more units linked in a chain
    ELECTRONICS
    • Dimmer:
      linear 0 - 100% electronic dimmer
    • Dimmer curves:
      4
      selectable dimming modes available
    • Strobe / shutter:
      1 - 28
      Hz, electronic
    • Display battery:
      included, self-charging battery backup
    • Firmware upgrade:
      via DMX with UPBOXPRO/UPBOX1 (not included)
    CONNECTIONS
    • Power connection:
      Seetronic powerCON waterproof IN/OUT connectors
    • Signal connection:
      Seetronic XLR 5p IN/OUT connectors
    ELECTRICAL
    • Mains power supply:
      100-240V - 50/60Hz
    • Max power consumption (230V):
      227
      W
    • Output (at 230V):
      11
      units on a single power line
    • Max power consumption (120V):
      230
      W
    • Output (at 120V):
      8
      units on a single power line
    PHYSICAL
    • IP rating:
      IP65 for temporary outdoor use
    • Cooling:
      fan-free with natural convection
    • Housing:
      Sturdy die-cast aluminium body
    • Finish:
      black
    • Operating temperature:
      Ta
      -20 to +45 °C (-4 to +113 °F)
    • Dimensions (WxHxD):
      619x167x264
      mm
    • Weight:
      8
      kg
    INSTALLATION
    • Suspension and fixing:
      bracket for hanging and positioning
    • Hardware on-board:
      on board mechanics for modular assembly of multiple fixtures
    CERTIFICATIONS / REPORTS
    • Compliance:
      CE, UKCA, RCM, cTUVus, FCC

    لا توجد تقييمات بعد.

    تصفح الفئات ذات الصلة

    المزيد من الفئات ضمن إضاءة المسرح

    تجهيزات داخلية
    تعمل بالبطارية
    ستروب وبكسل وبلايندر
    أضواء متحركة داخلية

    4x75W IP65 multifunctional full colour LED blinder

    ArenaCob 4FC is a full colour LED replacement for a traditional 4 cell DWE blinder. Each of the individually controllable 75 W RGBW cells deliver a consistent, powerful punch that has been designed to perform in even the largest environments.

    Main features:

    • Four powerful RGBW LED cells with sizing and spacing matching traditional linear blinders
    • Individual cell control for effects and amber shift for tungsten emulation
    • IP65 housing for the most demanding environments with a virtually limitless 'building block' rigging system
