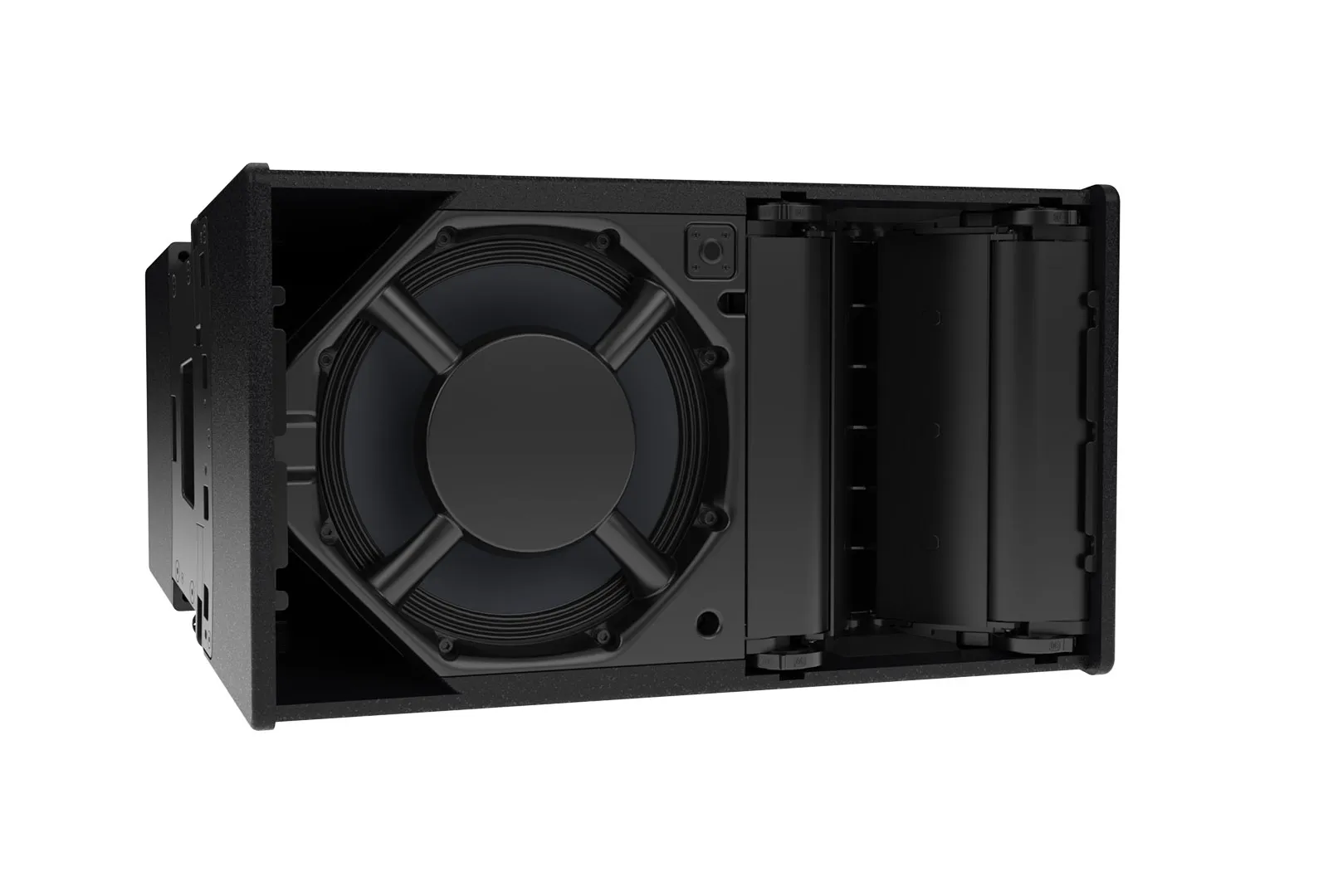

TORUS T1215

For applications that typically require a throw between 15-30m (50-100ft), a full-blown line array is not always practical, optimal or affordable. Conversely, a point source solution may not be sufficient in coverage and SPL.

TORUS T1215 is a constant curvature array, designed to fill that gap perfectly, combining optimised coverage, SPL and cost efficiency.

T1215 offers a narrow fixed vertical pattern of 15° with a flexible horizontal pattern that can be manually adjusted between 90° and 60° or 75° (asymmetrical) via the Dynamic Horn Flare™.

Features

• Two-way passive, constant curvature array element
• Compact enclosure with high output capability
• 1 x 12” (300mm) LF driver plus 3 x 1.4” (35mm)/1” (25mm) exit HF drivers
• Dynamic Horn Flare™ manually adjustable between 90° and 60° or 75° (asymmetrical) for flexible horizontal coverage
• Fixed 15° narrow vertical dispersion pattern
• Phase plug for increased mid-band output
• Easy-to-use integral rigging for quick set-up
• Integral fittings to facilitate pole-mounting
• Optimised coverage via DISPLAY 3
• Powered by iKON amplifiers

Applications

• Medium-throw live sound and music playback
• Theatre sound
• Fixed installations
• Fills, centre clusters and delays
• Portable DJ and corporate events
