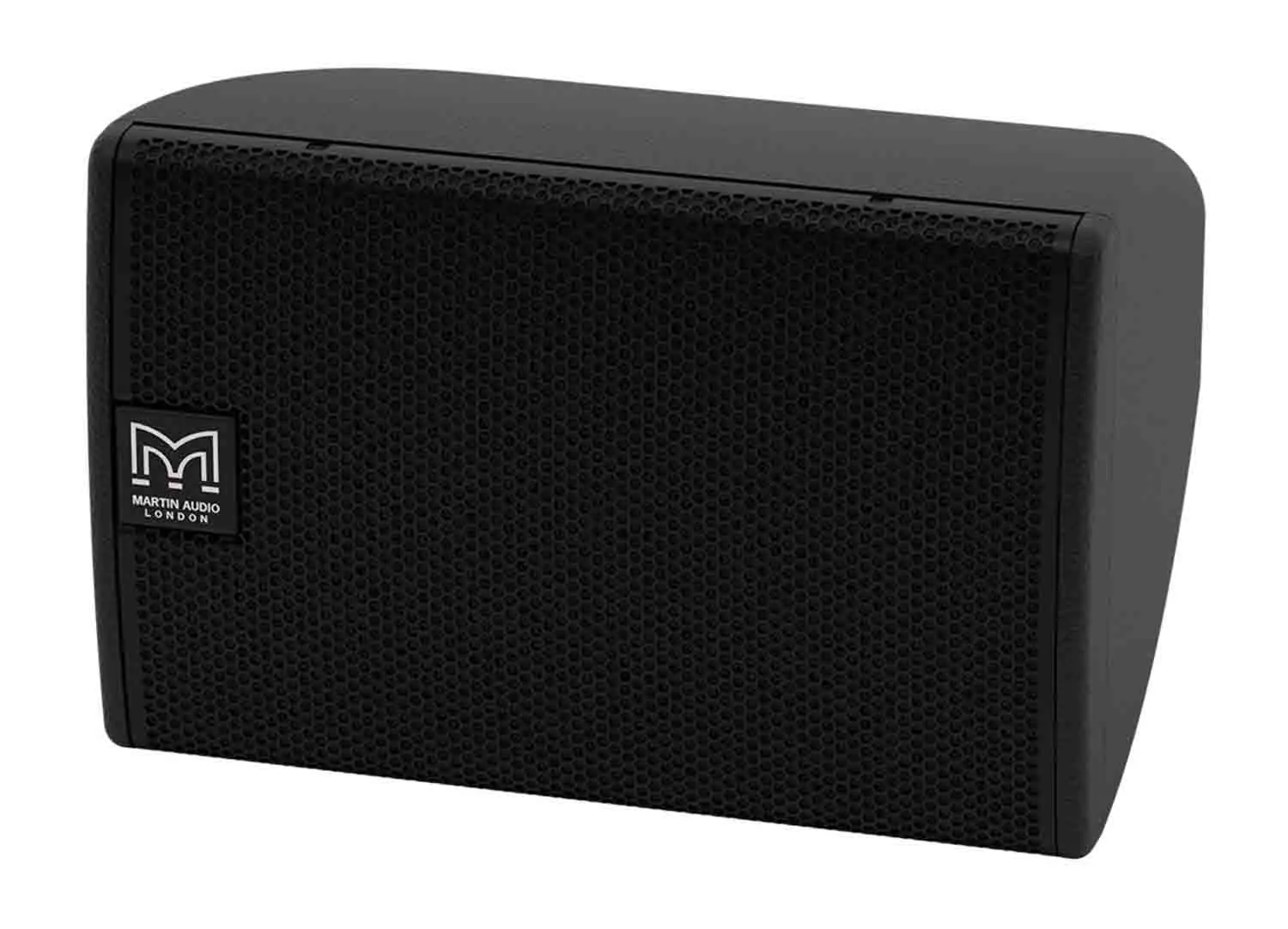

CDD6TX-WR

Features

• Ultra-Compact, CDD™ passive two-way system
• Coaxial Differential Dispersion™ technology
• Elegant UPM Formi composite enclosure
• Outdoor operation when sheltered from direct exposure to elements
• Operating temperature -20°C to +70°C
• Environmentally tested to meet IP54
• User-rotatable coaxial drive unit
• Vertical and horizontal mounting options
• Screw-free water and particle resistant grille
• 8Ω nominal impedance
• Discreet weatherised mounting accessories
• Black or white standard colour options
• 70V/100V line transformer

The Coaxial Differential Dispersion technology employed in the CD6TX-WR delivers more consistent audience coverage than systems with fixed X° x Y° coverage patterns — projecting relatively more output to the rear of the audience to distribute sound evenly front-to-back, while having wide horizontal coverage close-up. Its innovative CDD driver achieves ‘point source’ summation of the LF and HF sections — eliminating off-axis variations in frequency response in the crossover region associated with non-coaxial designs. Improving on conventional coaxial designs, which can suffer from high-frequency beaming, the driver features a static waveguide that merges seamlessly with the unique cone shape — maintaining the dispersion pattern out to very high frequencies.

The visually-distinctive enclosure can be used in either horizontal (landscape) or vertical (portrait) orientation, with rotation of the driver easily accomplished by removing the screw-free, protective grille. The curved shape of the enclosure allows it to be surface-mounted close to a wall or ceiling by means of the supplied omni-directional bracket or an optional close-mount ceiling bracket.

CDD6TX-WR features a water and particle resistant grille made from zinc plated mild steel with powder coated finish and is suitable for operating temperatures between -20°C to +70°C and environmentally tested to meet IP54 .

Finished in black (RAL9005) or white (RAL9016) as standard, with any RAL colour to order. A full-range, passive two-way system, the CDD6TX-WR should be used with a compatible controller with appropriate limiter settings to provide system protection.

When used with the DX4.0 controller or an iKON amplifier, there are now enhanced DSP and FIR based pre-sets to deliver the absolute maximum performance and fidelity while limiter settings protect the integrity of the system.
